1. Basic Specification
new
FS13
CAL.
HIGH HAND
Push Buttons
SLANTED
Total height
5.10mm
Ligne
Overall diameter
Φ23.7mm×21.8mm
Case fitting diameter
Φ23.3mm×21.8mm
eye position is same as FS10/11
Date
Bateery & Life
<TIME STANDARD>
Type of quartz:
Frequency :
Accuracy :
< Balanceable weight of hand >
Minute hand Max. 0.4 μN.m
Second hand Max. 0.035 μN.m
Other small hands Max. 0.02 μN.m
< Function >
Chronograph 1/1 sec. Basis (Up to 59 min. 59 sec.)
Powercell Saving Reset Mechanism(PSRM)
Over-loading Compensation Device(OLCD)
Digital Frequency Control(DFC) for time adjustment
FS00 / FS01
normal hands
300μ
400μ
1200μ
CENTER HANDS
SMALL HANDS
Cal. FS13/14 FS23/24
HIGH HAND CHRONOGRAPH SERIES
new
FS14
HIGH HAND
PARALLEL
5.25mm
Φ23.7mm×22.0mm
Φ23.3mm×22.0mm
Tuning fork type quartz crystal
32,768Hz
±20 second / month
FS13 / FS14
300μ
400μ
1600μ
750μ
CENTER HANDS
new
new
FS23
FS24
HIGH HAND
HIGH HAND
SLANTED
PARALLEL
5.10mm
5.25mm
10 1/2'''
Φ23.7mm×21.8mm
Φ23.7mm×22.0mm
Φ23.3mm×21.8mm
Φ23.3mm×22.0mm
eye position is same as FS20/21
○
SR626SW 2YEARS *
*based on 1 hour/day chronograph use
worn under normal circumstances
FS23 / FS24
300μ
400μ
1200μ
1600μ
SMALL HANDS
CENTER HANDS
FS03
HIGH HAND
SLANTED
4.13mm
Φ23.7mm×21.8mm
Φ23.7mm×22.0mm
Φ23.3mm×21.8mm
Φ23.3mm×22.0mm
eye position is same as FS00/01
FS03 / FS04
350μ
400μ
1750μ
1200μ
SMALL HANDS
CENTER HANDS
FS04
HIGH HAND
PARALLEL
4.28mm
1300μ
SMALL HANDS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Citizen HIGH HAND CHRONOGRAPH Series
Summary of Contents for Citizen HIGH HAND CHRONOGRAPH Series

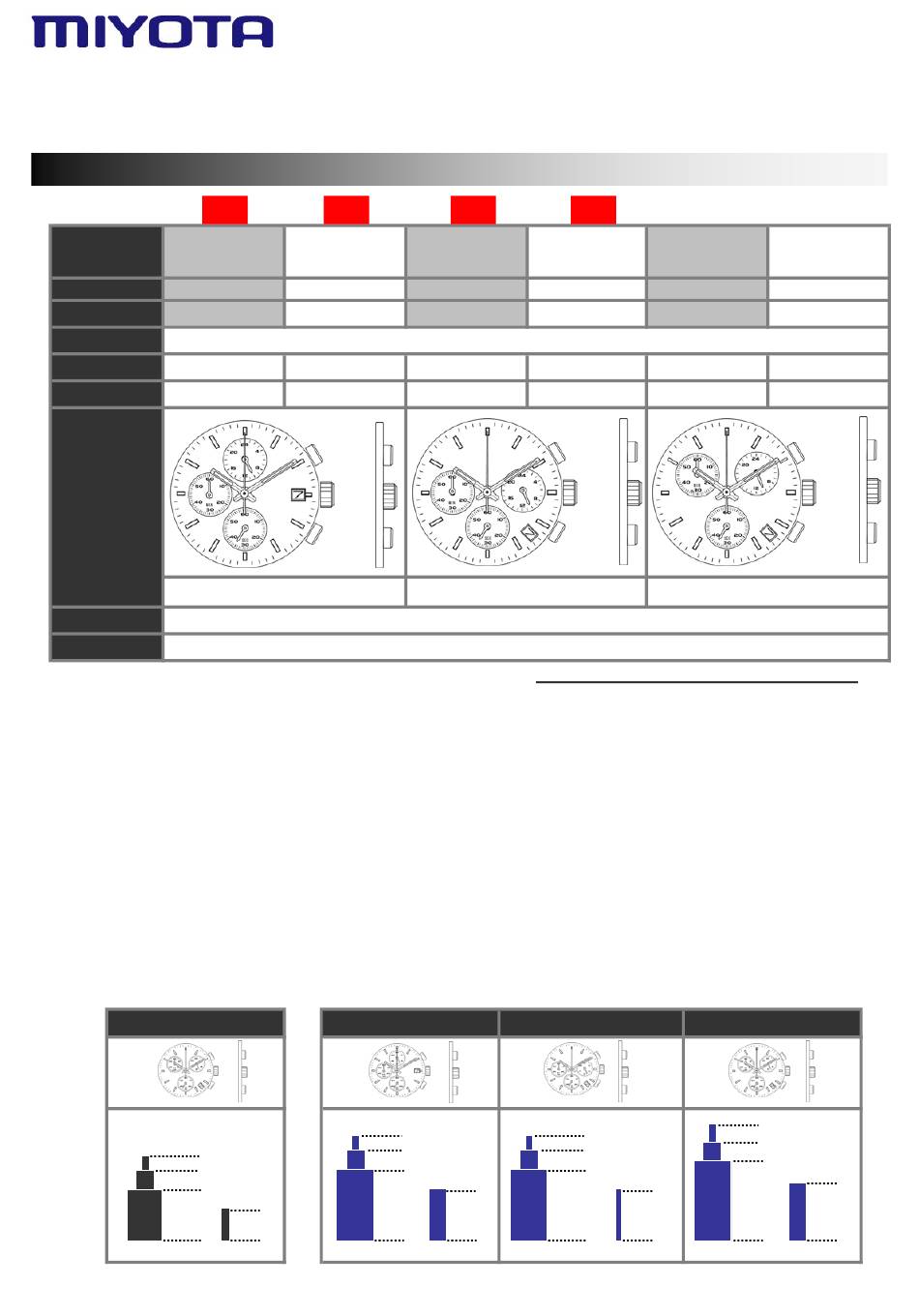

- Page 1 Cal. FS13/14 FS23/24 HIGH HAND CHRONOGRAPH SERIES 1. Basic Specification FS13 FS14 FS23 FS24 FS03 FS04 CAL. HIGH HAND HIGH HAND HIGH HAND HIGH HAND HIGH HAND HIGH HAND Push Buttons SLANTED PARALLEL SLANTED PARALLEL SLANTED PARALLEL Total height 5.10mm 5.25mm...
- Page 2 2. Separated Parts Setting stem 065- 549 ×1 Length from movement 20.00mm center to far end of setting stem Thread Ф0.9mm×9.06mm 3. Others * Measurement of time rate The unit(gate) time of measurement must be set at "10 sec." or integer fold value of 10 sec. owing to the DFC system, and the measurement must be performed in the form of complete watch.
- Page 3 4. Instruction Manual Chronograph 【Displays and Buttons】 Second Hand PB 1 24 Hour Hand Chronograph Minutes Hand 2st Click Position 1st Click Position PB 2 Small Second Hand Normal Position A) SETTING THE TIME 1. Pull the crown out to the 2nd Click Position. 2.
