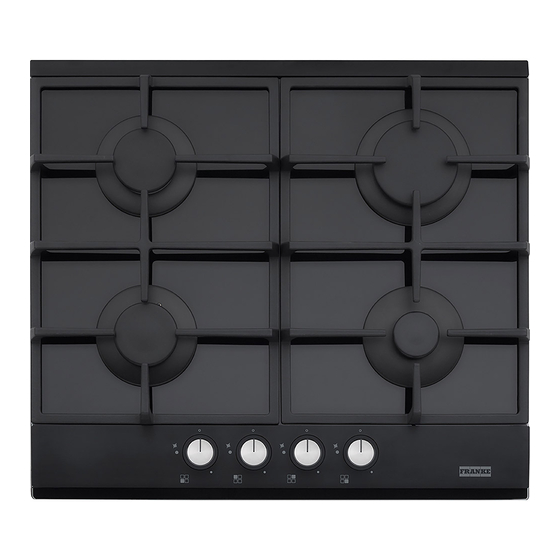

- Page 1 FCG604B1 FCG905B1 INSTRUCTIONS FOR USE AND INSTALLATION Gas Hob For service and spare parts please contact the Franke National technical service centre on (03) 9700 9100 LIB30726 R02-070417-1301801324...
- Page 3 Dear customer! This appliance is manufactured for household use. Our appliances are packed in the environmentally friendly materials which may be recycled, deposited or destroyed without any hazard to the environment. Such packaging materials are also labeled accordingly. Once the life cycle your appliance is over, make sure not to pollute the environment, and deliver it to the authorized collectors of old household appliances.
-
Page 4: Important Warnings
IMPORTANT WARNINGS The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. • Children shall be kept away unless continuously supervised. Prevent the children to hang around the appliance and warn them properly against the danger of burns. •... -
Page 5: Installation
INSTALLATION Important warnings WHEN THE APPLIANCE IS INSTALLED SO THAT THE BASE CAN BE TOUCHED, A PROTECTING SHIELD MUST BE FITTED. THIS SHIELD MUST BE AT LEAST 20 MM FROM THE LOWEST PART OF THE APPLIANCE AND BE CAPABLE OF WITHSTANDING THE APPLIANCE TEMPERATURES. Installation of the appliance into a kitchen worktop must be performed by an adequately qualified technician. - Page 6 60 mm min. 20 mm min. 80 mm min. 5 mm 25-40 mm min. 110 mm Gas inlet is located at the rear right 25mm from the edge FCG604B1 FCG905B1 590 mm 860 mm 520 mm 520 mm 560 mm...
-
Page 7: Connecting To The Power Mains
CONNECTING TO THE POWER MAINS The appliance may ONLY be connected by an authorized qualified technician. • Electric system protection should comply with all relevant regulations. • The connection clips can be accessed when the connection clip covers are opened / •... -
Page 8: Connecting To The Gas Supply
touch the appliance back wall, as this part will get very hot during operation. The following can be used for connection: Wiring diagram H05RR-F, 3x1.5mm² H07RN-F, 3x1.5mm² H05RN-F, 3x1.5mm² H05VV2V2-F, 3x1.5mm² H05VV-F, 3x1.5mm² LIVE BROWN EARTH GREEN / YELLOW NEUTRAL... - Page 9 Only use pipes and seals in accordance with the Standards. These pipes must be installed so that, when fully extended, their length does not exceed 2000 mm. For easier installation and to prevent gas leaks, attach the swivel coupling to the appliance first, and then to the gas mains pipe.
-
Page 10: Technical Informations
TECHNICAL INFORMATIONS FCG604B1 FCG905B1 A: Auxiliary SR: Semirapid R: Rapid TC: Tiple Burner Total kW 7.5 kw 11.3 kW Nominal Gas 27 Mj/h (NG) 40.7 Mj/h (NG) Consumption Category gas usage Natural gas 1.0 kPa or Universal LPG 2.75 Operating voltage 220-240 V~ ;... - Page 11 supports and burner caps are correctly positioned before using the appliance. Do not place large pans on the burners near the control knobs. These may be damaged • by the very high temperatures. Never use two burners or heat sources to heat one single pan. •...
-
Page 12: Operation
OPERATION Control Knob Ignition and operation of the burners User’s instructions This appliance must be used for the purpose it was designed for, i.e. domestic cooking. Any other use is considered to be improper and therefore dangerous. The manufacturer will accept no liability for any damage caused by improper, incorrect or irrational use. -
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE Do not use a steam cleaning appliance to clean this appliance. The steam could reach the electrical components and cause a short circuit. The appliance should be cleaned regularly, preferably after each use, after cooling down. • To avoid water marks and limescale deposits, use a soft cloth to dry surfaces that have •... - Page 14 Glass surface After each use of the glass surface, wait for it to cool down and clean it; otherwise, even the smallest food residue will be burnt onto the hot surface next time you use the appliance. For regular cleaning and maintenance of the glass surface, use special conditioning agents that form a protective layer on the surface, shielding it from dirt.
-
Page 15: Problem Solving Guide
PROBLEM SOLVING GUIDE During the warranty period, only a service center authorized by the manufacturer may carry out any repairs. • Before making any repairs, make sure the appliance is disconnected from the power mains either by removing the fuse •... - Page 17 Franke S.p.A. via Pignolini, 2 37019 Peschiera del Garda (VR) www.franke.it 1301801324_Rev.2_20.12.2019...
