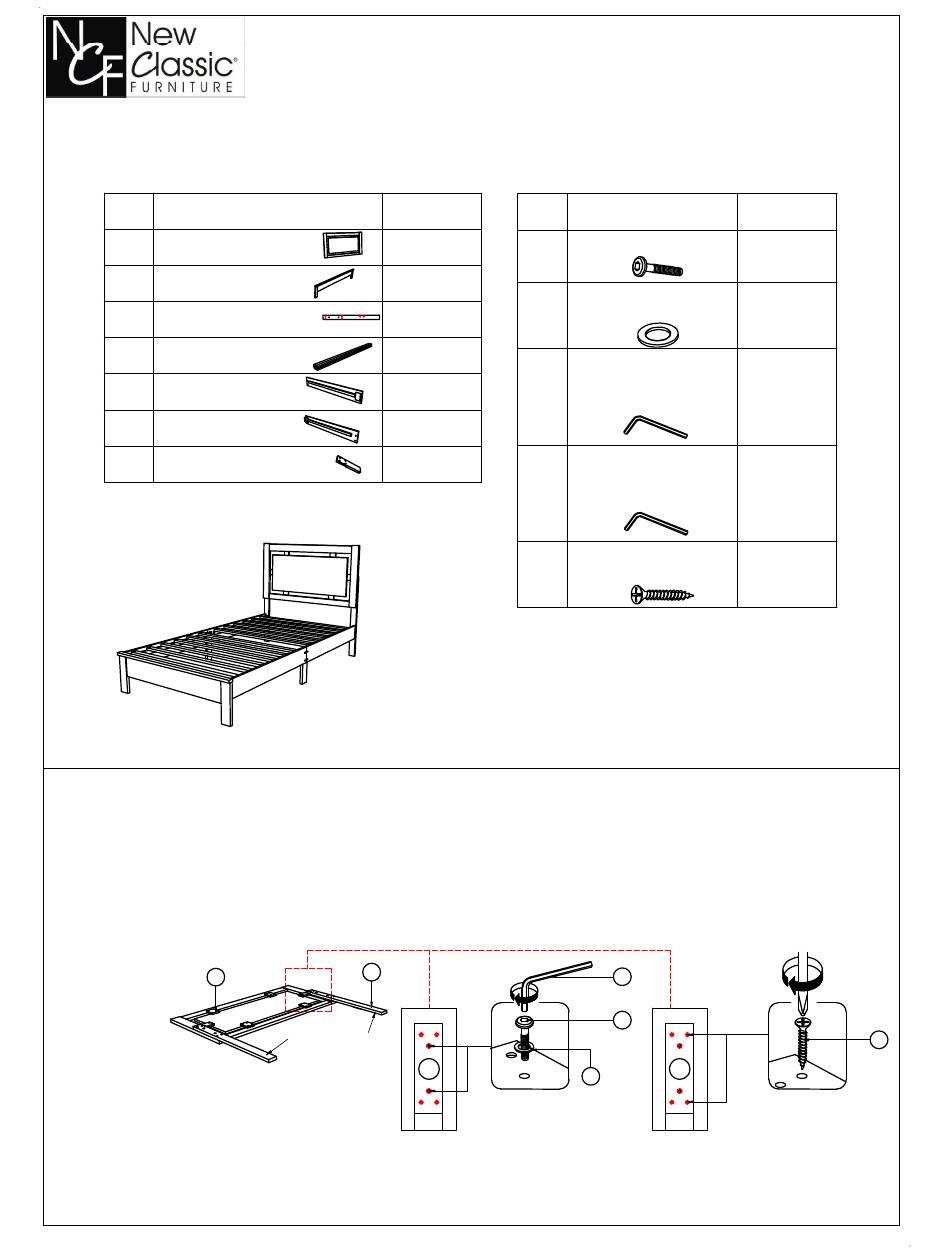

New Classic Furniture B1563-500 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the parts list and/or hardware list shown.
PARTS LIST
No
A Headboard
B Footboard
C Headboard Leg(L&R)
Bed Roll-Out Slats
D
Side Rail Left
E
Side Rail Right
F
G Side Rail Leg
Attach Head Board Leg ( C ) to Head Board ( A ) as shown using JCBC BOLT( 1 )with
STEP 1.1 :
Flat washer (2)and securing with ALLEN KEY ( 3 ) .
STEP 1.2 : Fix the other holes with Csk Screw (5) as shown.
A
NOTE : MUST TIGHTEN SCREWS PERIODCALLY WITH USE SCREW WILL BECOME LOOSE CHECK TIGHTNESS OF ALL SCREW EVERY 6-8 WEEKS.
ASSEMBLY INSTRUCTIONS

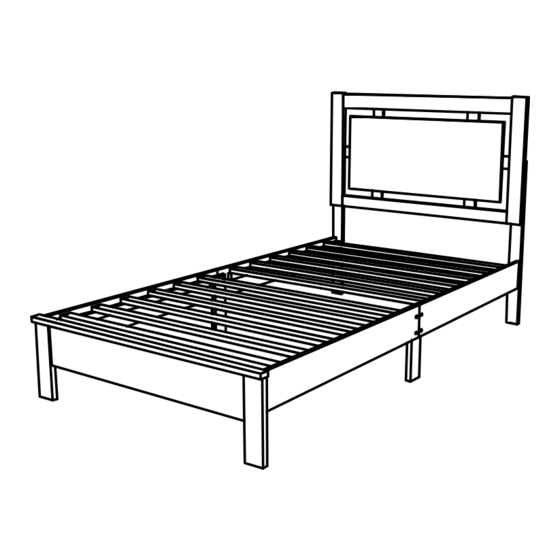

B1563-500 GEMINI 3/3 T PANEL BED-HB/FB/RAILS
ITEM Qty
1 pc
1 pc
2 pcs
2 sets
2 pcs
2 pcs
2 pcs
C
RIGHT LEFT
BACK VIEW
STEP 1.1 :
No
JCBC M6 x 30mm
1
Flat Washer 1/4"ID x
2
m4x65mm Blk
3
(FOR HB LEG)
m5x65mm Blk
4
(FOR SIDE RAIL)
Flat Head Chipboard
5
Screw m4x32mm Rbw
C
2
4x
HARDWARE LIST
ITEM Qty
12 pcs
12 pcs
19mmOD Blk
ALLEN KEY
1 pc
ALLEN KEY
1 pc
32 pcs
3
1
C
STEP 1.2 :
5
8x
1 OF 2
