RX-PAD Meeting Room Controller
1. Introduction
Thank you for purchasing AudioCodes RX-PAD Meeting Room
Controller!

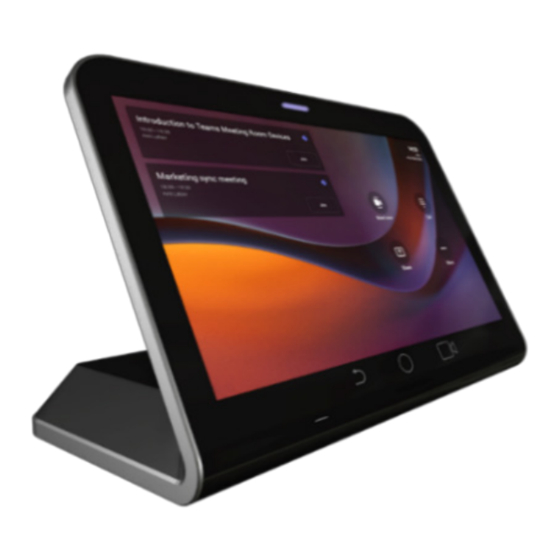

RX-PAD is a center-of-room intelligent touch controller that
provides quick and complete access to AudioCodes meeting
room solutions. It enables capabilities such as one-click
collaboration initiation with an integrated calendar, simple
content sharing and camera adjustments, and much more, all
while retaining a modest footprint on the conference room
table.
The RX-PAD leverages plug-and-play simplicity to provide a
productive and familiar Microsoft Teams meeting experience,
requiring only a Power-over-Ethernet (PoE) cable for quick installation.
See
here
for detailed information.
2.
Shipped Items
Make sure you received the following items in the shipped box:
✓
RX-PAD
✓
Ethernet cable
✓
12V 2A Power Adapter (100-240).
For Wi-fi connectivity, you must use a power adapter.
3. Positioning

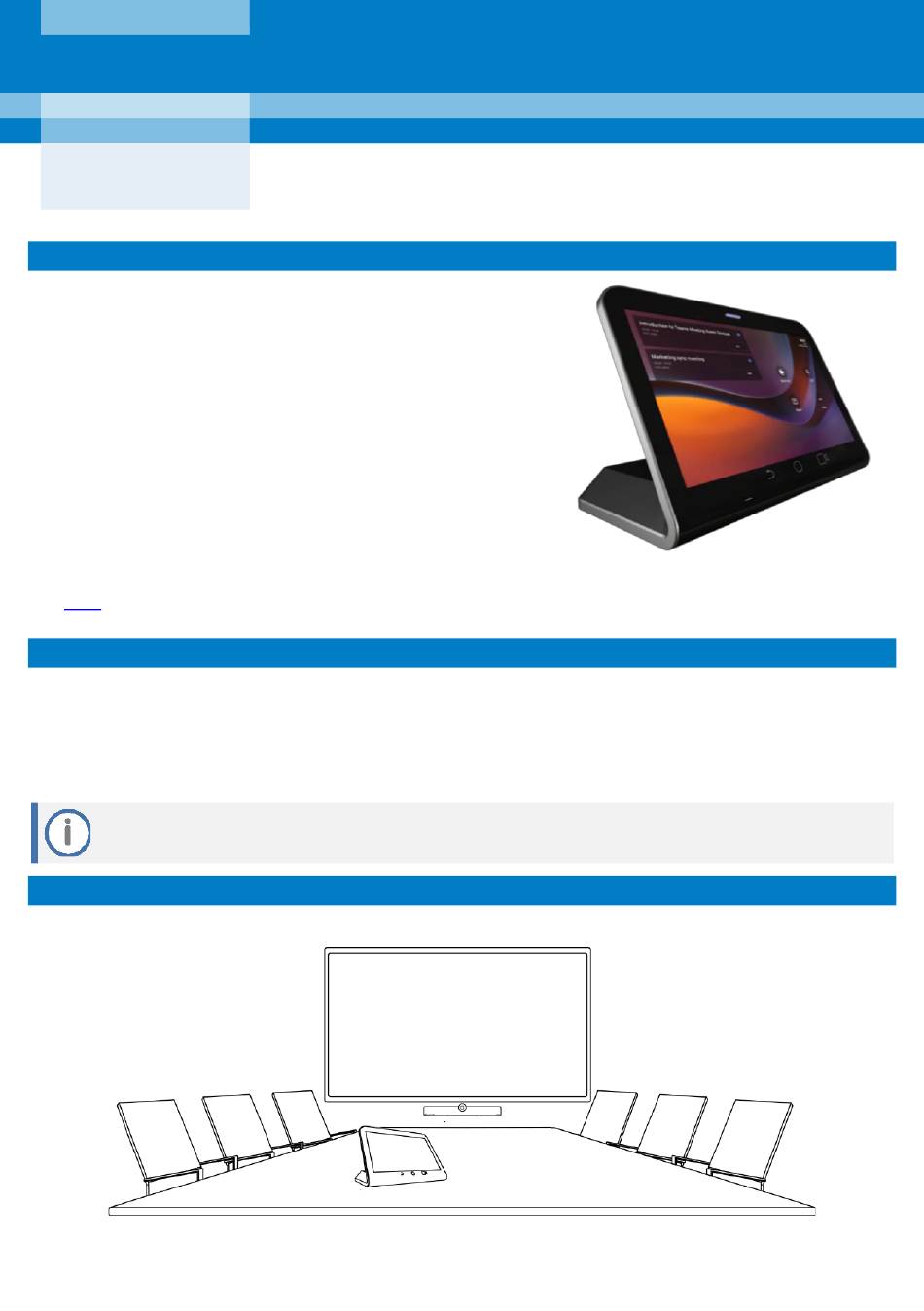

Position RX-PAD on the table for optimal management. Use this figure as reference.
Quick Guide
