Assembly Instructions

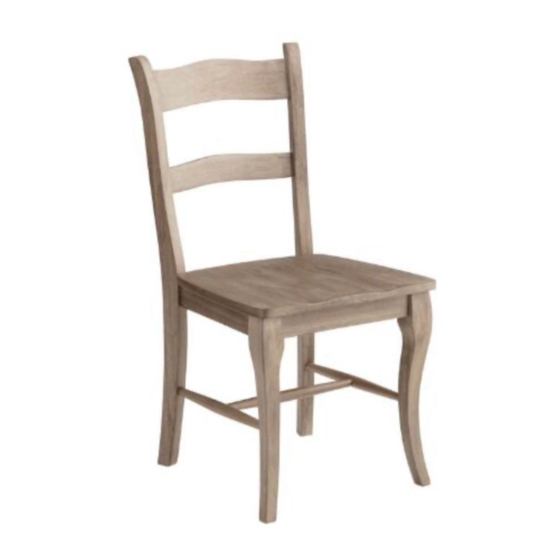

JOZY DINING CHAIR
SKU–526102
THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST WORLD MARKET STORE.
IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877- 967-5362 FOR ASSISTANCE.
ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT FOR COMMERCIAL
USE AND ARE INTENDED FOR RESIDENTIAL USE ONLY
2022.09.01
Page 1
Advertisement
Table of Contents
Related Manuals for World Market JOZY 526102
Summary of Contents for World Market JOZY 526102
- Page 1 IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877- 967-5362 FOR ASSISTANCE. ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT FOR COMMERCIAL USE AND ARE INTENDED FOR RESIDENTIAL USE ONLY 2022.09.01...
- Page 2 Component List LABEL DESCRIPTION Chair Back Seat Left Front Leg Right Front Leg Center Stretcher Side Stretcher Page 2...
- Page 3 Hardware List LABEL DESCRIPTION Flat Washer 1.2mm.xD.8mm. Lock Washer 1.2mm.xD.8mm. KD. Screw (SHORT) M6x40mm KD. Screw (LONG) M6x80mm Wood Screw (SHORT) 16mm. Wood Screw (LONG) 38mm. Tool List DESCRIPTION LABEL Hex Wrench Key Wrench Phillips Screwdriver Page 3...
- Page 4 • Assemble on a clean non-marring surface (packing foam)- • Save all packaging until finished- • In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362. Page 4...
- Page 5 Assembly Steps Step 1 (H-1) Flat Washer x 7 (H-2) Lock Washer x 7 (H-4) KD. Screw (Short) x 3 (H-5) KD. Screw (Long) x 4 (T-1) Hex Wrench x 1 Step 2 (H-6) Wood Screw (Short) x 2 Phillips Screwdriver Step 3 Page 5...
- Page 6 Assembly Steps Step 4 (H-1) Flat Washer x 4 (H-2) Lock Washer x 4 (H-3) Nut x 4 (T-1) Key Wrench x 1 Step 5 (H-7) Wood Screw (LONG) x 4 Page 6...
- Page 7 • Do not write on furniture without a padded barrier to protect the surface. • Do not place furniture outside. For indoor use only. • All products sold at World Market are not for commercial use are intended for residential use only.
