Assembly Instructions

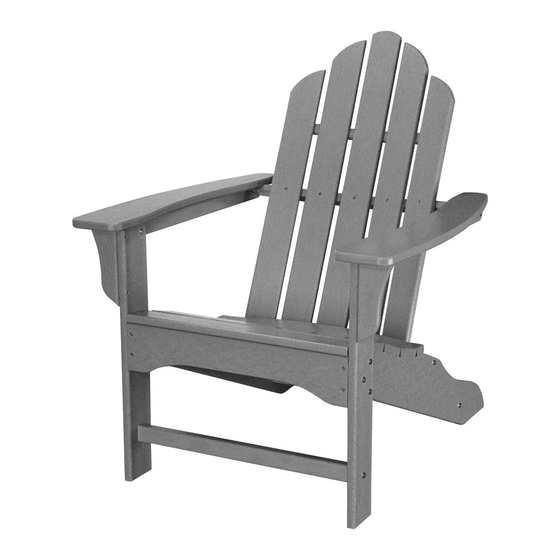

Adirondack Chair
SKU
502422, 518826, 551931, 551932, 551933,
597227, 608549, 608550, 608551, 608555
THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST COST PLUS WORLD MARKET STORE.
IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
NOT FOR COMMERCIAL USE
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for World Market 502422
Summary of Contents for World Market 502422
- Page 1 THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT THE NEAREST COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
- Page 2 Component List LABEL PICTURE DESCRIPTION Seat Slat Seat Left Leg Right Leg Backrest Left Armrest Right Armrest Hardware List LABEL PICTURE DESCRIPTION Allen Bolt M6 x 35mm Spring Washer 1 x 7/10mm Flat Washer 1 x 6.5/14mm Wood Dowel 8 x 20mm Tool List LABEL PICTURE...
- Page 3 Assembly Preparation Before Beginning: Unpack all hardware bags and components to ensure you have all parts- Read instructions, cover to cover- Have 2 adults on hand for assembly- Do not assemble on flooring or carpet- Assemble on a clean non-marring surface (packing foam)- ...
- Page 4 Assembly Steps Note: Do not fully tighten any bolts until the last step. Step 1 (H-1) Allen Bolt x 2 (H-4) Wood Dowel x4 (T-1) Allen Key Place Right Armrest (K) onto a non-marring surface with the pre-drill holes facing up. Insert 2 Wood Dowels (H-4) into the parallel pre-drilled holes as shown.
- Page 5 Assembly Steps Step 3 (H-1) Allen Bolt x6 (H-2) Spring Washer x6 (H-3) Flat Washer x6 (T-1) Allen Key Attach the Right Leg (D) to the assembled Seat (B) and secure using 3 Allen Bolts (H-1), Spring Washers (H-2) and Flat Washers (H-3), stacking the hardware in the order as shown. Engage the bolts using Allen Key (T-1) but do not fully tighten them.
- Page 6 Assembly Steps Step 5 Fully tighten ALL Allen bolts from Steps 1-4 at this time using Allen Key (T-1). Do not over- tighten bolts. Carefully turn the assembly upright and the chair is now ready for use. Care & Maintenance ...
