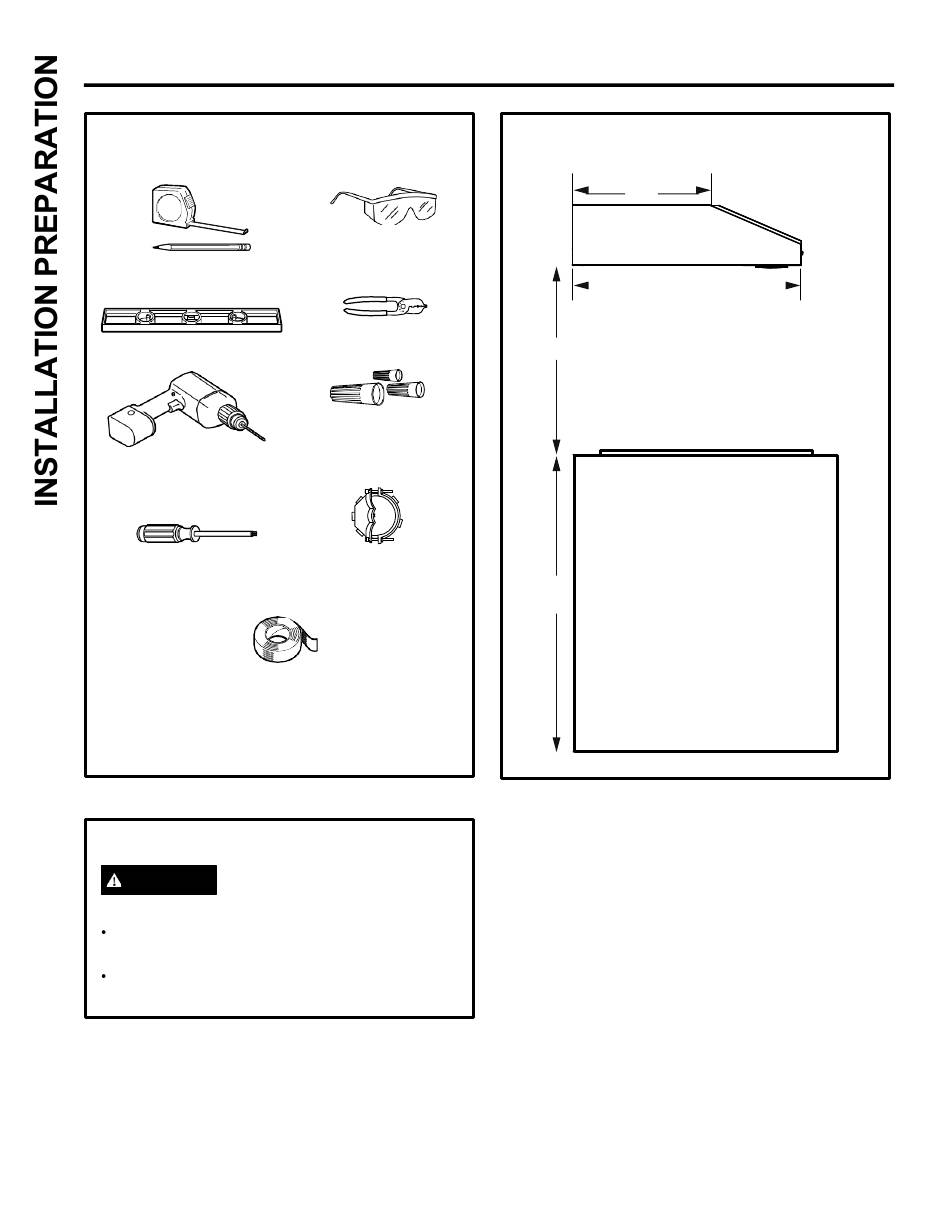

TOOLS AND MATERIALS REQUIRED

(NOT INCLUDED)
Pencil and tape measure
Spirit level
Electric drill, #2 Phillips,
flat head, and ⁄ " drill bit
9
32
Torx 10, 15, 20
driver
Aluminized
Duct tape

REMOVE THE PACKAGING

CAUTION
Wear gloves to protect against
sharp edges.
Remove the hardware bag, literature package and
other boxed parts.
Remove and properly discard the protective plastic
wrapping and other packaging materials.
Installation Preparation
Safety glasses
Wire cutter/stripper
UL listed wire nuts
Strain relief for
junction box

INSTALLATION DIMENSIONS

12"
X = Distance from hood to cooktop
X
(varies depending on installation)
Required Min. = 24"
Recommended Max. = 30"
34"-36"
Typical
1" = 2.5 cm; 1' = 0.3 m
10
