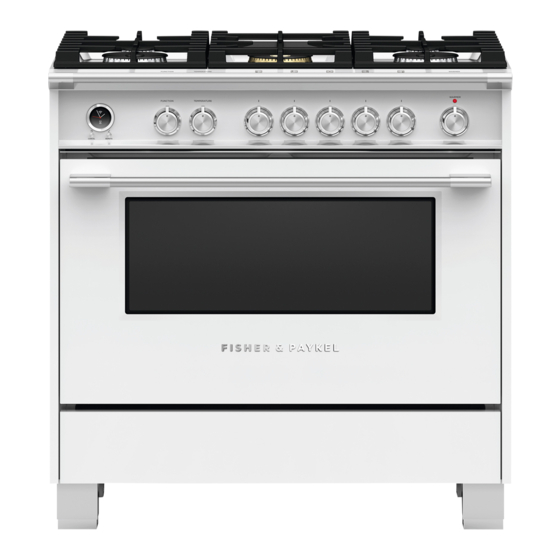

Fisher & Paykel OR36S Installation Manual
Freestanding range
Hide thumbs
Also See for OR36S:
- Installation manual (2 pages) ,
- Installation manual (57 pages) ,
- Installation manual (57 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Fisher & Paykel OR36S
Summary of Contents for Fisher & Paykel OR36S
- Page 1 FREESTANDING RANGE OR36S Gas & OR36S Dual Fuel models INSTALLATION GUIDE US CA...
- Page 2 WARNING! If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Page 3 SAFETY AND WARNINGS The product data plate is attached below the bottom drawer. WARNING! To check the label, it is necessary to remove the drawer (see ‘Setting the pressure regulator’ for instructions on drawer removal). Electrical shock hazard Before carrying out any work on the electrical section of the appliance, it must be disconnected from the mains DATA PLATE electricity supply.
- Page 4 SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS! GENERAL INSTALLATION INFORMATION Installation in manufactured (mobile) home Installation must conform with the Manufactured Home Construction and Save these instructions for the local inspectors use. Safety Standard, Title 24 CFR, Part 3280 [formerly the Federal Standard To avoid hazard, follow these instructions carefully before installing or using this appliance.
- Page 5 PARTS SUPPLIED FOR INSTALLATION Anti-tip Small Bolt (1) Threaded Wood Screws Pressure 1/2" (12.7mm) Gas extension Gas extension Ground lead* Cupped washer* bracket (1) screws & nuts (2) screws (8) and plastic regulator (1) NPT connector pipe support pipe and (3 wire permanent (4 wire permanent washers...
- Page 6 MODEL IDENTIFICATION Model features may vary 36" GAS GAS MODELS 36" DUAL FUEL MODELS OR36SCG4 OR36SCG6 OR36SDG4 OR36SDG6 PRIOR TO INSTALLATION Unpacking and handling Inspect the range to verify that there is no shipping damage. If any damage is detected, call the shipper and initiate a damage claim. Fisher & Paykel is not responsible for shipping damage. DO NOT discard any packing material until the range has been inspected.
- Page 7 PRODUCT DIMENSIONS Note: Model features may vary Optional kickstrip is available (purchased separately) FRONT PROFILE OR36S GAS GAS OR36S DUAL FUEL PRODUCT DIMENSIONS INCHES INCHES A Overall height of product (from floor to top of cooktop, min 35 3/8 min 898...
- Page 8 The same FRONT clearances apply to island installations. The range can be placed in various positions OR36S GAS GAS OR36S DUAL FUEL with respect to the cabinet front, with the CLEARANCE DIMENSIONS control panel either flush or projecting,...
- Page 9 FITTING THE OPTIONAL BACKGUARD LOCATION OF ELECTRICAL & GAS SUPPLY Island trim and backguard Grounded outlet (Gas Gas) It is mandatory to install and use the appliance with either the island trim or the optional backguard The electric cord with correctly in place.
- Page 10 VENTILATION REQUIREMENTS A suitable ventilation hood may be installed above the range. Fisher & Paykel has a choice of ventilation hoods designed to match the rest of our kitchen appliance family. See fisherpaykel.com or your local dealer for more details. IMPORTANT Consult local building codes and/or local agencies, before starting, to ensure that hood and duct installation will meet local requirements.
- Page 11 INSTALLING FOOT COVERS (OR90 MODELS) SIMPLIFIED FITTING THE ADJUSTABLE FEET INSTALLING FOOT COVERS (OR90 MODELS) SIMPLIFIED INSTALLING FOOT COVERS (OR90 MODELS) SIMPLIFIED INSTALLING FOOT COVERS (OR90 MODELS) SIMPLIFIED INSTALLING FOOT COVERS (OR90 MODELS) SIMPLIFIED INSTALLING FOOT COVERS (OR90 MODELS) SIMPLIFIED Fitting the adjustable feet Fitting the adjustable (front) feet covers (optional) The adjustable feet must be fitted to the base of the range before use.
- Page 12 FITTING THE ADJUSTABLE FEET Fitting the adjustable (rear) feet covers (optional) If installing rear feet covers use the following instructions to attach the mounting brackets to the base of the range. Washers 1 Remove screws A, B and C from 2 Replace screw C with one of the 3 Attach the mounting bracket to 4 Secure covers to brackets using the...
- Page 13 INSTALLING THE COOKTOP FRONT GUARD INSTALLING THE ANTI-TIP BRACKET Models without hob rail only The anti-tip bracket has two components: To increase the clearance between the front edge of the cooktop and the adjustable bracket the burners it is possible to install the cooktop front guard supplied with the appliance. the stability bracket IMPORTANT! IMPORTANT...
- Page 14 INSTALLING THE ANTI-TIP BRACKET 3 Fix the stability bracket in place. It can be fixed as follows: To the floor OR on the rear wall by #4 screws (supplied). To the floor AND on the rear wall by #8 screws (supplied). There are 8 x wood screws and 8 x screws with plastic sleeve anchors supplied with the range in two separate kits.
- Page 15 ELECTRICAL CONNECTION OR36 Dual Fuel models ONLY OR36 Gas Gas models ONLY WARNING! If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that Be sure that the electrical connection and wire size are adequate the ground path is adequate.
- Page 16 ELECTRICAL CONNECTION 4-Wire Connection 3-Wire Connection (using supplied Ground lead) PERMANENT CONNECTION (HARD WIRING) 1 Loosen the L1 (black), L2 (red) and neutral (white) screws. 1 Loosen the L1 (black), L2 (red) and neutral US only, for Canada it is mandatory to connect the range (white) screws.
- Page 17 GAS CONNECTION Gas requirements Manual shut-off valve All gas connections must be made according to national and local codes. A manual shut-off valve must be installed Shut-off valve ‘open’ position The gas supply (service) line must be the same size or greater than the inlet in an accessible location in the gas line line of the appliance.
- Page 18 GAS CONNECTION Gas connection specification IMPORTANT! Check the correct positioning of the gas regulator. The arrow on the back of the gas regulator must be oriented toward the connector. To range Range manifold 1/2" G cylindrical Manifold male (ISO 228-1) male pipe fitting Gasket 1/2"...
- Page 19 GAS CONNECTION Pressure regulator installation All heavy duty, commercial type cooking equipment must have a pressure regulator on the incoming service line for safe and efficient operation, since service pressure may fluctuate with local demand. The regulator supplied with this range must be installed before any gas connections are made.
- Page 20 GAS CONNECTION 4 Connect the extension pipe and pressure regulator group to the range gas manifold 5 Fix the extension pipe support bracket onto the back of the range using the two ensuring the supplied gasket is positioned between. The regulator cover must be supplied screws.
- Page 21 PRESSURE TESTING Manifold pressure should be checked with a manometer using the following instructions: 1 Remove the injector from the rear left (or rear right) burner and mount the test point adapter (available from the After-Sales service). 2 Turn the burner control knob to the maximum position. TEST POINT ADAPTER 3 Press the knob and keeping it pressed check the manifold pressure with a manometer.
- Page 22 GAS CONVERSION Conversion to LP/Propane Gas Pressure regulator This range can be used with NATURAL or LP/PROPANE gas. It is shipped from the factory adjusted for use with NATURAL gas. Any conversion required must be performed by your dealer, a qualified licensed technician or gas service company.
- Page 23 GAS CONVERSION Replacing the cooktop burner injectors Injectors table Remove the pan supports, the burner caps and the flame spreaders. LP/PROPANE NATURAL GAS Using a wrench substitute the nozzle injectors with those most suitable for the kind of NOMINAL REDUCED 11"...
- Page 24 GAS CONVERSION Adjusting the cooktop burner minimums When switching from one type of gas to another, the minimum flow rate must also be correct: Regulation The flame should not go out even when passing suddenly from screws maximum to minimum flame. To regulate the flame follow these instructions: Semi-rapid burner ( Light the burner...
- Page 25 GAS CONVERSION (GAS GAS MODELS ONLY) Replacing the lower oven burner injector Ignition electrode Anchorage clip Anchorage clip Safety valve probe 1 Lift and remove the lower panel inside the oven. Injector 2 Gently unlock, the safety valve probe (V) and the ignition electrode (E) from the burner.
- Page 26 GAS CONVERSION (GAS GAS MODELS ONLY) Replacing the oven broil burner injector Anchorage clip Safety valve probe Ignition electrode Anchorage clip 1 Gently unlock, the safety valve probe (V) and the ignition electrode (E) from Injector the burner. Take care not to damage the probe and the ignition electrode. 2 Unscrew and remove the burner securing screw (A).
- Page 27 GAS CONVERSION (GAS GAS MODELS ONLY) Adjusting the lower oven burner minimum 1 Turn on the burner by setting the oven dial the highest temperature setting. 2 Remove the dial and unscrew the by-pass screw A about three times by passing a small flat screwdriver (Ø1/8"...
- Page 28 FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER GENERAL OPERATION Placement of unit. All internal packing materials removed. Check below the cooktop grates and inside the oven. Specified clearance maintained to cabinet surfaces. If used on LP gas, verify that the pressure regulator, cooktop burner injectors and Unit Level –...
