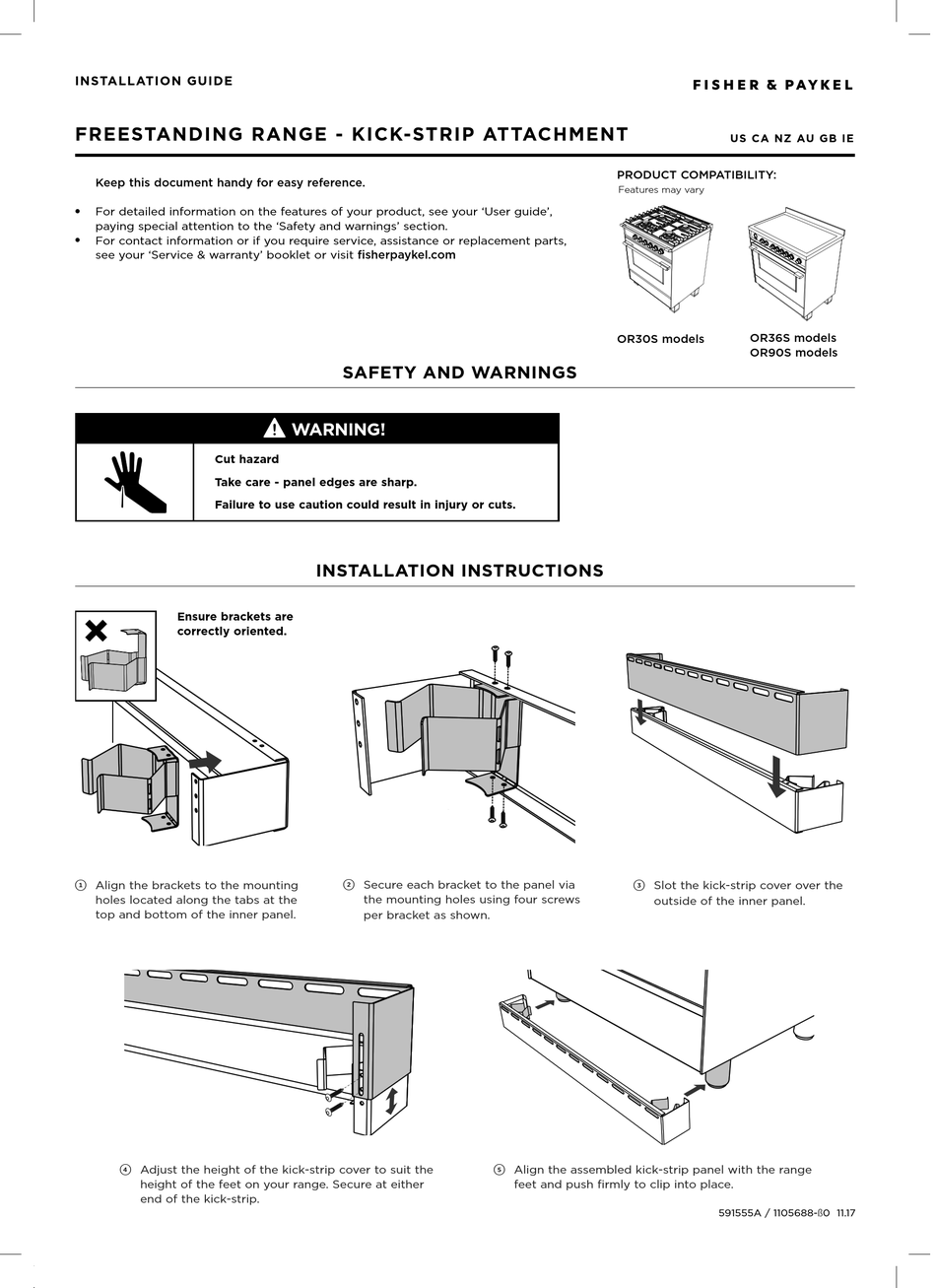

INSTALLATION GUIDE
FREESTANDING RANGE - KICK-STRIP ATTACHMENT
Keep this document handy for easy reference.
For detailed information on the features of your product, see your 'User guide',
z z
paying special attention to the 'Safety and warnings' section.
For contact information or if you require service, assistance or replacement parts,
z z
see your 'Service & warranty' booklet or visit fisherpaykel.com
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
Ensure brackets are
correctly oriented.
Align the brackets to the mounting
1
holes located along the tabs at the
top and bottom of the inner panel.
Adjust the height of the kick-strip cover to suit the
4
height of the feet on your range. Secure at either
end of the kick-strip.

SAFETY AND WARNINGS

WARNING!

INSTALLATION INSTRUCTIONS

Secure each bracket to the panel via
2
the mounting holes using four screws
per bracket as shown.

PRODUCT COMPATIBILITY:

Features may vary

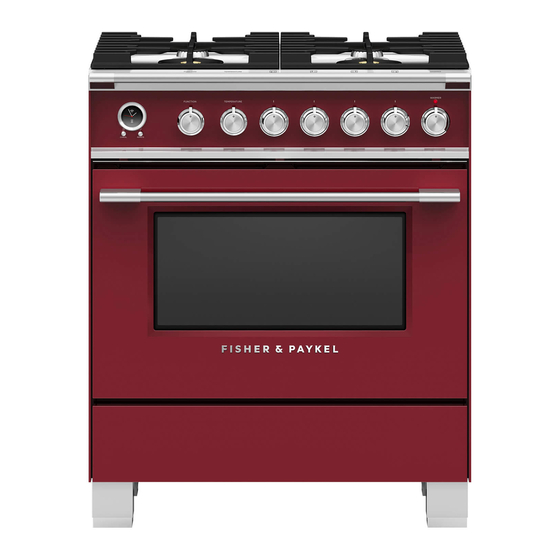

OR30S models
Slot the kick-strip cover over the
3
outside of the inner panel.
Align the assembled kick-strip panel with the range
5
feet and push firmly to clip into place.
US CA NZ AU GB IE
OR36S models
OR90S models
591555A / 1105688-ß0 11.17
