- Page 1 USER GUIDE X RANGE WATERPROOF LITHIUM BATTERIES...
-
Page 2: Table Of Contents
CONTENTS Key Features General Specifications Safety Wiring Diagram Discharge Curve Optimising your Charging Safe Mode Storage Installation Transporting Certifications & Warranty Contact Us Back page... -
Page 3: Key Features

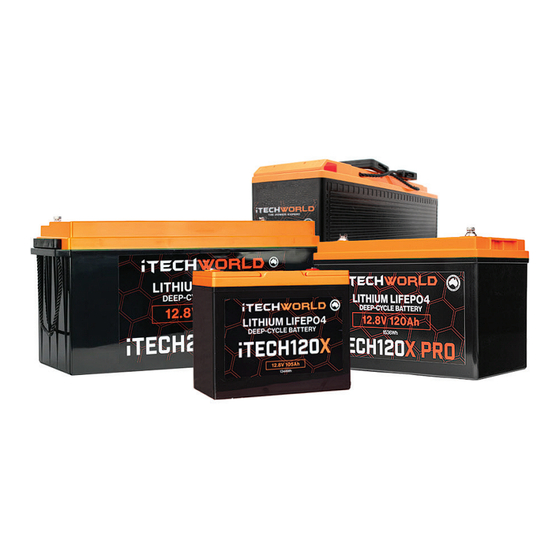

KEY FEATURES: The iTechworld X Range represents the pinnacle of deep cycle lithium battery design. These batteries are equipped with a pre-installed Battery Management System that enables compatibility with a wide range of charging systems, making them well-suited for use in boats, caravans, motor-homes, RVs, and more. With an IP67 rating, they are also waterproof and dustproof, making them suitable for under-the-bonnet use. -
Page 4: General Specifications
Life Cycles @ 80% Depth of Discharge 5,000 Life Cycles @ 40% Depth of Discharge 10,000+ Terminal Type Case Material For more information on specifications please visit our website and select your iTechworld X Range battery. Scan to visit our website... -
Page 5: Safety
SAFETY For safe operation and optimal performance, of your iTechworld X Range battery, it must be operated correctly. Please carefully read, understand, and follow all instructions and guidelines in this user guide. Failure to follow these instructions may result in damage to the unit, property, death, or serious injury. -
Page 6: Wiring Diagram
WIRING DIAGRAM COMPLETE LITHIUM CARAVAN KIT COMPLETE LITHIUM CARAVAN KIT: WIRING DIAGRAM Cables used to link batteries and Cable B- to Battery 1 must be the same guage (or better) as the cables used for connecting loads. E.g 3000W All positives from load Inverter requires 0 AWG, then all cables must be atleast 0 AWG. -
Page 7: Discharge Curve
DISCHARGE CURVE Please note that a lithium battery' s discharge curve will differ from your previous lead acid batteries. Please study the discharge curve to better understand how the lithium battery will perform. X Range Discharge Curve 0.1C Load 15.0 14.0 13.0 12.0... -
Page 8: Optimising Your Charging
In the event that any of these safety features are activated, the iTechworld lithium battery will drop into safe mode, rendering it temporarily unusable until it is brought out of safemode. - Page 9 Connect the iTechworld battery in parallel to a different battery (number 2) • Connect an ACDC charger to the iTechworld battery at the same time as the paralleled battery and allow it to begin charging. We recommend a three stage 20 amp or higher charger.
-
Page 10: Storage
Allow the charger to fully charge the battery. STORAGE When your iTechworld X range battery is not in use, it is recommended to completely isolate the battery, charge it up to 13.5V and check the voltage every 3 months, then charging the battery as needed. To ensure your battery is completely isolated, it' s essential to disconnect it from any connected devices or systems. -
Page 11: Transporting
IEC: 62133 ROHS WARRANTY Your iTechworld X Range battery is covered by a warranty for a total duration of 5 years. This warranty is divided into two phases: 3 Years Full Replacement: During the fi rst 3 years from the date of purchase, if your battery experiences any manufacturing defects or failures, we will provide a full replacement at no cost to you. - Page 12 To make a warranty claim, please contact our customer service team for assistance (service@itechworld.com.au). The warranty is applicable to the original purchaser and is not transferable. We are committed to providing you with a reliable and long-lasting battery. If you have any questions or need assistance regarding your warranty, please do not hesitate to reach out to us.
- Page 13 WARNING: Do not use the battery to connect equipment if there is a defect. WARNING: Do not disassemble or modify the battery; doing so will result in your warranty being void, it may result in a risk of electrical shock, fire, death, or serious injury. WARNING: Never smoke or allow a spark or flame in the vicinity of the battery.
-
Page 14: Contact Us
When it comes to energy storage and creation at iTechworld, we take pride in being one of the biggest names in the industry. Based in Australia, we are a family-owned and operated business. With many more innovative products on the horizon we are committed to constantly raising the bar to provide bigger and better benefi ts to all our customers Australia-wide.
