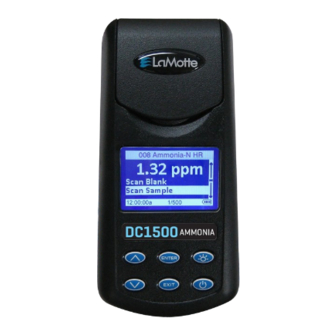

LaMotte DC1500 AMMONIA Manual

Ammonia colorimeter kit
Hide thumbs Also See for DC1500 AMMONIA:
Table of Contents

Advertisement

Quick Links

Download this manual
DC1500
AMMONIA
Ammonia Colorimeter Kit
Code 3241

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC1500 AMMONIA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LaMotte DC1500 AMMONIA

Summary of Contents for LaMotte DC1500 AMMONIA

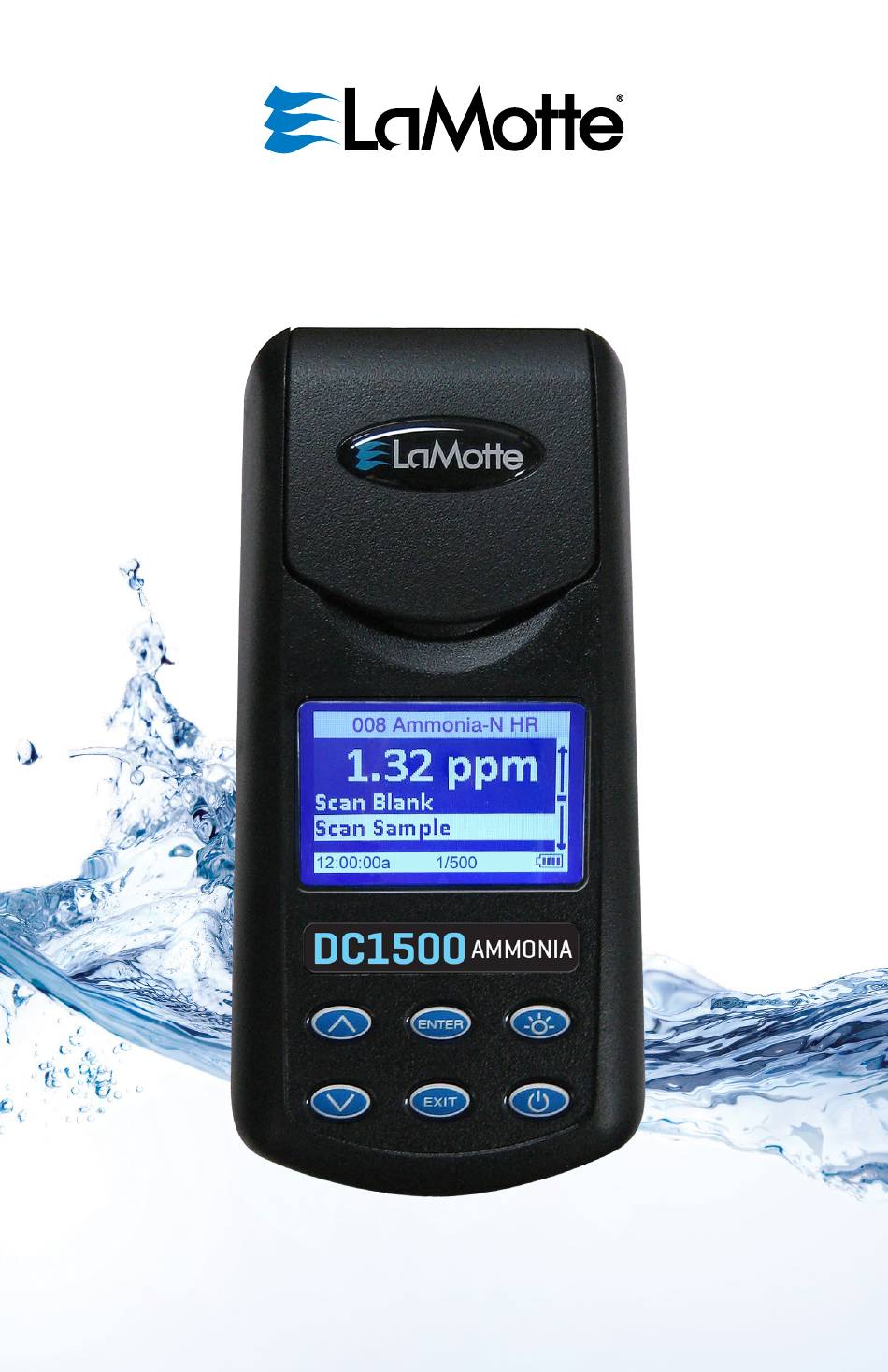

  • Page 1 DC1500 AMMONIA Ammonia Colorimeter Kit Code 3241...

  • Page 2: Table Of Contents

    CONTENTS DC1500 Ammonia Nitrogen Kit „ Kit Contents .................................3 „ Accessories .................................3 Test Method Specifications „ Introduction .................................3 „ Application ...................................3 „ Range.....................................3 „ Method ..................................3 „ Handling & Preservation ............................3 „ Interferences................................4 Analysis „ Ammonia Nitrogen ..............................4 Calibration „ Standards..................................6 „...

  • Page 3: X84; Kit Contents

    DC1500 AMMONIA NITROGEN KIT „ KIT CONTENTS QUANTITY CONTENTS CODE 30 mL Ammonia Nitrogen Reagent #1 V-4797-G 3 x 30 mL *Ammonia Nitrogen Reagent #2 *V-4798-G Pipet, 1 mL Plastic 0354 Colorimeter Tubes, w/caps,set of 6 0290-6 Water Sample Collecting Bottle...

  • Page 4: Analysis

    ANALYSIS PROCEDURE Fill the Water Sample Collecting Bottle (0688) with sample water. Main Menu Press and hold until colorimeter turns on. Testing Menu Editing Menu 12:00:00 001/500 All Tests Press to select Testing Menu. ENTER 008 Ammonia-N HR 12:00:00 001/500 Scroll to and select 008 Ammonia-N HR 008 Ammonia-N HR from menu.
  • Page 5 Remove tube from colorimeter. Add 8 drops of Ammonia Nitrogen Reagent #1 (V-4797). Cap and mix. Use 1.0 mL pipet (0354) to add 1.0 mL of *Ammonia Nitrogen Reagent #2 (V-4798). Cap and invert to mix. Wait 5 minutes for full color development.

  • Page 6: X84; Ammonia Nitrogen

    CALIBRATION PROCEDURE Main Menu Press and briefly hold to turn the meter on. The LaMotte logo screen will Testing Menu appear for about 3 seconds and the Main Editing Menu Menu will appear.
  • Page 7 All Tests Press to select Testing Menu. ENTER 008 Ammonia-N HR 12:00:00 001/500 Scroll to and select 008 Ammonia-N HR 008 Ammonia-N HR from menu. Scan Blank Scan Sample 12:00:00 001/500 Rinse a clean tube (0290) three times with the ammonia nitrogen standard. Fill to the 10 mL line with the ammonia nitrogen standard.
  • Page 8 Use 1.0 mL pipet (0354) to add 1.0 mL of *Ammonia Nitrogen Reagent #2 (V-4798). Cap and invert to mix. Wait 5 minutes for full color development. Wipe tube dry. 05:00 Insert tube into chamber. Close lid. 008 Ammonia-N HR 0.99 Select Scan Sample.

  • Page 9: Set Up

    008 Ammonia-N HR 13. Press to save the value. ENTER 1.00 To leave the Calibration procedure without saving the adjustment, press EXIT Press at any time to ENTER %T/Abs return to the default value. The calibration has now been Calibrate standardized and can be used for 12:00:00 001/500...

  • Page 10: X84; Factory Setup

    Editing Menu From the Editing Menu, press to scroll to Logging. Set Clock Logging Factory Setup Set Power Save 12:00:00 001/500 Logging Press to select Logging. ENTER Display Test Log Logging Enabled Logging Disabled Erase Log 12:00:00 001/500 Logging Press to scroll to desired function.

  • Page 11: X84; Setting Backlight Time

    Set Power Save Press to select Set Power Save. ENTER Disable 5 Minutes 15 Minutes 30 Minutes 12:00:00 001/500 Set Power Save Press to scroll to desired function. Disable 5 Minutes 15 Minutes 30 Minutes 12:00:00 001/500 Editing Menu Press .

  • Page 12: X84; Selecting A Language

    Set Backlight Time Press to scroll to desired option. Button Control 10 seconds 20 seconds 30 seconds 12:00:00 001/500 Editing Menu Press . The screen will display ENTER Storing... for about 1 second and the Logging meter will return to the Editing Menu. Factory Setup Set Power Save Set Backlight Time...

  • Page 13: X84; Looping Menus

    USB Type A, USB mini B, Order Cable Code 1720-01. „ WATERLINK CONNECT 2 The meter may be interfaced with any Windows-based 64-bit computer by using the LaMotte WaterLink Connect 2 program and a USB cable. The program will store test information and...

  • Page 14: Battery

    The meter will send the following data: name of test, sample value, sample units, time/date stamp, and meter name. To download WaterLink Connect 2 go to http:// softwarecenter.lamotte. com/. Select “WaterLink Connect 2 FREE Download”. BATTERY „ BATTERY/AC OPERATION The meter may be operated on battery power using a USB wall adapter or USB computer connection.

  • Page 15: X84; Returns

    Company by calling 800-344-3100 (US only) or 410-778-3100, faxing 410-778-6394, or emailing tech@lamotte.com. Often a problem can be resolved over the phone or by email. If a return of the meter is necessary, attach a letter with the return authorization number, meter serial number, a brief description of problem and contact information including phone and FAX numbers to the shipping carton.

  • Page 16: X84; Tubes And Chambers

    Large format graphic information, such as test results or error messages or the LaMotte logo is displayed. The top two lines of the display are used to display information in a large, easy to read format. The menus work in the same way as previously described but two lines of the menu are visible at the bottom of the display.

  • Page 17: X84; Sample Dilution Techniques

    Experienced packaging personnel at LaMotte Company assure adequate protection against normal hazards encountered in transportation of shipments. After the product leaves LaMotte Company, all responsibility for safe delivery is assured by the transportation company. Damage claims must be filed immediately with the transportation company to receive compensation for damaged goods.

  • Page 18: X84; Limits Of Liability

    0585 (call collect). Be prepared to supply the name and four-digit LaMotte code number found on the container label or at the top of the SDS or in the contents list of the procedure. LaMotte reagents are registered with a computerized poison control information system available to all local poison control centers.

  • Page 19: X84; Ip67

    Documentation is available at www.lamotte.com. „ WARRANTY LaMotte Company warrants this instrument to be free of defects in parts and workmanship for 2 years from the date of shipment. Keep the proof of purchase for warranty verification. If it should become necessary to return the instrument during or the warranty period, contact our Technical Service Department at 1-800-344-3100 or 1-410-778-3100, ext.
  • Page 20 802 Washington Ave • Chestertown • Maryland • 21620 • USA +1 410-778-3100 • 800-344-3100 www.lamotte.com LaMotte and WaterLink, are ® registered trademarks of LaMotte Company © 2023 LaMotte Company, All Rights Reserved. 3241-MN 10.10.2023...
