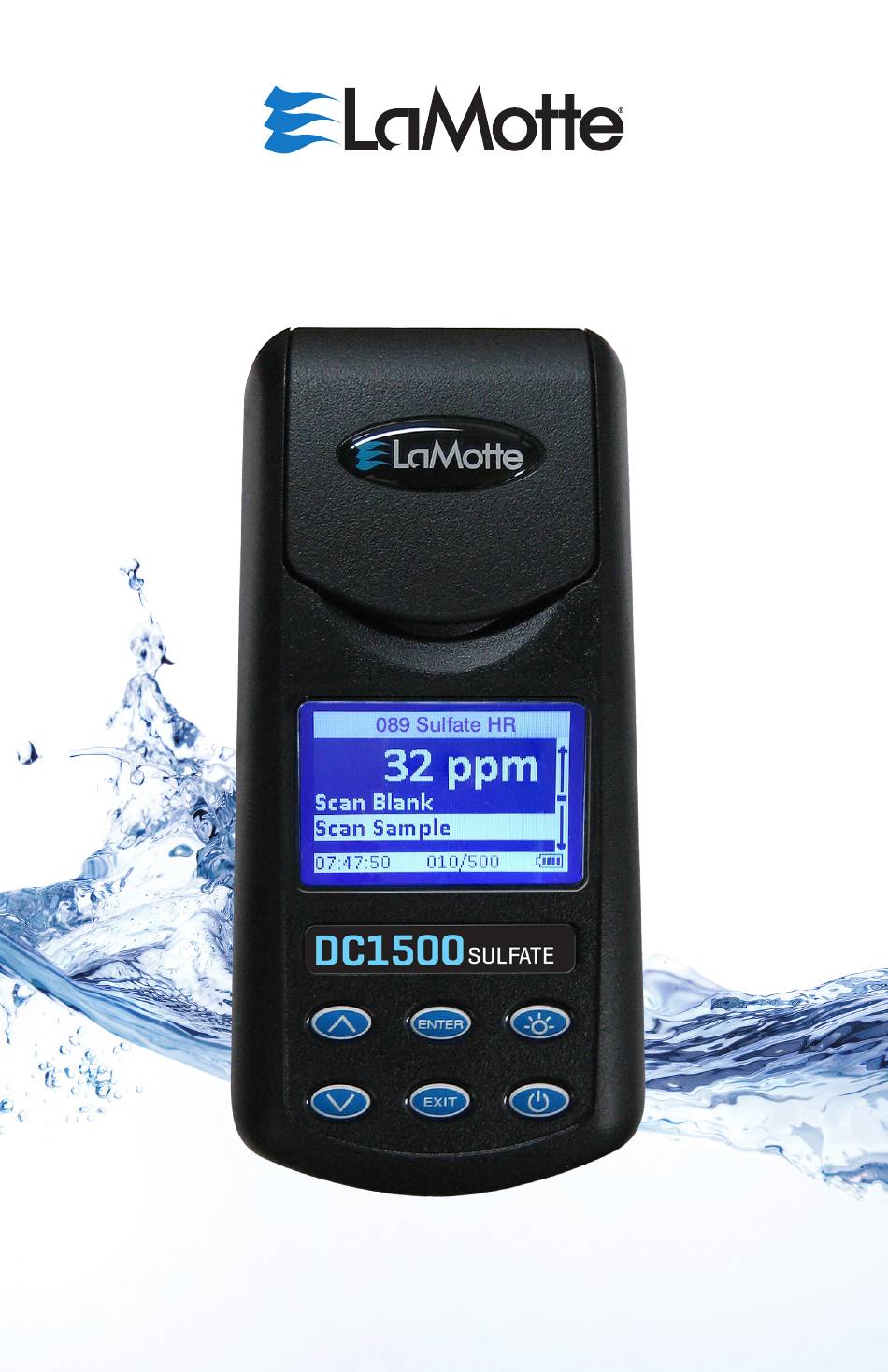

- Page 1 DC1500 SULFATE Sulfate Colorimeter Kit Code 3247...
-
Page 3: Table Of Contents
CONTENTS DC1500 Sulfate Kit „ Kit Contents ..................5 „ Accessories ..................5 Test Method Specifications „ Introduction ..................6 „ Application .................... 6 „ Range ..................... 6 „ Method ....................6 „ Handling & Preservation ..............6 „ Interferences ..................6 Analysis „... - Page 4 General information „ Packaging and Delivery ..............25 „ General Precautions ................25 „ Safety Precautions ................26 „ Limits of Liability ................26 „ Specifications ..................27 „ CE ......................28 „ IP67 ......................28 „ Warranty .....................28 „ Trouble Shooting Guide ..............29 „ Error Messages ..................29 „...
-
Page 5: Dc1500 Sulfate Kit „ Kit Contents
Omit any letter that follows or precedes the four digit code number. For example if code is 4450WT-H, search 4450. To obtain a printed copy, contact LaMotte by e-mail, phone or fax. -
Page 6: Test Method Specifications
TEST METHODS SPECIFICATIONS „ INTRODUCTION The most common mineral forms of sulfur are iron sulfide, lead sulfide, zinc sulfide, calcium sulfate and magnesium sulfate. In most fresh waters, the sulfate ion is the second or third most abundant anion, being exceeded only by bicarbonate and, in some cases, silicate. -
Page 7: Analysis
ANALYSIS PROCEDURE 1. Fill the Water Sample Collecting Bottle (0688) with sample water. Main Menu 2. Press and hold until colorimeter turns on. Testing Menu Editing Menu 12:00:00 001/500 All Tests 3. Press to select Testing ENTER Menu. 089 Sulfate HR 12:00:00 001/500 4. - Page 8 6. Insert tube into chamber, close lid and select Scan Blank. Remove tube from colorimeter. Use the 0.1 g spoon (0699) to add one measure of *Sulfate Reagent (V-6277). 8. Cap and shake vigorouslly for 15 seconds. A white precipitate will develop if sulfates are present.
-
Page 9: Calibration „ Standards
CALIBRATION PROCEDURE Main Menu 1. Press and briefly hold turn the meter on. The LaMotte Testing Menu logo screen will appear for about Editing Menu 3 seconds and the Main Menu will appear. - Page 10 4. Rinse a clean tube (0290) three times with the sulfate standard. Fill to the 10 mL line with the sulfate standard. Cap the tube. Dry the tube with a lint-free cloth. 5. Insert tube into chamber, close lid and select Scan Blank. 6.
- Page 11 9. Insert tube into chamber. Close 089 Sulfate HR lid. Select Scan Sample. Scan BLank Scan Sample 12:00:00 001/500 089 Sulfate HR 10. Press to scroll to Calibrate. %T/Abs Calibrate 12:00:00 001/500 089 Sulfate HR 11. Press to select Calibrate. ENTER A reverse font (light background with dark characters) will appear...
- Page 12 089 Sulfate HR 13. Press to save the value. ENTER To leave the Calibration procedure without saving the adjustment, press %T/Abs EXIT Calibrate Press at any ENTER time to return to the default 12:00:00 001/500 value. The calibration has now been standardized and can be used for testing.
-
Page 13: Set Up
SET UP „ SETTING THE CLOCK Setting the clock allows the correct time and date stamp to be stored with each reading in the data logger. 1. From the Editing Menu, press Editing Menu to scroll to Set Set Clock Clock. -
Page 14: X84; Logging Data
„ LOGGING DATA The default setting for the data logger is enabled. The meter will log the last 500 data points. The counter in the center bottom of the display will show how many data points have been logged. The display will show 500+ when the data logger has exceeded 500 points and the data points are being overwritten. -
Page 15: X84; Factory Setup
„ FACTORY SETUP The Factory Setup menu is used in manufacturing of the colorimeter. This menu is not for use by the operator in the field. „ SETTING POWER SAVE The power saving Auto Shutoff feature will turn the meter off when a button has not been pushed for a set amount of time. -
Page 16: X84; Setting Backlight Time
„ SETTING THE BACKLIGHT TIME The backlight illuminates the display for enhanced viewing. The default setting is 10 seconds. If Button Control is chosen the backlight button on the key pad will act as an on/off switch and the backlight will remain on or off when the meter is being used. -
Page 17: X84; Selecting A Language
„ SELECTING A LANGUAGE There are eight languages available: English, Spanish, French, Portuguese, Italian, Chinese, Japanese, and Turkish. 1. From the Editing Menu, press Editing Menu to scroll to Factory Setup Select Language. Set Power Save Set Backlight Time Select Language 12:00:00 001/500 Select Language... -
Page 18: X84; Looping Menus
„ LOOPING MENUS Long menus, such as the Tsting Menu, incorporate a looping feature which allows the user to quickly reach the last choice in the menu from the first choice. In a looping menu the last choices in the menu are above the first choice and scrolling upward moves through the menu in reverse order. -
Page 19: Computer Connection „ Output
„ WATERLINK CONNECT 2 The meter may be interfaced with any Windows-based 64-bit computer by using the LaMotte WaterLink Connect 2 program and a USB cable. The program will store test information and results in a local database and allow for exporting this data to a comma separated value (CSV) file. -
Page 20: Maintenance „ Cleaning
LaMotte Company. Battery replacement must be performed at a LaMotte authorized repair facility. The water resistant housing of this meter should not be opened by the user. Contact LaMotte Company by phone (1-800-344-3100) or email (tech@lamotte.com) for a return authorization number. -
Page 21: X84; Returns
LaMotte Company by calling 800-344- 3100 (US only) or 410-778-3100, faxing 410-778-6394, or emailing tech@ lamotte.com. Often a problem can be resolved over the phone or by email. If a return of the meter is necessary, attach a letter with the return authorization number, meter serial number, a brief description of problem and contact information including phone and FAX numbers to the shipping carton. -
Page 22: X84; Meter Disposal
The menus can be displayed in eight languages. The LaMotte tests are precalibrated for LaMotte reagent systems. The colorimeter displays the result of these tests directly in units of concentration. -
Page 23: X84; The Keypad
„ THE KEYPAD The keypad has 6 buttons which are used to perform specific tasks. This button will scroll up through a list of menu selections. The button is used to select choices in a menu viewed on the ENTER display. - Page 24 Large format graphic information, such as test results or error messages or the LaMotte logo is displayed. The top two lines of the display are used to display information in a large, easy to read format.
-
Page 25: X84; Tubes And Chambers
The display may show the following messages: Battery Status More choices are available and can be viewed by scrolling up and/or down through the display. Header Identifies the current menu and information on units and reagent systems if applicable. Footer In the data logging mode the number of the data point is displayed and the total number of data points in the memory will be shown. -
Page 26: X84; Sample Dilution Techniques
After the product leaves LaMotte Company, all responsibility for safe delivery is assured by the transportation company. Damage claims must be filed immediately with the transportation company to receive compensation for damaged goods. -
Page 27: X84; Safety Precautions
„ SAFETY PRECAUTIONS Read the labels on all LaMotte reagent containers prior to use. Some containers include precautionary notices and first aid information. Certain reagents are considered hazardous substances and are designated with a * in the instruction manual. Safety Data Sheets (SDS) can be found at www.lamotte.com. -
Page 28: X84; Specifications
„ SPECIFICATIONS & RANGES INSTRUMENT TYPE: Colorimeter Readout 160 x 100 backlit LCD, 20 x 6 line graphical display Wavelengths 428 nm Wavelength Accuracy ±2% FS Readable Resolution Determined by reagent system Wavelength Bandwidth 10 nm typical Photometric Range –2 to +2 AU Photometric Precision ±... -
Page 29: X84; Ce
USB port plug is in place. Documentation is available at www. lamotte.com. „ WARRANTY LaMotte Company warrants this instrument to be free of defects in parts and workmanship for 2 years from the date of shipment. Keep the proof of purchase for warranty verification. If it should become necessary to return the instrument during or the warranty period, contact our Technical Service Department at 1-800-344-3100 or 1-410-778-3100, ext. -
Page 30: X84; Error Messages
This can be done following the user calibration described on page 10. If the user calibration fails to properly adjust the meter then the meter should be returned to LaMotte Company for recalibration. (See page 20). „ STRAY LIGHT The colorimeter should have no problems with stray light. Make sure that the... -
Page 31: X84; Troubleshooting Guide
„ TROUBLESHOOTING GUIDE PROBLEM REASON SOLUTION Low battery. Readings Charge battery or use Flashing are reliable. USB wall/computer adapter. “Low Battery” Battery voltage is very Charge battery or use low. Readings are not USB wall/computer reliable. adapter. “Shut Down Low Batt” Battery is too low to Charge battery or use Shut Down... - Page 32 802 Washington Ave • Chestertown • Maryland • 21620 • USA 410-778-3100 • 800-344-3100 www.lamotte.com 3247-MN 10.21 LaMotte, WaterLink, Spin Touch are ® registered trademarks of LaMotte Company / © 2021 LaMotte Company, All Rights Reserved...
