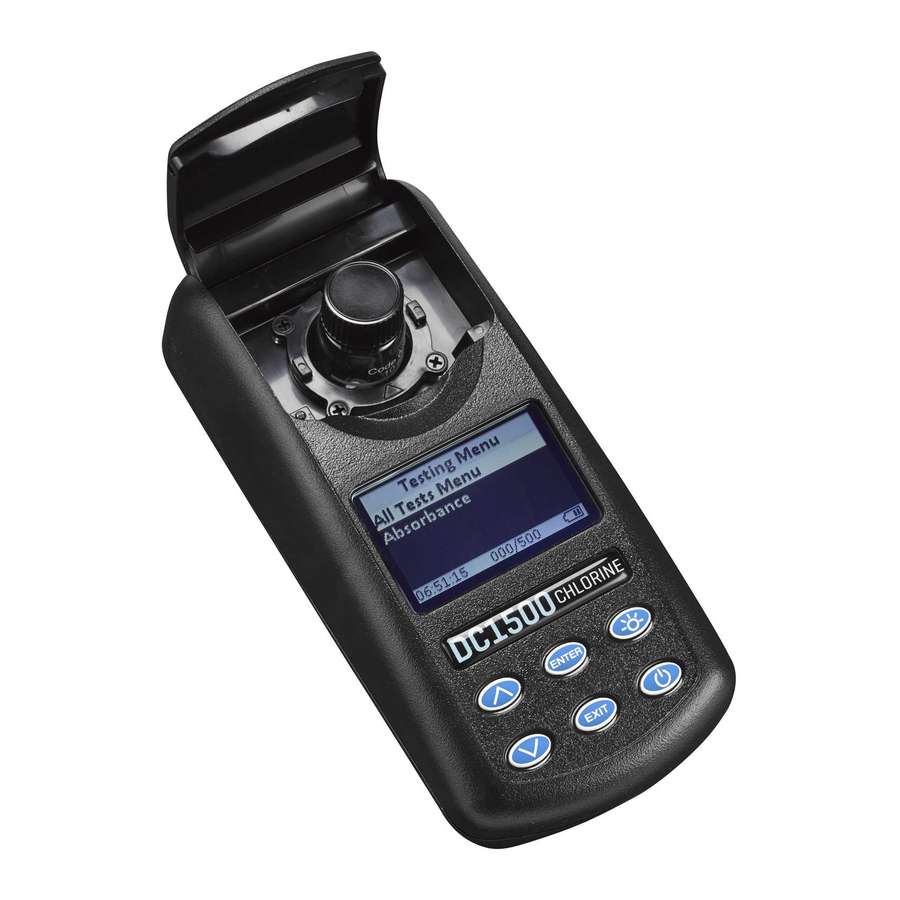

Summary of Contents for LaMotte DC1500

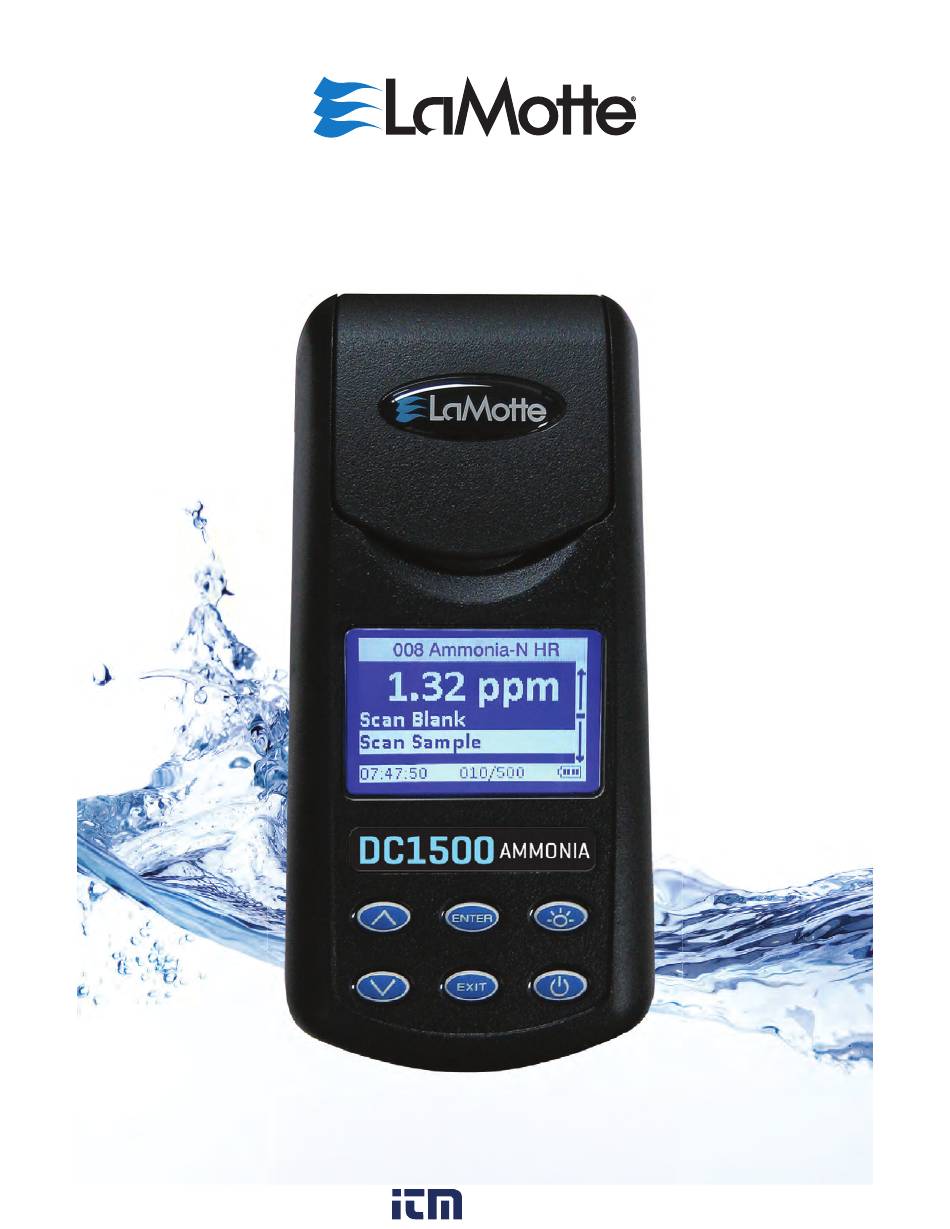

- Page 1 DC1500 AMMONIA Ammonia Colorimeter Kit Code 3241 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
CONTENTS DC1500 Ammonia Nitrogen Kit Kit Contents ..................5 Accessories ..................5 Introduction ..................6 Application .................... 6 Range ..................... 6 Method ....................6 Handling & Preservation ..............6 Interferences ..................6 Analysis Ammonia Nitrogen ................7 Calibration Standards ...................10 Calibration Procedure ...............10... - Page 3 General information Packaging and Delivery ..............26 General Precautions ................26 Safety Precautions ................27 Limits of Liability ................27 ..................28 CE ......................29 IP67 ......................29 Warranty .....................29 Register Your Meter................29 Trouble Shooting Guide Error Messages ..................30 Calibration ..................30 Stray Light ..................30 Troubleshooting Guide ..............31 1.800.561.8187 information@itm.com www.
-
Page 4: Kit Contents
DC1500 AMMONIA NITROGEN KIT Kit Contents QUANTITY CONTENTS CODE 30 mL Ammonia Nitrogen Reagent #1 V-4797-G 3 x 30 mL *Ammonia Nitrogen Reagent #2 *V-4798-G Pipet, 1 mL Plastic 0354 Colorimeter Tubes, w/caps,set of 6 0290-6 Water Sample Collecting Bottle... -
Page 5: Introduction
TEST METHODS SPECIFICATIONS INTRODUCTION Ammonia nitrogen is present in various concentrations in many surface and ground water supplies. Any sudden change in the concentration of ammonia nitrogen in a water supply is cause for suspicion. A product of microbiological activity, ammonia nitrogen is sometimes accepted as chemical evidence of pollution when encountered in natural waters. -
Page 6: Analysis
ANALYSIS PROCEDURE 1. Fill the Water Sample Collecting Bottle (0688) with sample water. Main Menu 2. Press and hold until colorimeter turns on. Testing Menu Editing Menu 12:00:00 001/500 All Tests 3. Press to select Testing ENTER Menu. 008 Ammonia-N HR 12:00:00 001/500 4. - Page 7 6. Insert tube into chamber, close lid and select Scan Blank. Remove tube from colorimeter. Add 8 drops of Ammonia Nitrogen Reagent #1 (V-4797). Cap and mix. 8. Use 1.0 mL pipet (0354) to add 1.0 mL of *Ammonia Nitrogen Reagent #2 (V-4798).
- Page 8 before each test and the same tube should be used for the blank and the reacted sample. NOTE: For the best possible results, carry a reagent blank through the procedure. After scanning the blank, perform the test procedure on clear, colorless, distilled or deioized water.
-
Page 9: Ammonia Nitrogen
CALIBRATION PROCEDURE Main Menu turn the meter on. The LaMotte Testing Menu logo screen will appear for about Editing Menu 3 seconds and the Main Menu will appear. - Page 10 3. Scroll to and select 008 008 Ammonia-N HR Ammonia-N HR from menu. Scan Blank Scan Sample 12:00:00 001/500 4. Rinse a clean tube (0290) three times with the ammonia nitrogen standard. Fill to the 10 mL line with the ammonia nitrogen standard.
- Page 11 8. Cap and invert to mix. Wait 5 minutes for full color 05:00 development. Wipe tube dry. 9. Insert tube into chamber. Close 008 Ammonia-N HR lid. Select Scan Sample. 0.99 Scan BLank Scan Sample 12:00:00 001/500 008 Ammonia-N HR 10.
- Page 12 008 Ammonia-N HR 13. Press to save the value. ENTER 1.00 To leave the Calibration procedure without saving the %T/Abs EXIT Calibrate Press at any ENTER time to return to the default 12:00:00 001/500 value. The calibration has now been standardized and can be used for testing.
-
Page 13: Set Up
SET UP SETTING THE CLOCK Setting the clock allows the correct time and date stamp to be stored with each reading in the data logger. 1. From the Editing Menu, press Editing Menu to scroll to Set Set Clock Clock. Logging Factory Setup Set Power Save... -
Page 14: Logging Data
LOGGING DATA The default setting for the data logger is enabled. The meter will log the last 500 data points. The counter in the center bottom of the display will show how many data points have been logged. The display will show 500+ when the data logger has exceeded 500 points and the data points are being overwritten. -
Page 15: Factory Setup
FACTORY SETUP The Factory Setup menu is used in manufacturing of the colorimeter. This SETTING POWER SAVE has not been pushed for a set amount of time. The default setting is disabled. To change the setting: 1. From the Editing Menu, press Editing Menu to scroll to Set Set Clock... -
Page 16: Setting Backlight Time
SETTING THE BACKLIGHT TIME The backlight illuminates the display for enhanced viewing. The default setting is 10 seconds. If Button Control is chosen the backlight button on the key pad meter is being used. When one of the other settings – 10, 20 or 30 seconds – any button is pressed. -
Page 17: Selecting A Language
SELECTING A LANGUAGE There are seven languages available: English, Spanish, French, Portuguese, Italian, Chinese, and Japanese. 1. From the Editing Menu, press Editing Menu to scroll to Factory Setup Select Language. Set Power Save Set Backlight Time Select Language 12:00:00 001/500 Select Language 2. -
Page 18: Looping Menus
LOOPING MENUS Long menus, such as the Tsting Menu, incorporate a looping feature which choice and scrolling upward moves through the menu in reverse order. the menu starts over following the last choice. So all menu choices can be reached by scrolling in either direction. The diagrams below demonstrate a looping menu. -
Page 19: Computer Connection
WATERLINK CONNECT 2.0 The meter may be interfaced with any Windows-based 64 bit computer by using the LaMotte WaterLink Connect 2.0 program and a USB cable. The program will store test information and results in a local database, and allow... -
Page 20: Battery Replacement
This unit uses a custom battery assembly that is only available from LaMotte Company. Battery replacement must be performed at a LaMotte authorized repair facility. The water resistant housing of this meter should not be opened by the user... - Page 21 Often a problem can be resolved over the phone or by email. If a return of the meter is necessary, attach a letter with the return authorization number, meter serial number, a brief description of problem and contact information including phone and FAX numbers to the shipping carton. This information will enable the service department to make 1.800.561.8187 information@itm.com...
-
Page 22: Meter Disposal
The The LaMotte tests are precalibrated for LaMotte reagent systems. The colorimeter displays the result of these tests directly in units of concentration. -
Page 23: The Keypad
THE KEYPAD This button will scroll up through a list of menu selections. The button is used to select choices in a menu viewed on the ENTER display. This button controls the backlight on the display. This button will scroll down through a list of menu selections. This button exits to the previous menu. - Page 24 Large format graphic information, such as test results or error messages or the LaMotte logo is displayed. The top two lines of the display are used to display information in a large, easy to read format.
-
Page 25: Tubes And Chambers
The display may show the following messages: Battery Status More choices are available and can be viewed by scrolling up and/or down through the display. Header reagent systems if applicable. Footer In the data logging mode the number of the data point is displayed and the total number of data points in the memory will be shown. -
Page 26: Sample Dilution Techniques
Experienced packaging personnel at LaMotte Company assure adequate protection against normal hazards encountered in transportation of shipments. After the product leaves LaMotte Company, all responsibility for safe delivery immediately with the transportation company to receive compensation for damaged goods. GENERAL PRECAUTIONS READ THE INSTRUCTION MANUAL BEFORE ATTEMPTING TO SET UP OR OPERATE THE METER. -
Page 27: Safety Precautions
* in the instruction manual. Be prepared to supply the name and four-digit LaMotte code number found on the container label or at the top of the SDS or in the contents list of the procedure. -
Page 28: Ip67
SPECIFICATIONS & RANGES INSTRUMENT TYPE: Colorimeter Readout 160 x 100 backlit LCD, 20 x 6 line graphical display Wavelengths 428 nm Wavelength Accuracy ±2% FS Readable Resolution Determined by reagent system Wavelength Bandwidth 10 nm typical Photometric Range –2 to +2 AU Photometric Precision ±... -
Page 29: Error Messages
Results This can be done following the user calibration described on page 10. If the returned to LaMotte Company for recalibration. (See page 21). STRAY LIGHT The colorimeter should have no problems with stray light. Make sure that the sample compartment lid is always fully closed. -
Page 30: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM REASON SOLUTION Low battery. Readings Charge battery or use Flashing are reliable. USB wall/computer adapter. “Low Battery” Battery voltage is very Charge battery or use low. Readings are not USB wall/computer reliable. adapter. “Shut Down Low Batt” Battery is too low to Charge battery or use Shut Down...
