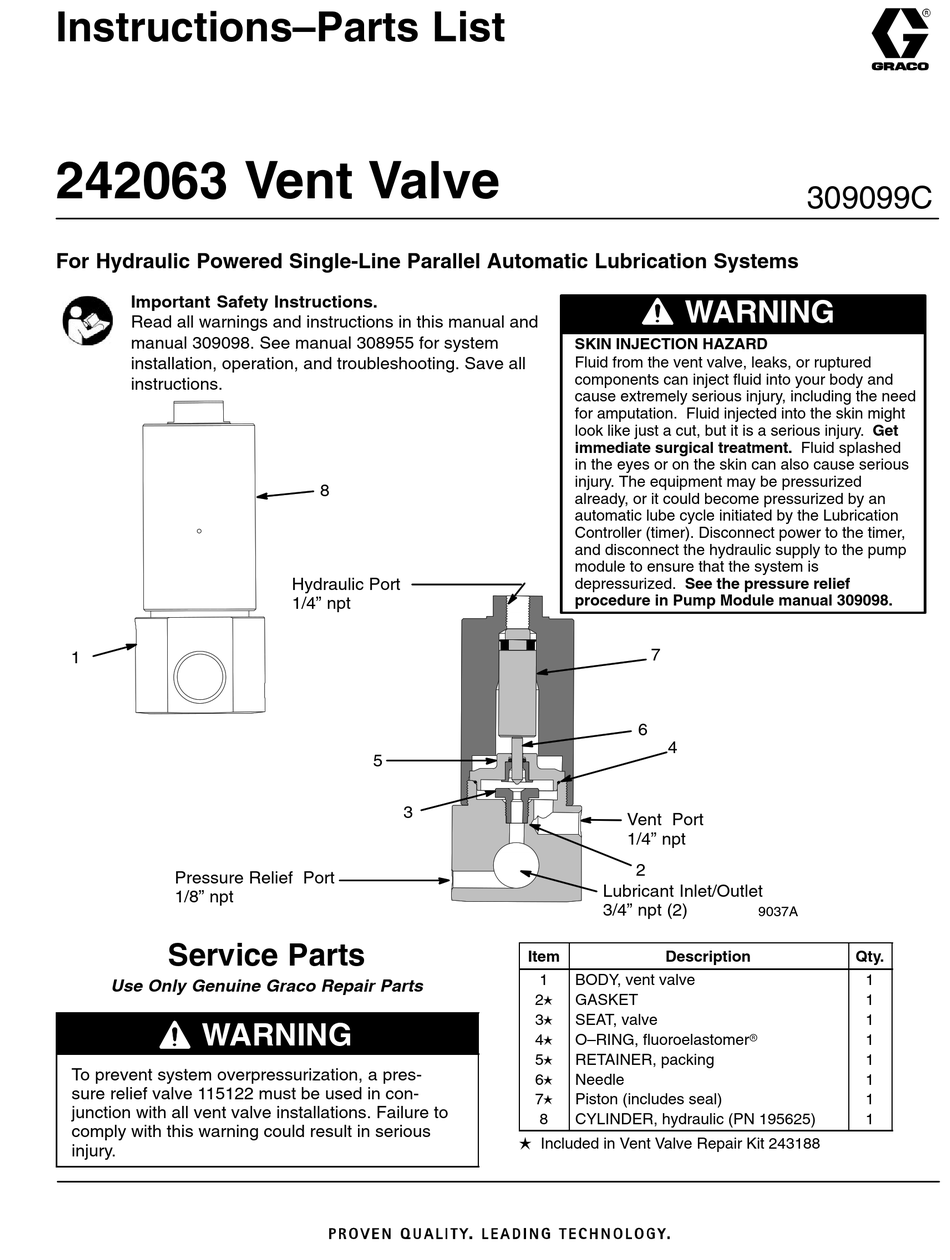

Instructions–Parts List

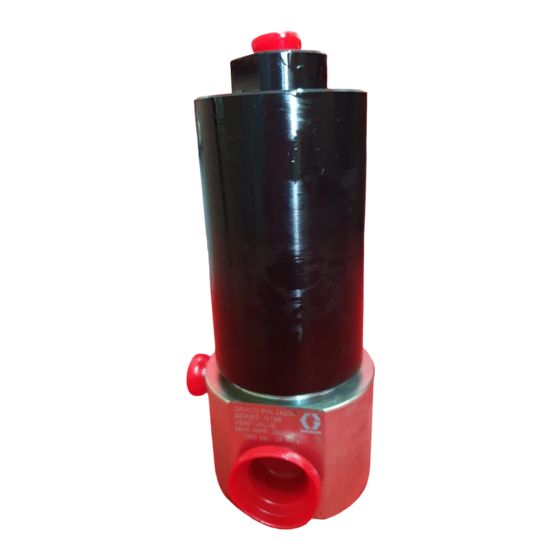

242063 Vent Valve
For Hydraulic Powered Single-Line Parallel Automatic Lubrication Systems
Important Safety Instructions.
Read all warnings and instructions in this manual and
manual 309098. See manual 308955 for system
installation, operation, and troubleshooting. Save all
instructions.
1
Pressure Relief Port
1/8" npt
Service Parts
Use Only Genuine Graco Repair Parts
WARNING
To prevent system overpressurization, a pres-
sure relief valve 115122 must be used in con-
junction with all vent valve installations. Failure to
comply with this warning could result in serious
injury.
8
Hydraulic Port
1/4" npt
5
3
WARNING
SKIN INJECTION HAZARD
Fluid from the vent valve, leaks, or ruptured
components can inject fluid into your body and
cause extremely serious injury, including the need
for amputation. Fluid injected into the skin might
look like just a cut, but it is a serious injury. Get
immediate surgical treatment. Fluid splashed
in the eyes or on the skin can also cause serious
injury. The equipment may be pressurized
already, or it could become pressurized by an
automatic lube cycle initiated by the Lubrication
Controller (timer). Disconnect power to the timer,
and disconnect the hydraulic supply to the pump
module to ensure that the system is
depressurized. See the pressure relief
procedure in Pump Module manual 309098.
7
6
4
Vent Port
1/4" npt
2
Lubricant Inlet/Outlet
3/4" npt (2)
Item Description
1 BODY, vent valve
2K GASKET
3K SEAT, valve
4K O–RING, fluoroelastomerr
5K RETAINER, packing
6K Needle
7K Piston (includes seal)
8 CYLINDER, hydraulic (PN 195625)
L Included in Vent Valve Repair Kit 243188
309099C
9037A
Qty.
1
1
1
1
1
1
1
1
