Instructions – Parts List

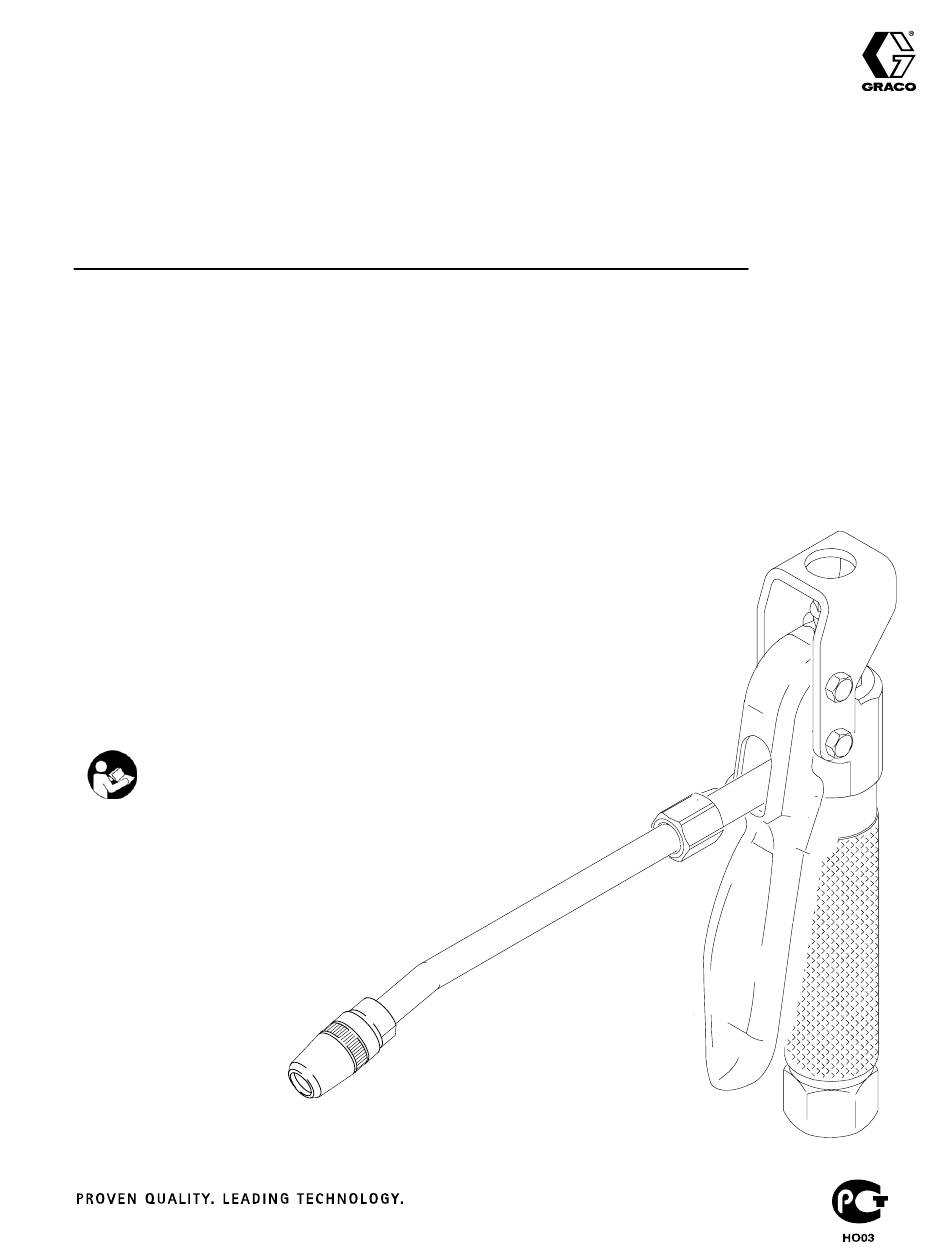

Pro–Shot™

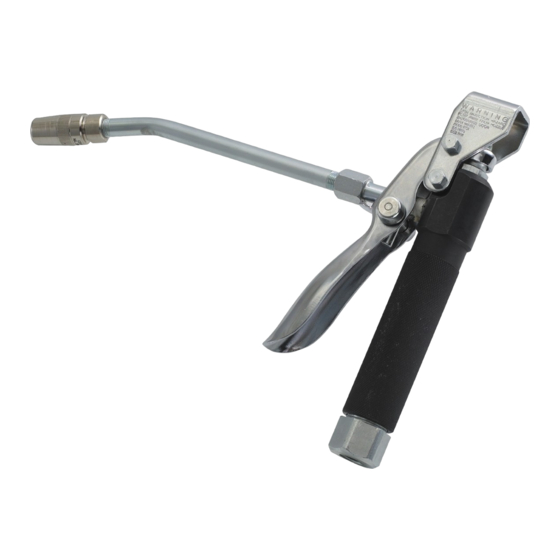

Grease Dispense Valve
For high pressure grease dispense.
8000 psi (55 MPa, 552 bar) Maximum Working Pressure
Model No. 242055, Series B, 1/4 npt Fluid Inlet
Model No. 242056, Series B, 1/4 npt Fluid Inlet with Coupler
Model No. 242057, Series B, 3/8 npt Fluid Inlet
Model No. 242058, Series B, 3/8 npt Fluid Inlet with Coupler
Model No. 24H399, Series A, 1/4–19 bspt Fluid Inlet
Model No. 24H400, Series A, 1/4–19 bspt Fluid Inlet with Coupler
Model No. 24H401, Series A, 3/8–19 bspt Fluid Inlet
Model No. 24H402, Series A, 3/8–19 bspt Fluid Inlet with Coupler
Model No. 24H403, Series A, 1/4–19 bspp Fluid Inlet
Model No. 24H404, Series A, 1/4–19 bspp Fluid Inlet with Coupler
Model No. 24H405, Series A, 3/8–19 bspp Fluid Inlet
Model No. 24H406, Series A, 3/8–19 bspp Fluid Inlet with Coupler
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 1999, Graco Inc. is registered to I.S. EN ISO 9001
309032K
ENG
Advertisement
Table of Contents
Related Manuals for Graco Pro-Shot 242055
Summary of Contents for Graco Pro-Shot 242055
- Page 1 Model No. 24H406, Series A, 3/8–19 bspp Fluid Inlet with Coupler Important Safety Instructions Read all warnings and instructions in this manual. Save these instructions. GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441 Copyright 1999, Graco Inc. is registered to I.S. EN ISO 9001...
- Page 2 D This equipment is for professional use only. D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. D Do not alter or modify this equipment.
- Page 3 D Check the hoses, tubes, and couplings daily. Replace worn or damaged parts immediately. Do not repair high pressure couplings; you must replace the entire hose. D Use only Graco approved hoses. TOXIC FLUID HAZARD Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin, inhaled, or swallowed.
-
Page 4: Operation
Operation This dispense valve provides positive control of high pressure lubricants. When supplied with air, the pump will start when the valve is triggered and will stall against pressure when the trigger is released. Adjustment 2. To adjust the clearance, loosen the top nut (Fig. 1, WARNING item 5) and turn the bottom nut (5) in or out as needed. -
Page 5: Troubleshooting Guide
Service 9. Push plunger rod (15) through seal (4). Be careful; WARNING seat (14), ball (2) and copper gasket (6) will fall out bottom. To reduce the risk of serious injury whenever you are instructed to relieve pressure, always follow the 10. - Page 6 Parts TI0629b Part No. Description Part No. Description NUT, self–locking, 10–32 195610 1/4” npt ADAPTER, seat BALL, carbide Model 242055 and 242056 only SPRING, compression 195620 3/8” npt ADAPTER, seat SEAL Model 242057 and 242058 only NUT, hex, 10–32 16G884 1/4”–19 bspt ADAPTER, seat GASKET, copper Model 24H399 and 24H400 only...
-
Page 7: Technical Data
Technical Data Category Data Maximum Working Pressure 8000 PSI Inlet Size 1/4” or 3/8” Wetted Parts Chrome Vanadium, Polyurethane, Brass, Carbon Steel, Alloy Steel Notes 309032... -
Page 8: Graco Standard Warranty
