dosatron D25F-11 GPM Manual

11 GPM: D25F

PRODUCT DESCRIPTION

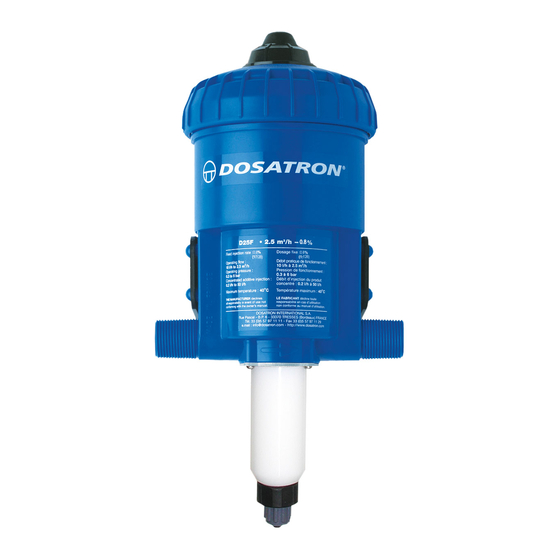

The water-powered Dosatron D25F-11 GPM has
a fixed rate of 1:128 with a water flow range of
0.05 to 11 GPM. It's a perfect step-up from the
D128R when you need higher flow rates.

PRODUCT SPECIFICATIONS

Dilution Range:
Water Flow Range:
Operating Pressure Range:
Available Housing Materials:
Dimensions:
Weight:
Connection Size:
Maximum Temperature:
Included Accessories:
Recommended Accessories:

MAINTENANCE KITS

Injection Seal Kit (Part #: PJ117) - For yearly maintenance
Rebuild Kit (Part #: MKD25F) - Extends the life of your unit
Call 800-523-8499 to order the Dosatron for your specific application
1:128 Fixed (0.8%)
0.05 to 11 GPM
4.3 to 85 PSI
Polyacetal (Standard Blue)
•
PVDF (White)
•
14" x 6 1/4"
4 lbs
3/4" NPT
104 o F
6' clear suction tube, strainer,
weight, mounting bracket and
quick start guide
200 mesh filter, check valve,
pressure regulator, flow restrictor
