Cuisinart

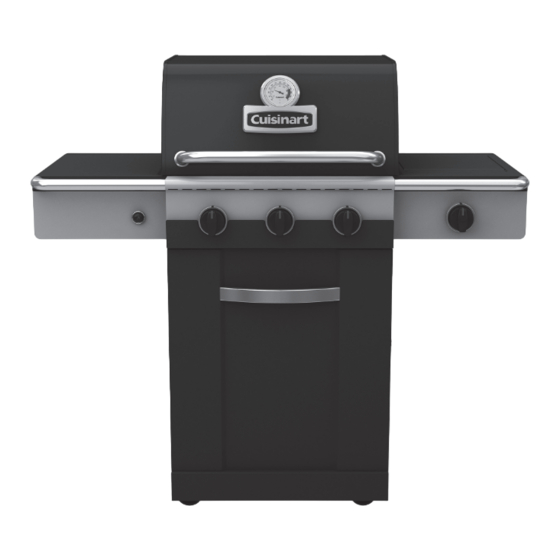

Gourmet 600B
®
READ AND SAVE MANUAL FOR FUTURE REFERENCE.
Missing or damaged parts should be claimed within 30 days of purchase.
For product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.
LIMITED 5-YEAR WARRANTY
Assemble your grill immediately.
www.cuisinartbbqs.com
ASSEMBLY
MANUAL
85-3094-6 (G41805) Propane
85-3095-4 (G41806) Natural Gas
Manual Revision #: 09122013 PD
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cuisinart G41806
Summary of Contents for Cuisinart G41806
- Page 1 85-3094-6 (G41805) Propane Cuisinart Gourmet 600B ® 85-3095-4 (G41806) Natural Gas READ AND SAVE MANUAL FOR FUTURE REFERENCE. Assemble your grill immediately. Missing or damaged parts should be claimed within 30 days of purchase. For product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.
- Page 2 H E A V Y A R T I C L E N E E D S 2 T O L I F T THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES To ORDER non-warranty replacement parts or accessories, or to register your warranty, please visit us on the web at www.cuisinartbbqs.com CAUTION...
-
Page 3: Hardware Pack
HARDWARE PACK Tools Needed for Assembly No. Description Part Number Qty. 1/4"-20UNCX13 Screw 20120-13013-250 • #2 Phillips screwdriver (long and short) 1/4"-20UNCX38 Screw 20120-13038-250 • ¼” Slotted screwdriver (long and short) Φ7 Lock Washer 41400-07000-250 • Adjustable wrench Φ7 Washer 40300-07000-250 •... - Page 4 PARTS LIST (PROPANE) FOR 85-3094-6 (G41805) Item No. Qty. Description Part No. Item No. Qty. Description Part No. Top Lid G418-1800-01 Side Shelf Table, Left G525-0700-01 Lid Handle G412-0035-02 Side Shelf Fascia, Left G418-0600-01 Thermometer G512-0085-01 Towel Bar G525-0029-01 Screw for Top Lid G501-0005-02 Multi Spark™...
- Page 5 EXPLODED DIAGRAM (PROPANE) FOR 85-3094-6 (G41805) EXTRAS Assembly Safe Use Manual & Care Hardware Tank Manual Pack Screw...
- Page 6 PARTS LIST (NATURAL GAS) FOR 85-3095-4 (G41806) Item No. Qty. Description Part No. Item No. Qty. Description Part No. Top Lid G418-1800-01 Side Shelf Table, Left G525-0700-01 Lid Handle G412-0035-02 Side Shelf Fascia, Left G418-0600-01 Thermometer G512-0085-01 Towel Bar G525-0029-01...
- Page 7 EXPLODED DIAGRAM (NATURAL GAS) FOR 85-3095-4 (G41806) EXTRAS Assembly Safe Use Manual & Care Hardware Manual Pack...
- Page 8 ASSEMBLY INSTRUCTIONS Separate the 2 different types of wheels: 2 Locking Wheels (EE) and 2 Regular Wheels (EF). Insert the U Pin (#7) into one of the Regular Wheels (EF), as shown in image B. Attach the Regular Wheel (EF) to the front of the Bottom Shelf (ED), and use the U Pin (#7) to secure and tighten.
- Page 9 ASSEMBLY INSTRUCTIONS c. Assemble the Lower Back Panel (BI) to the Left Cart Side Panel (EA) and Right Cart Side Panel (EB). YOU WILL NEED: Front view Attach the Front Brace (CK) to the Left and Right Cart Side Panels (EA and EB). TIP: One person should align the left side, while the second person assembles the right side.
- Page 10 ASSEMBLY INSTRUCTIONS THIS STEP REQUIRES 3 OR MORE PEOPLE. DO NOT ATTEMPT ALONE. EXTREMELY HEAVY. a. Position the Top Lid and Burner Box Assembly (A and B) onto the Cart Assembly (C), as shown. TIP: Ensure that the Front Brace (CK) is positioned under the Control Panel (CF).
- Page 11 ASSEMBLY INSTRUCTIONS a. Open the lid. Assemble the Left Side Shelf (DA and DB) to the Cart Assembly by inserting the Side Shelf tabs into the holes on the Burner Box Asembly (A and B). Front, left side view b. Secure using hardware, as shown in figure B and C.
- Page 12 ASSEMBLY INSTRUCTIONS a. Assemble the Towel Bar (DC) to the Control Panel (CF) and Left Side Shelf Table (DA), as shown in figure A & B. YOU WILL NEED: b. Attach the two Ignition Button wires to the Multi Spark™ Ignition Button (DD), as shown in figure C.
- Page 13 ASSEMBLY INSTRUCTIONS a. Open the lid. Assemble the Right Side Shelf (DE and DF) to the Cart Assembly by inserting the Side Shelf tabs into the holes on the Cart Assembly, as shown in figure A. b. Secure using hardware, as shown in figure B and C.
- Page 14 ASSEMBLY INSTRUCTIONS a. Assemble the Side Burner Control Knob Bezel (#13) to the Right Side Shelf Fascia (DF) as shown in figures A. YOU WILL NEED: b. Remove the hardware that is pre-assembled to the Side Burner Valve Bracket (CL), as shown in figure B.
- Page 15 ASSEMBLY INSTRUCTIONS a. Position the Side Burner (DH) through the opening in the Side Burner Drip Pan (DG). NOTE: Make sure that the Side Burner (DH) engages the Side Burner Valve (CL), as shown in figure B. Close up b. Use the Wing Nut (#8) to assemble the Side Burner (DH) to the Side Burner Drip Pan (DG), as shown in figure C.
- Page 16 ASSEMBLY INSTRUCTIONS d. Attach the end of the Side Burner Electrode Wire (DI) to the underside of the Side Burner (DH), as shown in figure E. Ensure that the wire is pushed in firmly. View from underneath right side shelf e.
- Page 17 ASSEMBLY INSTRUCTIONS a. Insert the Heat Shield (CG) into the Cart Assembly, as shown in figure A. Front view b. Attach the Heat Shield (CG) to the Upper Back Panel (BG), as shown in Figure B. TIP: Two people required in this step. One person to hold the Heat Shield (CG) in position, and a second person to assemble the hardware from the rear of...
- Page 18 ASSEMBLY INSTRUCTIONS a. Remove the Electronic Ignition Battery Cap (CD2) and the plastic nut from the Electronic Ignition Box (CD1). b. Feed the Electronic Ignition Assembly (CD1) through the opening in the Left Cart Side Panel (EA) and secure using the nut. c.
- Page 19 ASSEMBLY INSTRUCTIONS a. Insert the Grease Tray (CH) into the opening in the Upper Back Panel (BG), making sure to engage tracks located under the Burner Box Assembly (BA). b. Place the Grease Cup (CI) onto the tracks located on the underside of the Grease Tray (CH).
- Page 20 ASSEMBLY INSTRUCTIONS a. Assemble the Door Assembly (EC), to the Bottom Shelf (ED) by inserting the fixed pin (bottom of door) into the hole provided as shown in Figure B. Close up b. Assemble the top of the Door Assembly (EC) to the Front Brace (CK), by pressing in the door support pin and aligning with the hole located on the top right corner of the door,...
- Page 21 ASSEMBLY INSTRUCTIONS a. Place the Flame Tamers (BD) into the Burner Box (BA). b. Place the Cooking Grates (BE) into the Burner Box (BA), as shown. c. Place Warming Rack (BF) onto the Burner Box (BA) by inserting the three positioning rods into the rear panel of the Burner Box (BA), as shown.
- Page 22 Attach the Regulator coupling nut (CB) to the LP cylinder valve. Be careful not to cross thread. Hand tighten only. d. Perform leak test. See page 4 of the Cuisinart Safety & Care Manual. ® ATTENTION: For your families safety,...
- Page 23 FOR NATURAL GAS MODEL ONLY. a. Attach the Natural Gas Hose (CB) to the Manifold Assembly (CA), as shown. b. Perform Leak Test. See page 6 of the Cuisinart Safety and Care Manual. ® ATTENTION: In order to complete installation of your Natural Gas BBQ a 1/2”...
-
Page 24: Join The Conversation
Visit www.cuisinartbbqs.com to complete product registration. Cuisinart Gourmet Barbecues Customer Service: ® 1-800-309-3452 Join the conversation facebook.com/cuisinartbbqs twitter.com/cuisinartbbqs Cuisinart is a registered ® trademark used under license © 2014 Trileaf Distributions Trifeuil...
