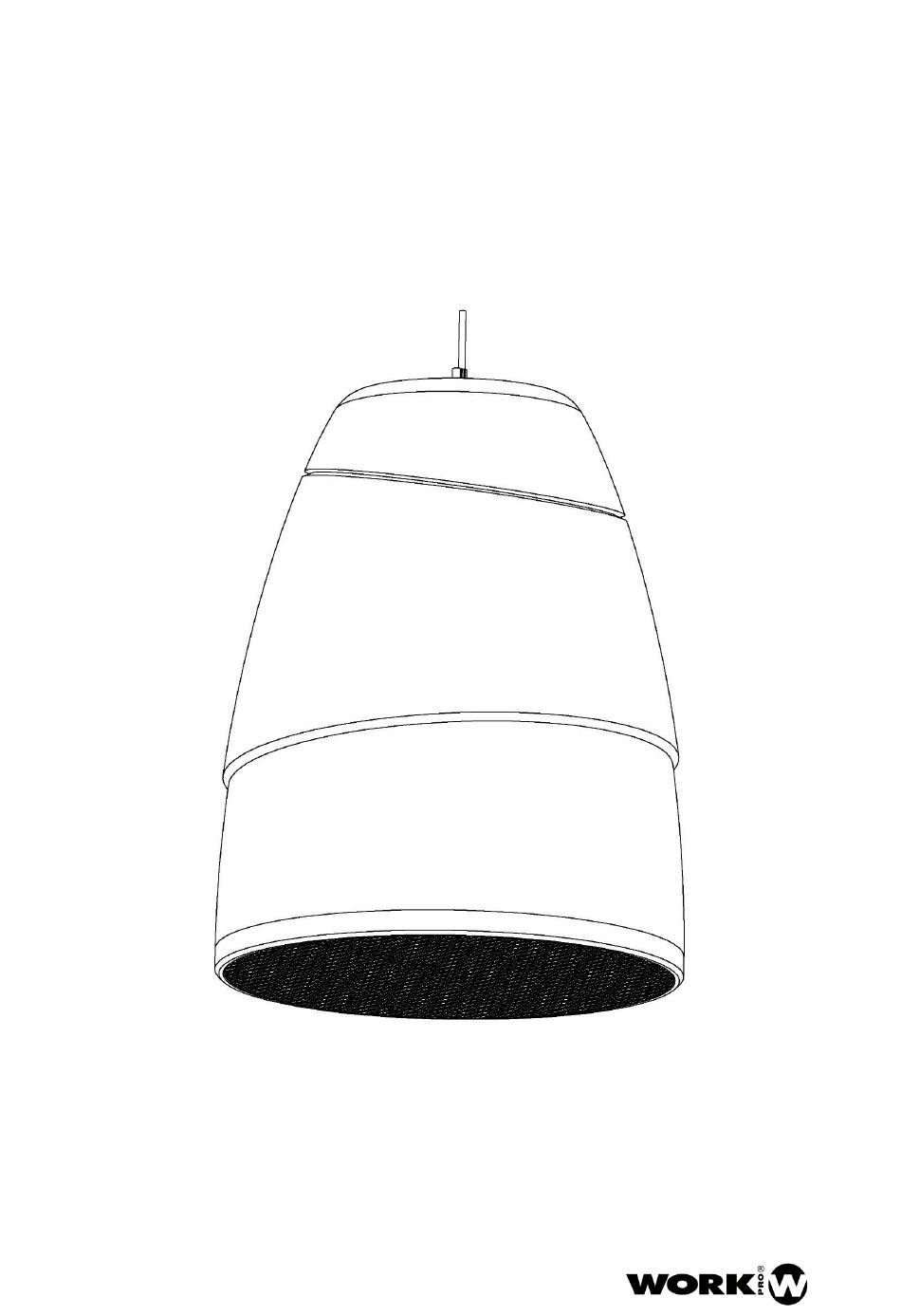

- Page 1 SN SUB 8 SoundNut Series User Manual - Version1.2...
- Page 2 Thank you for choosing the WORK PRO SN SUB 8. This document contains essential information on using the system properly. Carefully read this document in order to become familiar with the system. Please check the WORK PRO website on a regular basis to download the latest document updates: http://www.workpro.es/ Gracias por elegir SN SUB 8 de WORK PRO.
-
Page 3: Table Of Contents
SN SUB 8 USER MANUAL VERSION 1.2 CONTENTS / CONTENIDO 1. OVERVIEW ............................4 2. TECHNICAL SPECIFICATIONS ......................5 3. DRAWINGS ............................6 4. CONNECTION ............................ 6 5. PRESETS ............................. 6 6. RIGGING INSTRUCTIONS ........................7 Rigging cable ..........................7 Safety cable .......................... -
Page 4: Overview

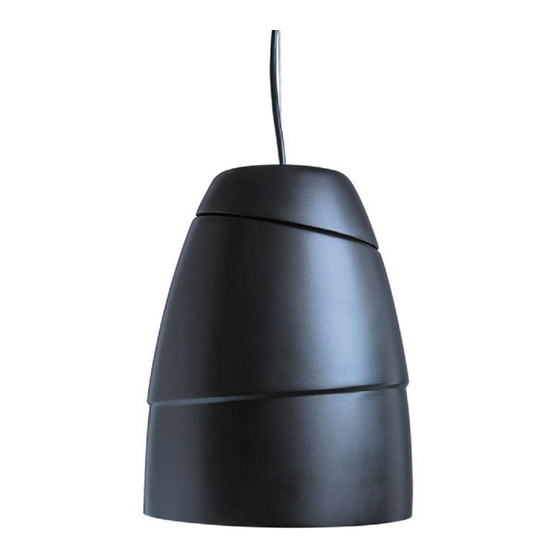

SN SUB 8 USER MANUAL VERSION 1.2 1. OVERVIEW The SN SUB 8 is a passive ,high output subwoofer pendant loudspeaker intended to provide low end reinforcement to the full range pendant loudspeaker from the SN Series. Both together provide voice intelligibility and musical clarity and deepness in acoustically challenging environments such as shopping malls, houses of worship, restaurants, congress halls, hotels, airports, train stations, swimming pools, conference rooms or museums, where high ceiling structures create a reverberant sound field. -
Page 5: Technical Specifications
SN SUB 8 USER MANUAL VERSION 1.2 2. TECHNICAL SPECIFICATIONS Acoustical specifications Transducer ..............1 x 8”, 2” voice coil speaker Nominal Impedance ..................8 ohm RMS Power ...................... 350W Program Power ....................700W Sensitivity ....................86dB SPL Peak SPL ....................116.5dB SPL Frequency Range .............. -
Page 6: Drawings
SN SUB 8 USER MANUAL VERSION 1.2 3. DRAWINGS *Dimensions in mm. 4. CONNECTION The two pole stripped wire colors are as follows: Red, Black Red, + Black, - 5. PRESETS All presets feature the recommended high-pass filter. SN SUB 8_F1V1: Flat frequency response SN SUB 8_Sh+3dBV1: Flat frequency response plus a Shelving filter, +3dB at 4kHz SN SUB 8 www.workpro.es... -
Page 7: Rigging Instructions
SN SUB 8 USER MANUAL VERSION 1.2 6. RIGGING INSTRUCTIONS SN SUB 8 uses a quick and simple solution that allows its installation in a wide variety of facilities, using a keyless release mechanism. To install the SN SUB 8 correctly, two CS 10 E cables must be used, one as main rigging cable, and one as safety cable. -
Page 8: Safety Cable
Safety cable Pass the loop end over Thread the tail wire Pass the tip of the wire the building feature. through the loop to through a hole in the create a choke knot. Gripple® locking device. Pass the tip of the wire Adjust the desired height through the free hole in the by pressing the button... - Page 9 SN SUB 8 USER MANUAL VERSION 1.2 *SN SUB 8 correctly installed All products must be used, handled and installed in accordance with the product's updated product usage instructions and manufacturer's use recommendations, published by Equipson S.A. The materials and construction conditions vary in different places. If you believe that the base material is not strong enough to obtain proper fixation, contact Equipson S.A.
-
Page 10: Introducción
SN SUB 8 USER MANUAL VERSION 1.2 1. INTRODUCCIÓN El SN SUB 8 es un altavoz pasivo tipo "pendant" que actúa como subwoofer de alto rendimiento destinado a proporcionar un refuerzo de gama baja al altavoz colgante de rango completo de la serie SN. -
Page 11: Especificaciones Técnicas
SN SUB 8 USER MANUAL VERSION 1.2 2. ESPECIFICACIONES TÉCNICAS Especificaciones acústicas Transductores ............. Altavoz de 8” con bobina de 2” Impedancia Nominal ..................8 ohm Potencia RMS ....................350W Potencia de Programa ..................700W Sensibilidad ....................86dB SPL SPL de Pico ................... 116.5dB SPL Margen de Frecuencias ............ -
Page 12: Dibujos De Líneas
SN SUB 8 USER MANUAL VERSION 1.2 3. DIBUJOS DE LÍNEAS *Medidas en mm 4. CONEXIONADO La manguera de conexionado tiene dos cables con los siguientes colores: Rojo y Negro Rojo, + Negro, - 5. PRESETS Todos los presets incorporan un filtro paso-alto recomendado. SN SUB 8_F1V1: Respuesta en frecuencia plana SN SUB 8_Sh+3dBV1: Respuesta en frecuencia plana más un filtro Shelving de +3dB en 4kHz SN SUB 8... -
Page 13: Instrucciones De Colgado
SN SUB 8 USER MANUAL VERSION 1.2 6. INSTRUCCIONES DE COLGADO SN SUB 8 utiliza una solución rápida y sencilla que permite su montaje en una amplia variedad de instalaciones, utilizando un cierre con un sistema de desbloqueo automático. Para instalar correctamente el altavoz SN SUB 8 se deben utilizar dos cables CS 10 E para su sujeción, un cable para el colgado, y otro cable que hará... - Page 14 SN SUB 8 USER MANUAL VERSION 1.2 Cable de seguridad Pasar la punta con el lazo por encima del Ensartar la otra punta del Pasar la punta del alambre element de construcción. alambre en el lazo, creando por un orificio del cierre una lazada.
- Page 15 SN SUB 8 USER MANUAL VERSION 1.2 *SN SUB 8 correctamente instalado Todos los productos deben utilizarse, manejarse e instalarse de acuerdo con las instrucciones de uso actualizadas del producto y las recomendaciones de uso del fabricante, publicadas por Equipson S.A. Los materiales y las condiciones de construcción varían en diferentes lugares.
- Page 16 SN SUB 8 USER MANUAL VERSION 1.2 SN SUB 8 www.workpro.es...
