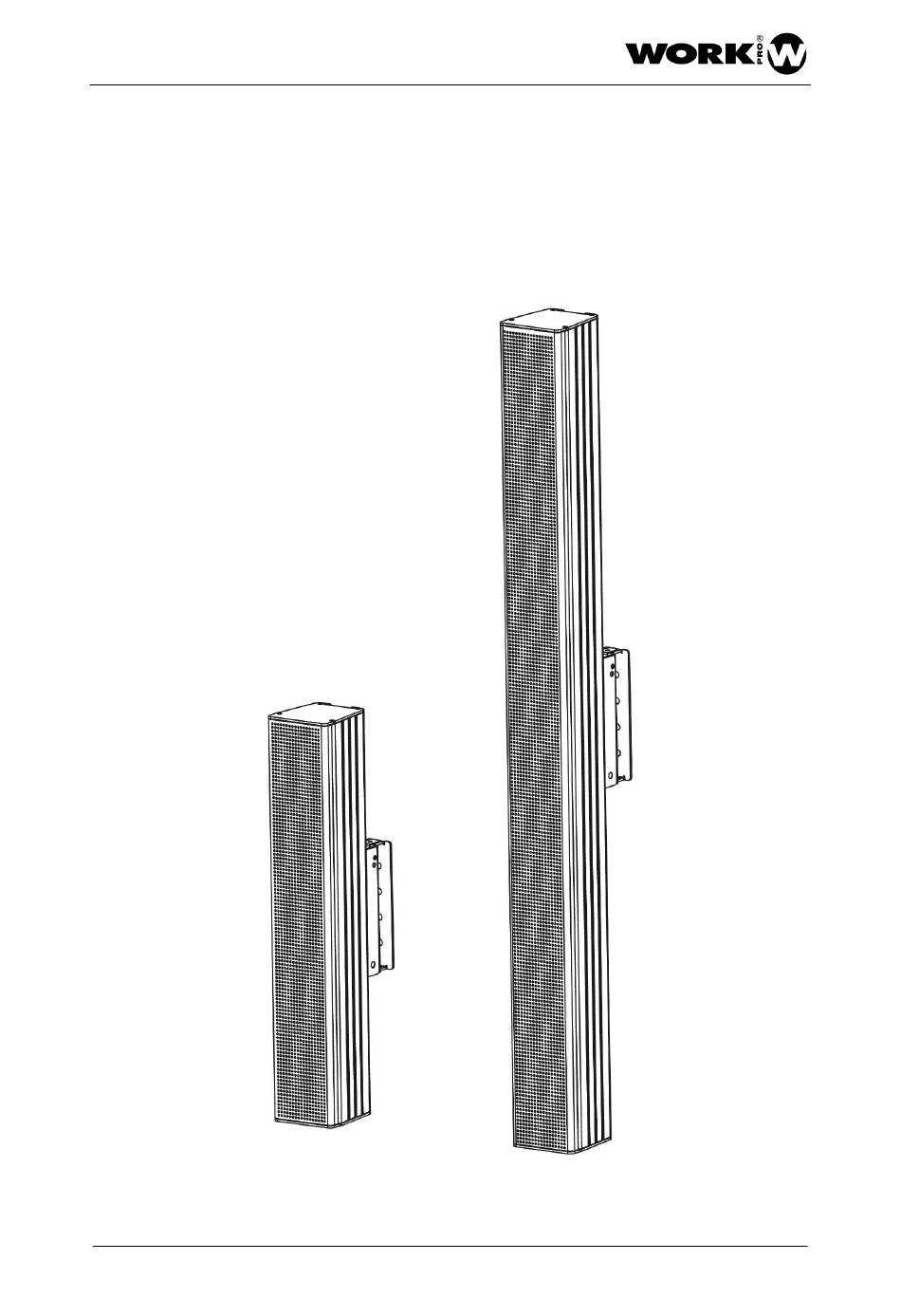

UDA SERIES: UDA 8, UDA 16
USER MANUAL
VERSION 1.2
UDA SERIES: UDA 8, UDA 16
User Manual - Version1.2
UDA SERIES
UDA 8, UDA 16
www.workpro.es
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UDA 8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Work Pro UDA 8

Summary of Contents for Work Pro UDA 8

  • Page 1 UDA SERIES: UDA 8, UDA 16 USER MANUAL VERSION 1.2 UDA SERIES: UDA 8, UDA 16 User Manual - Version1.2 UDA SERIES UDA 8, UDA 16 www.workpro.es...
  • Page 2 This document contains essential information on using the system properly. Carefully read this document in order to become familiar with the system. Please check the WORK PRO website on a regular basis to download the latest document and software updates: http://www.workpro.es/ Gracias por elegir la serie UDA de WORK PRO.

  • Page 3: Table Of Contents

    3. INSTALLATION ........................... 5 4. CONNECTION ............................ 7 UDA 16 TL ........................... 7 Attaching one UDA 16 TL line transformer unit to UDA 8 or UDA 16 ........8 5. ACCESSORIES ............................. 8 Wall 16 ............................8 UDA 16 TL ........................... 9 1.

  • Page 4: Overview

    VERSION 1.2 1. OVERVIEW The UDA 8 and UDA 16 are high output, full range, frequency shaded passive column speakers which provide voice intelligibility and musical clarity in acoustically challenging environments such as shopping malls, houses of worship, restaurants, congress halls, hotels, airports, train stations, swimming pools, conference rooms or museums, where reflective surfaces create a reverberant sound field.

  • Page 5: Technical Specifications

    UDA 16 TL 3. INSTALLATION UDA 8 and UDA 16 are frequency shaded passive column speaker types, meaning that most of the speakers have been low pass filtered in order to widen the high frequency vertical directivity compared to a conventional passive column speaker. The low pass filtered speakers are reproducing only low or low&mid frequencies.
  • Page 6 On the UDA 8, the speakers reproducing the whole frequency range (from low to high) are located at the centre of the column. It is not recommended to assemble two UDA 8 units in one line. Otherwise destructive interference would occur.

  • Page 7: Connection

    UDA 16 TL is a line transformer that can be used both on UDA 8 or UDA 16. To connect one UDA 16 TL to a UDA 8 or UDA 16 unit remove the metallic cover on the rear side of the UDA 16 TL, get loose the nut of the cable gland and insert the cable.

  • Page 8: Attaching One Uda 16 Tl Line Transformer Unit To Uda 8 Or Uda 16

    UDA SERIES: UDA 8, UDA 16 USER MANUAL VERSION 1.2 Attaching one UDA 16 TL line transformer unit to UDA 8 or UDA 16 5. ACCESSORIES Wall 16 Wall 16 is a wall mounting accessory (included with each unit) that allows the column to be aimed up to +/- 90°...

  • Page 9: Uda 16 Tl

    UDA 16 TL is an optional accessory (not included) that allows for high impedance connection of the UDA 8/UDA 16. It houses a high quality 120Wrms@100V line transformer (60Wrms@70V) that makes it suitable for installations where long cables have to be deployed...

  • Page 10: Introducción

    El accesorio UDA 16 TL (no incluido) permite la conexión de la UDA 8 / UDA 16 a alta impedancia. Integra un transformador de alta calidad de 120Wrms @ 100V de línea (60Wrms @ 70V) que lo hace adecuado para instalaciones donde se necesitan largas tiradas de cable.

  • Page 11: Especificaciones Técnicas

    UDA 16 TL 3. INSTALACIÓN UDA 8 y UDA 16 son dos columnas pasivas de rango completo que usan la técnica de atenuación en frecuencia, lo que significa que la mayoría de los altavoces han sido filtrados paso-bajo haciendo que la cobertura vertical de las altas frecuencias sea más ancha y constante que la de una columna...
  • Page 12 En la UDA 8, los altavoces que reproducen todo el rango de frecuencia (de bajas a altas) se encuentran en el centro de la columna. No se recomienda apilar dos unidades UDA 8 en una línea. De lo contrario, se produciría una interferencia destructiva.

  • Page 13: Conexionado

    VERSION 1.2 4. CONEXIONADO La UDA 8 y la UDA 16 pueden conectarse bien a un conector de tipo NL4 (+/- 1) o bien al bloque de terminales. Para conectar la UDA 8 o la UDA 16 al bloque de terminales, retire la cubierta metálica en la parte trasera de la unidad, suelte el tornillo del prensaestopas, inserte el cable y conecte los dos conductores, prestando atención a la polaridad.

  • Page 14: Ensamblaje Del Transformador De Línea Uda 16 Tl A Uda 8 O Uda 16

    UDA SERIES: UDA 8, UDA 16 USER MANUAL VERSION 1.2 Ensamblaje del transformador de línea UDA 16 TL a UDA 8 o UDA 16 5. ACCESORIOS Wall 16 Wall 16 es un accesorio de montaje en pared (incluido con cada unidad) que permite orientar la columna +/- 90°...

  • Page 15: Uda 16 Tl

    VERSION 1.2 UDA 16 TL UDA 16 TL es un accesorio opcional (no incluido) que permite la conexión de la UDA 8 / UDA 16 a alta impedancia. Integra un transformador de alta calidad de 120Wrms@100V línea (60Wrms@70V) que lo hace adecuado para instalaciones donde se necesitan largas tiradas de cable.
  • Page 16 UDA SERIES: UDA 8, UDA 16 USER MANUAL VERSION 1.2 UDA SERIES UDA 8, UDA 16 www.workpro.es...
