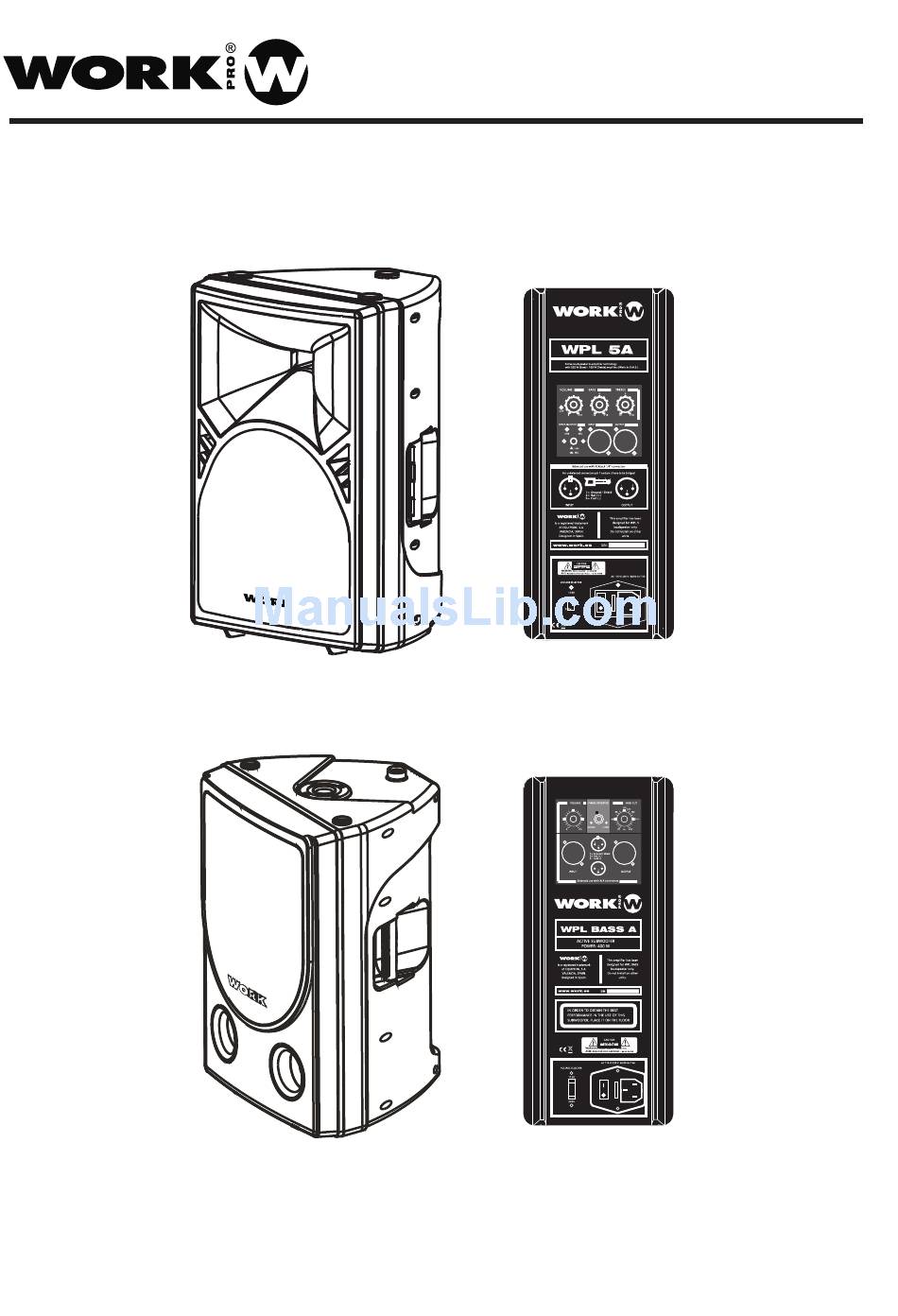

- Page 1 WPL Series (Active) WPL In A - WPL 1 A - WPL 5 A WPL BASS A User Manual / Manual de Instrucciones Rev 2.0...

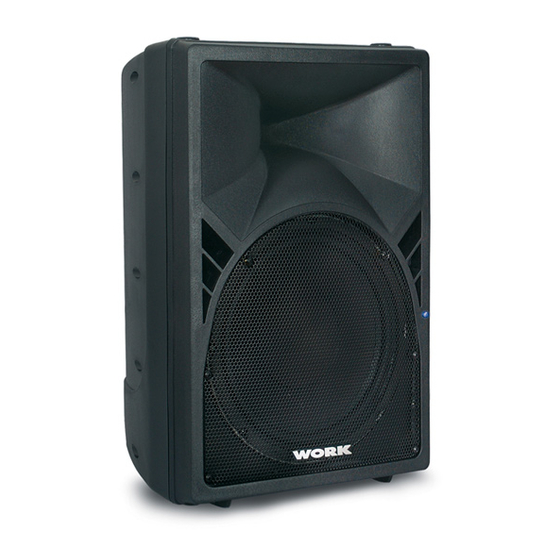

- Page 2 This WPL A loudspeaker range is manufactured in ABS polypropylene plastic in large injection mold and includes 4 references according to speakers and power requirements. Their built-in power amplifier (2 separated amplifiers for WPL in A, WPL 1 A & WPL 5A) have protection circuits, tone controls and input signal source selection.
- Page 3 WPL In A WPL In A TECHNICAL DATA 2 way powered loudspeaker Description: 321mm Elements: 1x10"(Bass)+1x 34 mm driver Ø Power Output: 100W(Bass)+50 W(Treble)RMS 55 Hz - 18 kHz Frequency Resp. (-3 dB): Dispersion (H x V): 90º x 60 º...
- Page 4 WPL 1A WPL 1 A TECHNICAL DATA 420mm 2 way powered loudspeaker Description: Elements: 1x12"(Bass)+1x 34 mm driver Ø Power Output: 300W(Bass)+100W(Treble)RMS 50 Hz - 20 kHz Frequency Resp. (-3 dB): Dispersion (H x V): 90º x 60 º Max. S.P.L.: 124 dB Input Impedance: 10 k? (MIC), 20 k? (LINE)
- Page 5 WPL 5A 480mm WPL 5 A TECHNICAL DATA 2 way powered loudspeaker Description: 1x15"(Bass)+1x mm driver Elements: Ø Power Output: 300W(Bass)+100W(Treble)RMS 40 Hz - 20 kHz Frequency Resp. (-3 dB): Dispersion (H x V): 90º x 50º Max. S.P.L.: 126 dB Input Impedance: 10 k? (MIC), 20 k? (LINE) Sensitivity:...
- Page 6 WPL BASS A WPL BASS A TECHNICAL DATA Description: Powered Subwoofer Elements: 1x15" (Bass) Power Output: 400 W RMS 45 Hz - 2 kHz Frequency Resp. (-3 dB): Max. S.P.L.: 126 dB Sensitivity: 1,15V (+3.4 dBu) Input Impedance: 10 k? (MIC), 20 k? (LINE) Connectors: XLR3 female + XLR3 male Insertion:...
- Page 7 4 referencias de acuerdo a los requerimientos de potencia. Su amplificador incorporado (2 amplificadores separados para WPL In A, WPL 1 A y WPL 5A), disponen de circuitos de protección control de tono y selección de fuente de señal de entrada.
- Page 8 WPL In A WPL In A DATOS TECNICOS Descripción: Caja acústica 2 vías autoampl. 321mm 1x10"(Bass)+1x mm driver Elementos: Ø Potencia de Salida: 100W(Bass)+50W(Treble)RMS 55 Hz - 18 kHz Frecuenc. Resp. (-3 dB): Dispersión (H x V): 90º x 60 º...
- Page 9 WPL 1A WPL 1 A DATOS TECNICOS 420mm Caja acústica 2 vías autoampl. Descripción: Elementos: 1x12"(Bass)+1x mm driver Ø Potencia de Salida: 300W(Bass)+100W(Treble)RMS 50 Hz - 20 kHz Frecuenc. Resp. (-3 dB): Dispersión (H x V): 90º x 60 º Max.
- Page 10 WPL 5 A 480mm WPL 5 A DATOS TECNICOS Descripción: Caja acústica 2 vías autoampl. Elementos: 1x15"(Bass)+1x mm driver Ø Potencia de Salida: 300W(Bass)+100W(Treble)RMS Frecuenc. Resp. (-3 dB): 40 Hz - 20 kHz Dispersión (H x V): 90º x 50º Max.
- Page 11 WPL BASS A WPL BASS A DATOS TECNICOS Subwoofer Autoamplificado Descripción: Elementos: 1x15" (Bass) Potencia de Salida: 400 W RMS Frecuenc. Resp. (-3 dB): 45 Hz - 2 kHz Max. S.P.L.: 126 dB Impedancia de Entrada: 10 k? (MIC), 20 k? (LINE) Sensibilidad: 1,15V (+3.4 dBu) Conectores:...
- Page 12 This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical an electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
