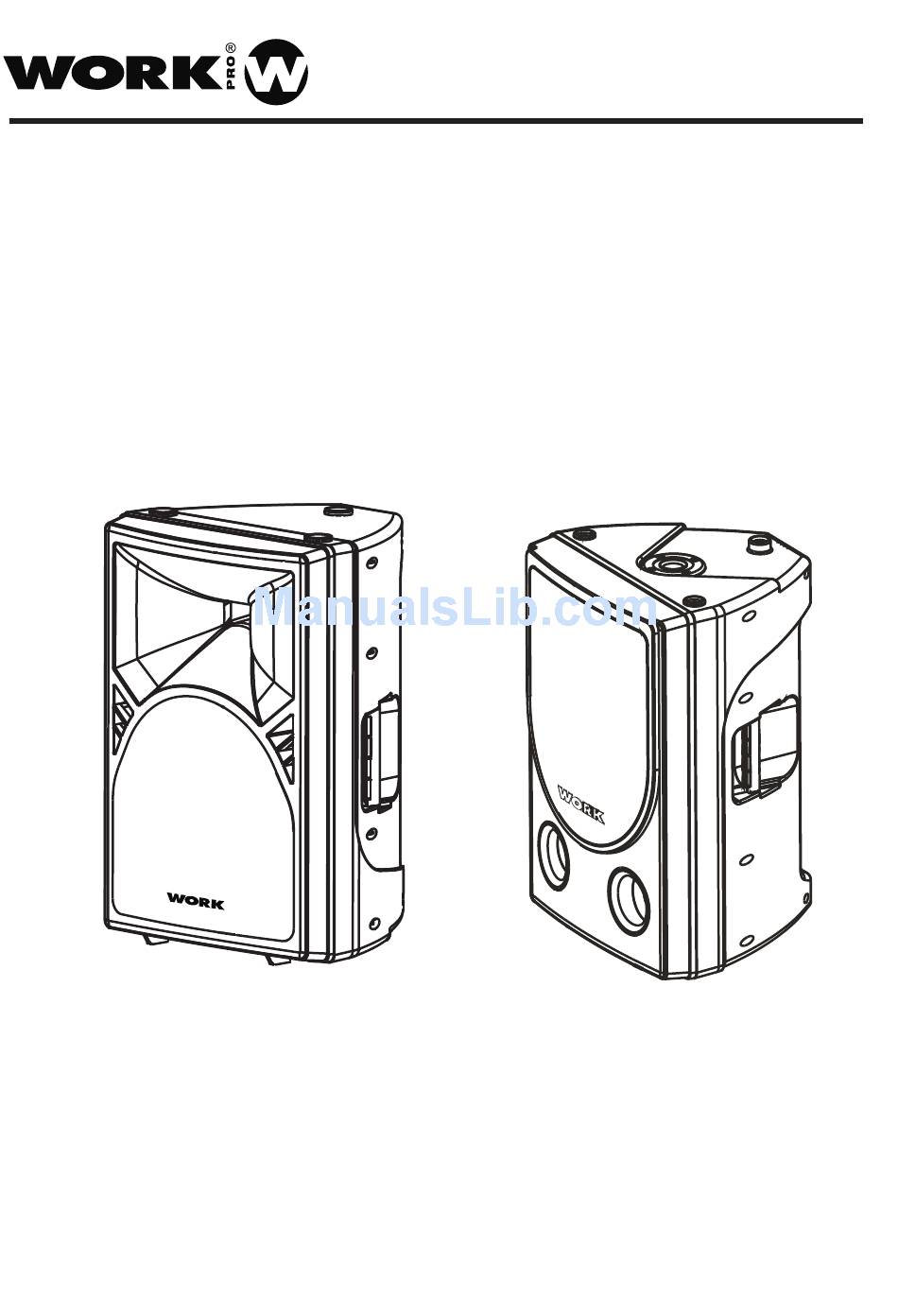

- Page 1 WPL Series (Passive) WPL In - WPL 1 - WPL 5 WPL BASS User Manual / Manual de Instrucciones Rev 2.0...
- Page 2 All units incorporate 2 plastic pieces in order to fit them in monitor position, taking advantage of their shape. 35 mm. insertion piece in the bottom side for using loudspeaker stands. (Upside on WPL BASS). The high frequency driver is protected by special design circuit to avoid being damaged when overload (Only WPL In, WPL1 & WPL 5).
-
Page 3: Technical Data
WPL In WPL In TECHNICAL DATA Description: 2 way loudspeaker (full range) 321mm Elements: 1x10"(Bass)+1x 34 mm driver Ø Power Output: 250 W RMS - 500 W peak 55 Hz - 18 kHz Frequency Resp. (-3 dB): Dispersion (H x V): 90º... - Page 4 WPL 1 WPL 1 TECHNICAL DATA 420mm Description: 2 way loudspeaker (full range) Elements: 1x12"(Bass)+1x 34 mm driver Ø Power Output: 300 W RMS - 600 W peak 50 Hz - 20 kHz Frequency Resp. (-3 dB): Dispersion (H x V): 90º...
- Page 5 WPL 5 480mm WPL 5 TECHNICAL DATA Description: 2 way loudspeaker (full range) Elements: 1x15"(Bass)+1x 4 mm driver Ø Power Output: 350 W RMS - 900 W peak 40 Hz - 20 kHz Frequency Resp. (-3 dB): Dispersion (H x V): 90º...
- Page 6 WPL BASS WPL BASS TECHNICAL DATA Description: Subwoofer loudspeaker system Elements: 1x15" (Bass) Power Output: 500 W RMS - 1000 W peak 45 Hz - 2 kHz Frequency Resp. (-3 dB): Max. S.P.L.: 126 dB Nominal Impedance: Sensitivity (dB/1M/1W): 97 dB Connectors: 2 x XLN4 Insertion:...
- Page 7 Incorpora una pieza de inserción de 35 mm en la parte inferior para usarla con soportes de altavoz. (Parte superior en WPL BASS). El driver para altas frecuencias está protegido por un circuito diseñado especialmente para evitar que `pueda dañarse ante sobrecargas (Sólo WPL In, WPL 1 y WPL 5). La rejilla metálica protege el altavoz de golpes.
-
Page 8: Datos Tecnicos
WPL In WPL In DATOS TECNICOS Descripción: Caja acústica 2 vías (full range) 321mm Elementos: 1x10"(Bass)+1x 4 mm driver Ø Potencia de Salida: 250 W RMS - 500 W peak 55 Hz - 18 kHz Frecuenc. Resp. (-3 dB): Dispersión (H x V): 90º... - Page 9 WPL 1 WPL 1 DATOS TECNICOS 420mm Descripción: Caja acústica 2 vías (full range) Elementos: 1x12"(Bass)+1x 4 mm driver Ø Potencia de Salida: 300 W RMS - 600 W peak 50 Hz - 20 kHz Frecuenc. Resp. (-3 dB): Dispersión (H x V): 90º...
- Page 10 WPL 5 480mm WPL 5 DATOS TECNICOS Descripción: Caja acústica 2 vías (full range) Elementos: 1x15"(Bass)+1x 4 mm driver Ø Potencia de Salida: 350 W RMS - 900 W peak Frecuenc. Resp. (-3 dB): 40 Hz - 20 kHz Dispersión (H x V): 90º...
- Page 11 WPL BASS WPL BASS DATOS TECNICOS Descripción: Subwoofer Elementos: 1x15" (Bass) Potencia de Salida: 500 W RMS - 1000 W peak Frecuenc. Resp. (-3 dB): 45 Hz - 2 kHz Max. S.P.L.: 126 dB Impedancia Nominal: Sensibilidad (dB/1M/1W): 97 dB Conectores: 2 x XLN4 Inserción:...
- Page 12 This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical an electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
