Summary of Contents for Work Pro ARQ SERIES

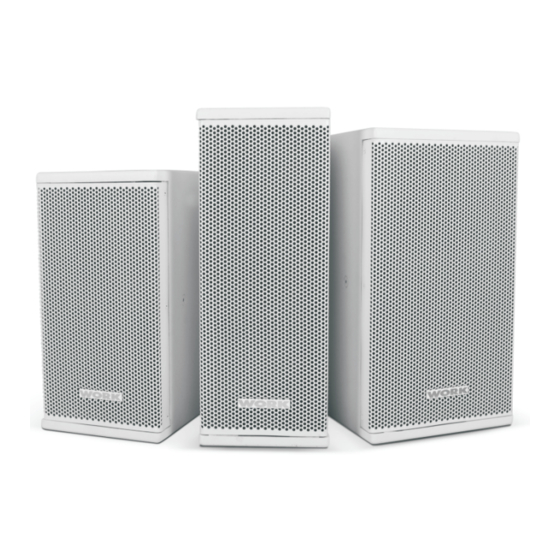

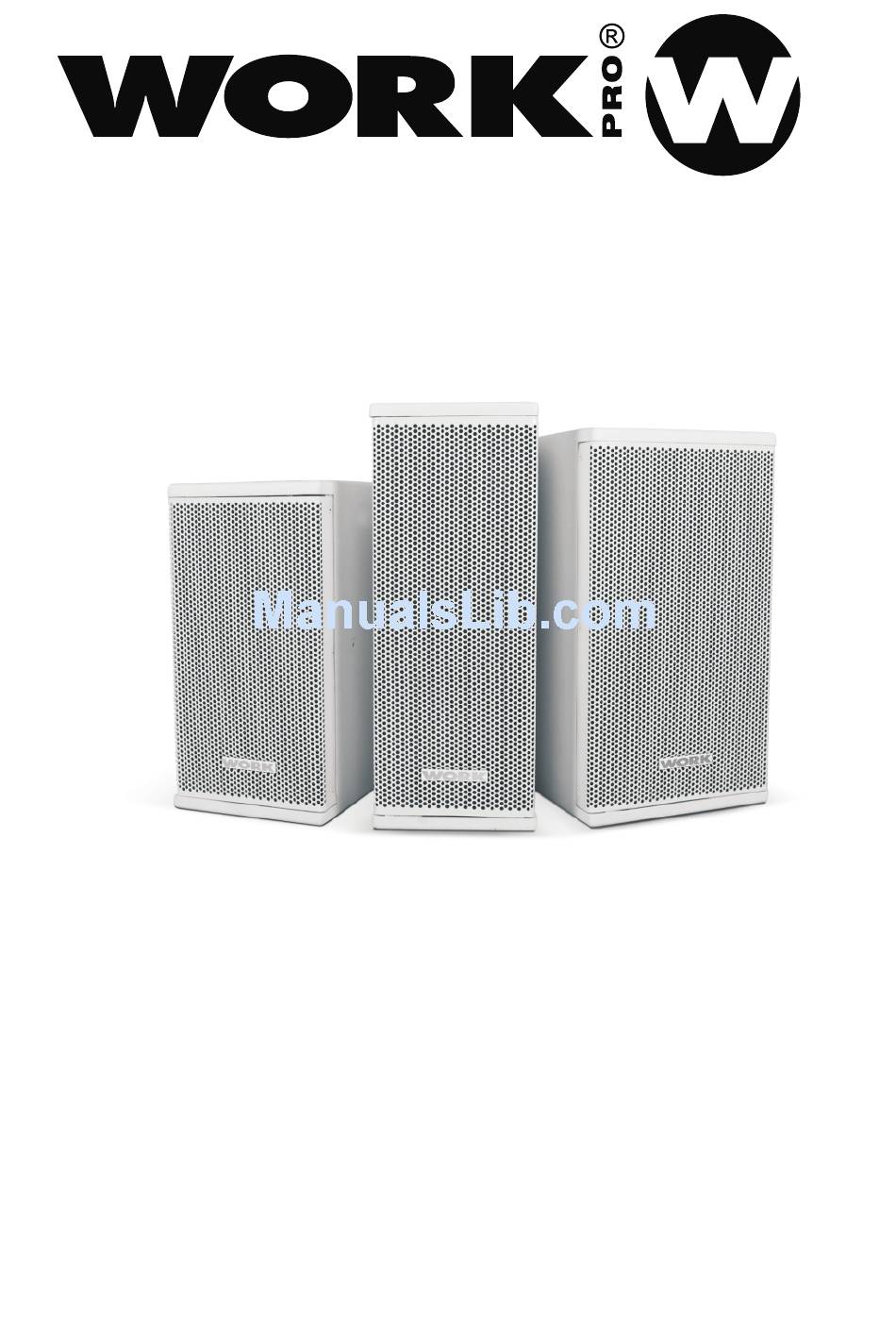

- Page 1 ARQ SERIES User Manual/Manual de Uso V 2.0...
-
Page 2: Safety Precautions
Before connecting or operating your new loudspeaker, please study the accompanying instruction manual paying special attention to the operating precautions and wiring procedure. ARQ Series ARQ Series includes a wide range of loudspeakers. Their different features and high quality elements allow to cover a wide spectrum of installations and to obtain a perfect acoustic response. - Page 3 - Max. SPL: 108 dB - Dispersion: 60º x 60º (HxV) - Connections: Terminals - Dimensions: 450 x 177.5 x 202 (L x W x D) - Weight: 7.2 kg 177.5 mm ARQ SERIES (16/18/25) Pag. 2 User Manual/Manual de Uso...
- Page 4 CONNECTION All models of ARQ series dispose of terminals for Input and Link connections. Use a 2.5 mm bipolar cable to connect the loudspeaker to an amplified system taking into account the signal polarity. INSERTION ARQ 18 is the only model on this series which includes a 35 mm insertion in the backside.
-
Page 5: Precauciones De Seguridad
Para recibir más información, sobre el reciclaje de este producto, contacte con su ayuntamiento, su punto de recogida más cercano o el distribuidor donde adquirió el producto. ARQ SERIES (16/18/25) Pag. 2 User Manual/Manual de Uso... - Page 6 - Max. SPL: 108 dB - Dispersión: 60º x 60º (HxV) - Conexiones: Terminales - Dimensiones: 450 x 177.5 x 202 mm (Al x An x Pr) - Peso: 7.2 kg 177.5 mm ARQ SERIES (16/18/25) Pag. 2 User Manual/Manual de Uso...
- Page 7 Mod. STA 5H (Horizontal ARQ 25) Mod. STA 6V (Vertical ARQ 16) Mod. STA 6H (Horizontal ARQ 16) HORIZONTAL Mod. STA 8V (Vertical ARQ 18) Mod. STA 8H (Horizontal ARQ 18) ARQ SERIES (16/18/25) Pag. 2 User Manual/Manual de Uso...
- Page 8 Equipson, S.A. www.equipson.es support@equipson.es...
