Installation, Operation, and
Maintenance Manual

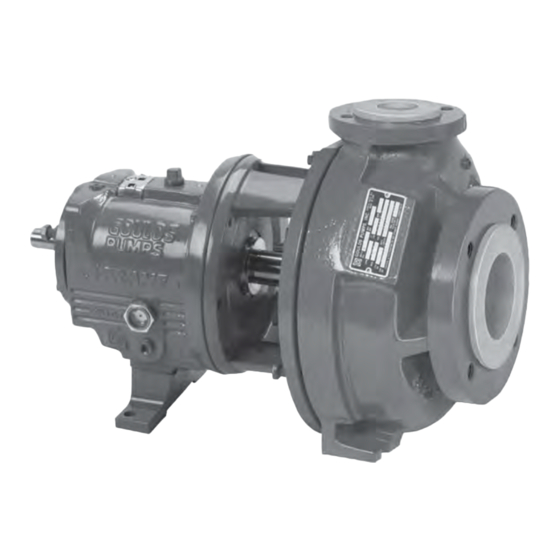

Model 3198 and CV3198 i-FRAME

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOULDS PUMPS 3198 and is the answer not in the manual?

Questions and answers

Related Manuals for ITT GOULDS PUMPS 3198

Summary of Contents for ITT GOULDS PUMPS 3198

  • Page 1 Installation, Operation, and Maintenance Manual Model 3198 and CV3198 i-FRAME...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1 Introduction and Safety ............................ 5 1.1 Introduction..............................5 1.1.1 Requesting other information ......................5 1.2 Safety ................................ 5 1.2.1 Safety terminology and symbols ..................... 6 1.2.2 Environmental safety........................7 1.2.3 User safety ............................8 1.3 Product warranty .............................
  • Page 4 Table of Contents 4.6.1 General piping checklist ........................ 46 4.6.2 Suction-piping checklist......................... 49 4.6.3 Discharge piping checklist......................51 5 Commissioning, Startup, Operation, and Shutdown ................... 53 5.1 Preparation for startup..........................53 5.2 Remove the coupling guard ........................54 5.3 Check the rotation ........................... 56 5.4 Impeller-clearance check ........................
  • Page 5 Table of Contents 6.4.6 Remove the coupling hub ......................85 6.4.7 Impeller removal..........................85 6.4.8 Shaft guard removal (if provided)....................86 6.4.9 Seal-chamber cover removal ......................87 6.4.10 Remove the seal-chamber cover and backplate (NM 3196, 3198, CV 3198)......88 6.4.11 Remove the frame adapter (MTi) ....................
  • Page 6 Table of Contents 8.1 Parts list..............................136 9 Other Relevant Documentation or Manuals....................141 9.1 For additional documentation ........................ 141 10 Local ITT Contacts ............................142 10.1 Regional offices........................... 142 Model 3198 and CV3198 i-FRAME Installation, Operation, and Maintenance Manual...

  • Page 7: Introduction And Safety

    For instructions, situations, or events that are not consid- ered in this manual or in the sales documents, please contact the nearest ITT representative. Always specify the exact product type and serial number when requesting technical information or spare parts.

  • Page 8: Safety Terminology And Symbols

    Risk of injury and/or property damage. Operating a pump in an inappropriate application can cause over pressurization, overheating, and/or unstable operation. Do not change the service application without the approval of an authorized ITT representative. WARNING: This product contains Carbon Black a chemical known to the State of California to cause can- cer.

  • Page 9: Environmental Safety

    WARNING: If the product has been contaminated in any way, such as from toxic chemicals or nuclear radi- ation, do NOT send the product to ITT until it has been properly decontaminated and advise ITT of these conditions before returning.

  • Page 10: User Safety

    1.2 Safety 1.2.3 User safety General safety rules These safety rules apply: • Always keep the work area clean. • Pay attention to the risks presented by gas and vapors in the work area. • Avoid all electrical dangers. Pay attention to the risks of electric shock or arc flash hazards. •...
  • Page 11 1.2 Safety 1.2.3.1 Precautions before work Observe these safety precautions before you work with the product or are in connection with the product: • Provide a suitable barrier around the work area, for example, a guard rail. • Make sure that all safety guards are in place and secure. •...

  • Page 12: Product Warranty

    All service and repair work is done by ITT-authorized personnel. • Genuine ITT parts are used. • Only Ex-approved spare parts and accessories authorized by ITT are used in Ex-approved prod- ucts. Limitations The warranty does not cover faults caused by these situations: •...
  • Page 13 Compliance is fulfilled only when you operate the unit within its intended use. Do not change the condi- tions of the service without the approval of an ITT representative. When you install or maintain explosion proof products, always comply with the directive and applicable standards (for example, IEC/EN 60079-14).
  • Page 14 Maintenance manual (IOM) can cause serious personal injury or damage to the equipment. This in- cludes any modification to the equipment or use of parts not provided by ITT Goulds Pumps. If there is any question regarding the intended use of the equipment, please contact an ITT Goulds representative before proceeding.
  • Page 15 1.4 Ex Considerations and Intended Use • Pressure gauges • Flow meters • Level indicators • Motor load readings • Temperature detectors • Bearing monitors • Leak detectors • PumpSmart control system WARNING: • When pumping unit is installed in a potentially explosive atmosphere, the instructions af- ter the Ex symbol must be followed.
  • Page 16 If the equipment is Ex certified and the listed temperature exceeds the applicable value shown in Table 1 under SAFETY, then that temperature is not valid. Should this situation occur, please consult with your ITT/Goulds representative. • Cooling systems, such as those for bearing lubrication, mechanical seal systems, etc., where provided, must be operating properly to prevent excess heat generation, sparks and premature failure.
  • Page 17 In plants or pumps with cathodic corrosion protection, a small current constantly flows through the construction. This is not permissible on the complete pump or partially-as- sembled machinery without further precautions being taken. ITT should be consulted in this context.

  • Page 18: Transportation And Storage

    2 Transportation and Storage 2 Transportation and Storage 2.1 Inspect the delivery 2.1.1 Inspect the package Inspect the package for damaged or missing items upon delivery. Note any damaged or missing items on the receipt and freight bill. File a claim with the shipping company if anything is out of order. If the product has been picked up at a distributor, make a claim directly to the distributor.
  • Page 19 2.2 Transportation guidelines Table 2: Methods Pump type Lifting method Bare pump without lifting handles Use a suitable sling attached properly to solid points like the casing, the flang- es, or the frames. A bare pump with lifting handles Lift the pump by the handles. A base-mounted pump Use slings under the pump casing and the drive unit, or under the base rails.
  • Page 20 2.2 Transportation guidelines Figure 5: Example of a proper lifting method NOTICE: Do not use this method to lift a Polyshield ANSI Combo with the pump and motor mounted. These items are not designed to handle the heavy weight of the Polyshield system. Doing so may result in equipment damage.

  • Page 21: Storage Guidelines

    2.3 Storage guidelines Figure 7: Example of a proper lifting method with a strap secured around the frame adapter Figure 8: Example of offset overhead motor mount pump proper lifting method 2.3 Storage guidelines 2.3.1 Pump storage requirements Storage requirements depend on the amount of time that you store the unit. The normal packaging is designed only to protect the unit during shipping.

  • Page 22: Frostproofing

    2.3 Storage guidelines Treat bearing and machined surfaces so that they are well preserved. Refer to drive unit and coupling manufacturers for their long-term storage procedures. 2.3.2 Frostproofing Table 3: Situations when the pump is or is not frostproof Situation Condition Operating The pump is frostproof.

  • Page 23: Product Description

    Use of equipment unsuitable for the environment can pose risks of ignition and/or explosion. Ensure the pump driver and all other auxiliary components meet the required area classifica- tion at the site. If they are not compatible, do not operate the equipment and contact an ITT representative before proceeding.
  • Page 24 Use of equipment unsuitable for the environment can pose risks of ignition and/or explosion. Ensure the pump driver and all other auxiliary components meet the required area classifica- tion at the site. If they are not compatible, do not operate the equipment and contact an ITT representative before proceeding.

  • Page 25: Part Description 3198 And Cv 3198

    3.1 General description 3198 and CV 3198 3.1.1 Part description 3198 and CV 3198 Figure 12: 3198 and CV 3198 part description Table 4: Casing This table describes the pump casing parts. Part Description Discharge Top-centerline (3198) Tangential (CV 3198) Casing ventilation (3198 only) Self venting Gasket...

  • Page 26: General Description I-Alert® Equipment Health Monitor

    3.2 General description i-ALERT® Equipment Health Monitor The threads are sealed from the pumped liquid by a PTFE O-ring. Cover Standard cover • The 3198 is supplied with a PFA PTFE-lined cover to fit a clamped outside single seal • The CV 3198 is supplied with a ETFE Lined BigBore cover for cartridge seals Optional covers for 3198 only •...

  • Page 27: Nameplate Information

    - and - resources/literature/ IOMs, https://www.i-alert.com/ or your local ITT Goulds Pumps Sales Rep. Alarm mode The condition monitor enters alarm mode when either vibration or temperature limits are exceeded over two consecutive readings within a user defined period. Alarm mode is indicated with red flashing LED.
  • Page 28 3.3 Nameplate information Nameplate Description (Example: 2x3-8) Bearing frame Provides information about the lubrication system used. If applicable, your pump unit might have an Ex nameplate affixed to the pump, the baseplate, or the discharge head. The nameplate provides information about the Ex specifications of this pump.
  • Page 29 3.3 Nameplate information Table 8: Explanation of the nameplate on the pump casing Nameplate field Explanation IMPLR. DIA. Impeller diameter MAX. DIA. Maximum impeller diameter Rated pump flow, in cubic meters per hour M HD Rated pump head, in meters Rated pump speed, in revolutions per minute MOD.
  • Page 30 Use of equipment unsuitable for the environment can pose risks of ignition and/or explosion. Ensure the pump driver and all other auxiliary components meet the required area classifica- tion at the site. If they are not compatible, do not operate the equipment and contact an ITT representative before proceeding.

  • Page 31: Installation

    Electrical connections must be made by certified electricians in compliance with all inter- national, national, state and local regulations. • Supervision by an authorized ITT representative is recommended to ensure proper instal- lation. Improper installation may result in equipment damage or decreased performance. 4.1.1 Pump location guidelines...

  • Page 32: Foundation Requirements

    4.1 Pre-installation 4.1.2 Foundation requirements Precautions WARNING: Risk of serious injury or death in Ex-classified environments. If the pump is a Model NM3171, NM3196, 3198, CV3198, 3298, V3298, SP3298, 4150, 4550, or 3107, ignition due to static electric discharge is possible from plastic parts that are not properly grounded. If the pumped fluid is non-conductive, drain and flush the pump with a conductive fluid under conditions that will not allow for a spark to be released to the atmosphere.

  • Page 33: Baseplate-Mounting Procedures

    4.2 Baseplate-mounting procedures J-type bolts Item Description Baseplate Shims or wedges Foundation Bolt Figure 19: J-type bolts 4.2 Baseplate-mounting procedures 4.2.1 Prepare the baseplate for mounting Remove all the attached equipment from the baseplate. Clean the underside of the baseplate completely. If applicable, coat the underside of the baseplate with an epoxy primer.

  • Page 34: Install The Baseplate Using Jackscrews

    4.2 Baseplate-mounting procedures Shims or wedges Figure 20: Top view Shims or wedges Figure 21: Side view Lower the baseplate carefully onto the foundation bolts. Put the machinist's levels across the mounting pads of the driver and the mounting pads of the pump.
  • Page 35 4.2 Baseplate-mounting procedures Cut the plates from the bar stock and chamfer the edges of the plates in order to reduce stress concentrations. Put the plates between the jackscrews and the foundation surface. Use the four jackscrews in the corners in order to raise the baseplate above the foundation. Make sure that the distance between the baseplate and the foundation surface is between 19 mm | 0.75 in.
  • Page 36 4.2 Baseplate-mounting procedures Item Description Machinist's levels Driver's mounting pads Foundation bolts Jackscrews Grout hole Pump's mounting pads Figure 23: Level driver mounting pads Turn the center jackscrews down so that they rest on their plates on the foundation surface. Level the pump mounting pads: NOTICE: Remove all dirt from the mounting pads in order to ensure that the correct leveling is achieved.

  • Page 37: Install The Baseplate Using Spring Mounting

    4.2 Baseplate-mounting procedures Check that the driver's mounting pads are level and adjust the jackscrews and the foundation bolts if necessary. The correct level measurement is a maximum of 0.167 mm/m | 0.002 in./ft . 4.2.4 Install the baseplate using spring mounting NOTICE: The spring-mounted baseplate is designed only to support piping loads from thermal expan- sion.

  • Page 38: Install The Baseplate Using Stilt Mounting

    4.2 Baseplate-mounting procedures Upper jam nut Follower Washer Foundation pads Spring Upper adjusting nut Spring stud Figure 25: Example of an installed spring assembly 4.2.5 Install the baseplate using stilt mounting NOTICE: The stilt-mounted baseplate is not designed to support static piping loads. Ensure that the suc- tion and discharge piping are supported individually.
  • Page 39 4.2 Baseplate-mounting procedures Lower the baseplate so that the stilts fit into the foundation cups. Level the baseplate and make the final height adjustments: Loosen the upper jam nuts and adjusting nuts. Adjust the height and level the baseplate by moving the lower adjusting nuts. When the baseplate is level, tighten the top adjusting nuts.

  • Page 40: Baseplate-Leveling Worksheet

    4.2 Baseplate-mounting procedures 4.2.6 Baseplate-leveling worksheet Level measurements 1)____________________ 2)____________________ 3)____________________ 4)____________________ 5)____________________ 6)____________________ 7)____________________ 8)____________________ 9)____________________ 10)___________________ 11)___________________ 12)___________________ 13)___________________ 14)___________________ 15)___________________ 16)___________________ 17)___________________ 18)___________________ Model 3198 and CV3198 i-FRAME Installation, Operation, and Maintenance Manual...

  • Page 41: Install The Pump, Driver, And Coupling

    4.3 Install the pump, driver, and coupling 4.3 Install the pump, driver, and coupling Mount and fasten the pump on the baseplate. Use applicable bolts. Mount the driver on the baseplate. Use applicable bolts and hand tighten. Install the coupling. See the installation instructions from the coupling manufacturer.

  • Page 42: Permitted Indicator Values For Alignment Checks

    The correct tolerances must be used. Failure to do so can result in misalignment. Contact ITT for further information. When dial indicators are used to check the final alignment, the pump and drive unit are correctly aligned when these conditions are true: •...

  • Page 43: Attach The Dial Indicators For Alignment

    4.4 Pump-to-driver alignment Guideline Explanation Check the alignment again after any mechanical adjustments. This corrects any misalignments that an adjust- ment may have caused. 4.4.4 Attach the dial indicators for alignment You must have two dial indicators in order to complete this procedure. Attach two dial indicators on the pump coupling half (X): Attach one indicator (P) so that the indicator rod comes into contact with the perimeter of the driver coupling half (Y).
  • Page 44 4.4 Pump-to-driver alignment Shims Figure 28: Side view of an incorrect vertical alignment Repeat the previous steps until the permitted reading value is achieved. 4.4.5.2 Perform angular alignment for a horizontal correction Set the angular alignment indicator (A) to zero on left side of the driver coupling half (Y), 90° from the top-center position (9 o’clock).
  • Page 45 The specified permitted reading values are valid only at operating temperature. For cold set- tings, other values are permitted. The correct tolerances must be used. Failure to do so can result in misalignment. Contact ITT for further information. 4.4.5.4 Perform parallel alignment for a horizontal correction Refer to the alignment table in "Permitted indicator values for alignment checks"...

  • Page 46: C-Face Adapter

    The specified permitted reading values are valid only at operating temperature. For cold set- tings, other values are permitted. The correct tolerances must be used. Failure to do so can result in misalignment. Contact ITT for further information. 4.4.5.5 Perform complete alignment for a vertical correction A unit is in complete alignment when both the angular indicator (A) and the parallel indicator (P) do not vary by more than 0.05 mm | 0.002 in.

  • Page 47: Grout The Baseplate

    4.5 Grout the baseplate Illustration Figure 32: Example of the C-face adapter (340) Alignment requirements When you use a C-face adapter, you do not have to align the shaft. The rabbeted fittings of the drive unit to the adapter and the adapter to the bearing frame automatically align the shaft to within the specified limits.

  • Page 48: Piping Checklists

    4.6 Piping checklists Item Description Baseplate Shims or wedges Grout Foundation Sleeve Bolt Figure 33: Pour grout into baseplate Fill the remainder of the baseplate with grout, and allow the grout to set for at least 48 hours. Item Description Baseplate Grout Foundation...
  • Page 49 4.6 Piping checklists system, including those from the thermal expansion of the piping, must not exceed the limits of the pump. • Risk of serious personal injury or property damage. Fasteners such as bolts and nuts are critical to the safe and reliable operation of the product. Ensure appropriate use of fasten- ers during installation or reassembly of the unit.
  • Page 50 4.6 Piping checklists Check Explanation/comment Checked If the pump handles liquids at elevat- This helps to prevent misalignment due to linear expansion of ed temperatures, make sure that the the piping. expansion loops and joints are prop- erly installed. Make sure that all piping compo- —...

  • Page 51: Suction-Piping Checklist

    4.6 Piping checklists • Ensure that all fasteners are properly tightened and that there are no missing fasteners. 4.6.2 Suction-piping checklist Performance curve reference Net positive suction head available (NPSH ) must always exceed NPSH required (NPSH ) as shown on the published performance curve of the pump.
  • Page 52 4.6 Piping checklists Liquid source below the pump Check Explanation/comment Checked Make sure that the suction piping is free This helps to prevent the occurrence of air and cavita- from air pockets. tion in the pump inlet. Check that the suction piping slopes up- —...

  • Page 53: Discharge Piping Checklist

    4.6 Piping checklists Example: Suction piping equipment Correct Incorrect Suction pipe sloping upwards from liquid source Air pocket, because the eccentric reducer is not used and because the suction piping does not Long-radius elbow slope gradually upward from the liquid source Strainer Foot valve Eccentric reducer with a level top...
  • Page 54 4.6 Piping checklists Check Explanation/comment Checked If quick-closing valves are installed in the This protects the pump from surges and water hammer. system, check that cushioning devices are used. Example: Discharge piping equipment Correct Incorrect Check valve (incorrect position) Bypass line The isolation valve should not be positioned be- Shut-off valve tween the check valve and the pump.

  • Page 55: Commissioning, Startup, Operation, And Shutdown

    5 Commissioning, Startup, Operation, and Shutdown 5 Commissioning, Startup, Operation, and Shutdown 5.1 Preparation for startup WARNING: • Risk of serious physical injury or death. Exceeding any of the pump operating limits (e.g. - pressure, temperature, power, etc.) could result in equipment failure, such as explosion, seizure, or breach of containment.

  • Page 56: Remove The Coupling Guard

    5.2 Remove the coupling guard CAUTION: When a cartridge mechanical seal is used, ensure that the set screws in the seal locking ring are tightened and that the centering clips have been removed prior to startup. This prevents seal or shaft sleeve damage by ensuring that the seal is properly installed and centered on the sleeve.
  • Page 57 5.2 Remove the coupling guard Driver Remove the nut, bolt, and washers from the driver half of the coupling guard. Remove the driver half of the coupling guard: Slightly spread the bottom apart. Lift upwards. Driver-side coupling guard Annular groove Driver Remove the remaining nut, bolt, and washers from the pump half of the coupling guard.

  • Page 58: Check The Rotation

    5.3 Check the rotation Item Description Annular groove Pump-side end plate Driver Pump half of the coupling guard 5.3 Check the rotation WARNING: • Starting the pump in reverse rotation can result in the contact of metal parts, heat genera- tion, and breach of containment.

  • Page 59: Impeller Clearances (3198 Only)

    5.5 Impeller-clearance setting 5.4.1 Impeller clearances (3198 only) NOTICE: Set the cold (ambient) impeller clearance according to and . Failure to do so may result in heat generation and equipment damage. Higher clearances are used above 93°C | 200°F to prevent the impeller from contacting the casing due to thermal expansion.

  • Page 60: Set The Impeller Clearance - Dial Indicator Method (All Except Cv 3196, Cv 3198, And Lf 3196 Size 1X1.5-4)

    5.5 Impeller-clearance setting Back clearance Front clearance Figure 35: Impeller clearance measurement 5.5.1 Set the impeller clearance - dial indicator method (all except CV 3196, CV 3198, and LF 3196 size 1x1.5-4) WARNING: Failure to disconnect and lock out driver power may result in serious physical injury or death. Always disconnect and lock out power to the driver before performing any installation or main- tenance tasks.

  • Page 61: Set The Impeller Clearance - Dial Indicator Method (Cv 3196 And Cv 3198 Only)

    5.5 Impeller-clearance setting 134A 370C 370D Figure 36: Dial indicator setting Loosen the jam nuts (423) on the jack bolts (370D) , and then back the bolts out about two turns. Tighten the locking bolts evenly (370C), bringing the bearing housing (134A) towards the frame (228) until the impeller contacts the casing.

  • Page 62: Set The Impeller Clearance - Feeler Gauge Method (All Except Cv 3196, Cv3198 And Lf 3196 Size 1X1.5-4)

    5.5 Impeller-clearance setting Dial Indicator Method 134A 370C 370D Figure 37: Impeller clearance setting Loosen each locking bolt (370C) several turns. Loosen the jam nuts (423) on the jack bolts (370D). Tighten the jack bolts (370D) several turns until the impeller contacts the stuffing box cover or seal chamber.

  • Page 63: Set The Impeller Clearance - Feeler Gauge Method (Cv 3196 And Cv 3198 Only)

    5.5 Impeller-clearance setting .015 370C 371A 423B 134A Figure 38: Impeller clearance setting Evenly tighten the locking bolts (370C), bringing the bearing housing (134A) towards the frame (228) until the impeller contacts the casing. Turn the shaft to ensure that there is contact between the impeller and the casing. Use a feeler gauge to set the gap between the three locking bolts (370C) and the bearing housing (134A) to the correct impeller clearance.

  • Page 64: Couple The Pump And Driver

    5.6 Couple the pump and driver .015 370C 371A 423B 134A Figure 39: Impeller clearance setting Loosen the jack bolts (370D) several turns and tighten the locking bolts (370C) to move the impeller away from the stuffing-box cover or seal chamber until there is 1.52 mm | 0.060 in. of clearance. Turn in the jack bolts (370D) and evenly tighten the jam nuts (423).
  • Page 65 5.6 Couple the pump and driver • Refer to driver/coupling/gear manufacturer's installation and operation manuals (IOM) for specific instructions and recommendations. WARNING: The coupling guard used in an Ex classified environment must be properly certified and con- structed from a spark resistant material. Required parts: Figure 40: Required parts De-energize the motor, place the motor in a locked-out position, and place a caution tag at the start-...
  • Page 66 5.6 Couple the pump and driver If the pump size is... Then... STi, MTi Align the pump-side end plate to the bearing frame. You do not need to adjust the impeller. Slightly spread the opening of the coupling guard half and place it over the pump end plate. The annular groove in the guard is located around the end plate.
  • Page 67 5.6 Couple the pump and driver Figure 43: Captured hardware component assembly Install the bolt retainer over the exposed end of the bolt, and the U-Nut into the slot in the coupling guard if it was not done from the factory. Thread bolt into the U-Nut and tighten firmly.
  • Page 68 5.6 Couple the pump and driver End plate Driver Figure 45: Placement of driver half of coupling guard Hand-tighten only. Repeat Steps 4 through 6 for the rear end of the coupling guard half. The hole is located on the driver-side of the coupling guard half. 10.

  • Page 69: Bearing Lubrication

    5.6 Couple the pump and driver 5.6.2 Bearing lubrication WARNING: Risk of explosive hazard and premature failure from sparks and heat generation. Ensure bear- ings are properly lubricated prior to startup. NOTICE: Grease can settle in equipment left idle leaving bearings improperly lubricated. Check the greasing on a pump that has been out of service for a long period of time and re-grease if nec- essary.

  • Page 70: Shaft-Sealing Options

    5.7 Shaft-sealing options Brand Lubricant type Shell Turbo T 68 Sunoco Sunvis 968 Royal Purple SYNFILM ISO VG 68 Synthetic Oil 5.6.2.4 Lubricate the bearings with oil WARNING: Risk of explosive hazard and premature failure from sparks and heat generation. Ensure bear- ings are properly lubricated prior to startup.

  • Page 71: Mechanical Seal Options

    5.7 Shaft-sealing options This model uses these types of shaft seals: • Cartridge mechanical seal • Conventional inside-component mechanical seal • Conventional outside-component mechanical seal • Packed-stuffing-box option 5.7.1 Mechanical seal options Pumps are usually shipped with mechanical seals installed. If they are not, then refer to the mechanical seal manufacturer's installation instructions.

  • Page 72: Install The Shaft Guard - If Provided

    5.8 Install the shaft guard - if provided 5.8 Install the shaft guard - if provided WARNING: • Running a pump without safety devices exposes operators to risk of serious personal in- jury or death. Never operate a unit unless appropriate safety devices (guards, etc.) are properly installed.

  • Page 73: Other Methods Of Priming The Pump

    5.10 Start the pump Close the discharge isolation valve. Open the air vent valves in the casing. Open the valve in the outside supply line until only liquid escapes from the vent valves. Close the vent valves. Close the outside supply line. Item Description By-pass line Item Description...

  • Page 74: I-Alert® Equipment Health Monitor

    5.11 i-ALERT® Equipment Health Monitor NOTICE: • Risk of equipment damage due to dry operation. Immediately observe the pressure gauges. If discharge pressure is not quickly attained, stop the driver immediately, reprime, and attempt to restart the pump. • To avoid risk of equipment damage, observe the pump for vibration levels, bearing tem- perature, and excessive noise.

  • Page 75: Pump Operation Precautions

    5.12 Pump operation precautions 5.12 Pump operation precautions General considerations WARNING: • Risk of serious personal injury or property damage. Dry running may cause rotating parts within the pump to seize to non-moving parts. Do not run dry. • Risk of explosion and serious physical injury. Do not operate pump with blocked system piping or with suction or discharge valves closed.

  • Page 76: Shut Down The Pump

    5.13 Shut down the pump the pump. Note that different liquids freeze at different temperatures. Some pump designs do not drain completely and may require flushing with a liquid that doesn't freeze. 5.13 Shut down the pump WARNING: Precautions must be taken to prevent physical injury. The pump may handle hazardous and/or toxic fluids.

  • Page 77: Make The Final Alignment Of The Pump And Driver

    5.16 Make the final alignment of the pump and driver 5.16 Make the final alignment of the pump and driver WARNING: • Failure to disconnect and lock out driver power may result in serious physical injury or death. Always disconnect and lock out power to the driver before performing any installation or maintenance tasks.

  • Page 78: Maintenance

    6 Maintenance 6 Maintenance 6.1 Maintenance schedule Maintenance inspections A maintenance schedule includes these types of inspections: • Routine maintenance • Routine inspections • Three-month inspections • Annual inspections Shorten the inspection intervals appropriately if the pumped fluid is abrasive or corrosive or if the envi- ronment is classified as potentially explosive.

  • Page 79: Bearing Maintenance

    These bearing lubrication sections list different temperatures of the pumped fluid. If the pump is Ex-certified and the temperature of the pumped fluid exceeds the permitted temperature values, then consult your ITT representative. For Ex applications bearing replacement (all) is recommended after 17,500 hours of opera- tion.

  • Page 80: Regrease The Grease-Lubricated Bearings

    6.2 Bearing maintenance 6.2.1.1 Oil volumes Oil volume requirements This table shows the required amount of oil for oil-lubricated bearings. Frame Qts. 1400 6.2.1.2 Acceptable oil for lubricating bearings Acceptable lubricants Table 13: Acceptable lubricants Brand Lubricant type Chevron GST Oil 68 Exxon Teresstic EP 68 Mobil...

  • Page 81: Lubricate The Bearings After A Shutdown Period

    6.2 Bearing maintenance Make sure that the frame seals are seated in the bearing housing. If they are not, press them in place with the drains located at the bottom. Reinstall the grease-relief plugs. Wipe off any excess grease. Recheck the alignment. The bearing temperature usually rises after you regrease due to an excess supply of grease.

  • Page 82: Shaft Seal Maintenance

    Cartridge seals installed by the user require disengagement of the hold- ing clips prior to operation, allowing the seal to slide into place. If the seal has been installed in the pump by ITT, these clips have already been disengaged. Other mechanical seal types For other types of mechanical seals, refer to the instructions provided by the seal manufacturer for instal- lation and setting.

  • Page 83: Tools Required

    6.4 Disassembly • Risk of serious personal injury. Applying heat to impellers, propellers, or their retaining devices can cause trapped liquid to rapidly expand and result in a violent explosion. This manual clearly identifies accepted methods for disassembling units. These methods must be adhered to.

  • Page 84: Remove The Coupling

    6.4 Disassembly electric discharge is possible from plastic parts that are not properly grounded. If the pumped fluid is non-conductive, drain and flush the pump with a conductive fluid under conditions that will not allow for a spark to be released to the atmosphere. CAUTION: •...
  • Page 85 6.4 Disassembly 408A Figure 53: Back pull-out assembly removal (oil lubricated bearing frame) Oil analysis should be part of a preventive maintenance program that determines the cause of a fail- ure. Save the oil in a clean container for inspection. The back pull out assembly consists of all parts except the casing (100).
  • Page 86 6.4 Disassembly Figure 55: Back pull-out assembly removal (without C-face adapter) Remove the hold-down bolts of the bearing frame foot. Remove the casing bolts. WARNING: • Risk of severe physical injury or death from explosion of trapped liquid. Never use heat to remove parts unless explicitly stated in this manual.

  • Page 87: Remove The Coupling Hub

    6.4 Disassembly Clean surfaces prevent the casing gasket from partially adhering to the casing due to binders and adhesives in the gasket material. 6.4.6 Remove the coupling hub Clamp the frame adapter securely to the workbench. Remove the coupling hub. Mark the shaft for relocation of the coupling hub during reassembly.

  • Page 88: Shaft Guard Removal (If Provided)

    6.4 Disassembly Shaft Wrench Figure 58: Loosen impeller Repeat step 3 until the impeller becomes loose. Remove and discard the impeller O-ring (412A). You will insert a new O-ring during reassembly. 412A Figure 59: O-ring for models 3196, HT 3196, NM 3196, 3198, CV 3198 and 3796 If the impeller cannot be removed by the previous methods, cut the shaft between the gland and the frame, remove the impeller, stuffing-box cover, gland, sleeve, and shaft end as a unit.

  • Page 89: Seal-Chamber Cover Removal

    6.4 Disassembly Figure 60: Shaft guard removal 6.4.8.2 Remove the shaft guard (MTi/LTi, XLTi/i17) Remove the bolt for each shaft guard half that mounts the halves to the brackets on each side. Do not remove the clip that retains the bolt on the guard half to maintain a captive fastener. Retain each guard half with fasteners for reinstallation.

  • Page 90: Remove The Seal-Chamber Cover And Backplate (Nm 3196, 3198, Cv 3198)

    6.4 Disassembly Model Procedure NM 3196, 3198, CV 3198 Remove the seal-chamber cover and/or backplate. 6.4.10 Remove the seal-chamber cover and backplate (NM 3196, 3198, CV 3198) Remove the gland nuts or seal-chamber stud nuts (355). Remove the backplate stud nuts (370H). Remove the backplate (184).

  • Page 91: Remove The Frame Adapter (Mti)

    6.4 Disassembly Figure 64: Stationary seat and seal chamber removal 6.4.11 Remove the frame adapter (MTi) The 3198 frame adapter is not interchangeable with the adapter of any other model. Remove the dowel pins (469B) and the bolts (370B). Remove the frame adapter (108). Remove and discard the gasket (360D).
  • Page 92 6.4 Disassembly 228A 370D 370C Figure 66: Shaft assembly removal Remove the jack screws (370D) with nuts (423). Remove the bearing housing O-ring (496) and the bearings. Remove the outboard bearing retaining snap ring (361A). 370D 423 361A 168A Figure 67: Outboard bearing retaining snap ring removal Remove the bearing housing (134) and bearings (112A and 168A) from the shaft (122).
  • Page 93 6.4 Disassembly NOTICE: Use force only on the inner race when pressing bearings from the shaft. Failure to do so may result in equipment damage. NOTICE: Do not reuse bearings if removed from shaft. Doing so may result in equipment damage. Re- place the bearings before reassembly.
  • Page 94 6.4 Disassembly 236A 370D 253B Figure 71: Jack screw removal Remove the bearing housing O-ring (496). Remove the clamp ring screws (236A) and separate the clamp ring (253B) from the bearing hous- ing (134). You must remove the bearings before you can remove the clamp ring from the shaft. Remove the bearing housing (134) and the bearings (112A and 168A) from the shaft (122).

  • Page 95: Disassemble The Bearing Frame

    6.4 Disassembly NOTICE: Use force only on the inner race when pressing bearings from the shaft. Failure to do so may result in equipment damage. NOTICE: Do not reuse bearings if removed from shaft. Doing so may result in equipment damage. Re- place the bearings before reassembly.

  • Page 96: Guidelines For I-Alert® Equipment Health Monitor Disposal

    6.5 Pre-assembly inspections ® 6.4.15 Guidelines for i-ALERT Equipment Health Monitor disposal Precautions WARNING: • Explosive hazard and risk of personal injury. Heating to high temperatures could cause combustion of the condition monitor. Never heat the condition monitor to temperatures in excess of 149°C | 300°F or dispose of in a fire.

  • Page 97: Replacement Guidelines

    6.5 Pre-assembly inspections 6.5.1 Replacement guidelines Casing check and replacement WARNING: Risk of death or serious injury. Leaking fluid can cause fire and/or burns. Inspect and ensure gasket sealing surfaces are not damaged and repair or replace as necessary. Inspect the casing for cracks and excessive wear or pitting. Thoroughly clean gasket surfaces and align- ment fits in order to remove rust and debris.
  • Page 98 6.5 Pre-assembly inspections This table shows the criteria for replacing the impeller: Impeller parts When to replace Impeller vanes • When grooved deeper than 1.6 mm | 1/16 in., or • When worn evenly more than 0.8 mm | 1/32 in. Pumpout vanes When worn or bent more than 0.8 mm | 1/32 in.

  • Page 99: Shaft And Sleeve Replacement Guidelines

    6.5 Pre-assembly inspections 6.5.1.1 Fastening WARNING: Risk of serious personal injury or property damage. Fasteners such as bolts and nuts are criti- cal to the safe and reliable operation of the product. Ensure appropriate use of fasteners during installation or reassembly of the unit. •...

  • Page 100: Bearing-Frame Inspection

    6.5 Pre-assembly inspections • Replace the shaft and sleeve if any grooves or pits are found. 6.5.3 Bearing-frame inspection Checklist Check the bearing frame for these conditions: • Visually inspect the bearing frame and frame foot for cracks. • Check the inside surfaces of the frame for rust, scale, or debris. Remove all loose and foreign ma- terial.

  • Page 101: C-Face Adapter Inspection

    6.5 Pre-assembly inspections 6.5.4 C-face adapter inspection Checklist • Visually inspect the C-face adapter (340) for cracks. • Check all surfaces for rust, scale, or debris and remove all loose and foreign material. • Check for corrosion or pitting. This figure shows the areas to inspect for cracks on the C-face adapter. Figure 83: C-face adapter inspection locations 6.5.5 Seal chamber and stuffing box cover inspection Checklist...
  • Page 102 6.5 Pre-assembly inspections Figure 84: 3198 backplate Figure 85: 3198 seal chamber ™ Figure 86: 3198 and CV 3198 BigBore Model 3198 and CV3198 i-FRAME Installation, Operation, and Maintenance Manual...

  • Page 103: Bearings Inspection

    6.5 Pre-assembly inspections 6.5.6 Bearings inspection Condition of bearings Do not reuse bearings. The condition of the bearings provides useful information on operating conditions in the bearing frame. Checklist Perform these checks when you inspect the bearings: • Inspect the bearings for contamination and damage. •...

  • Page 104: Bearing Fits And Tolerances

    6.6 Reassembly 6.5.8 Bearing fits and tolerances Table 18: Bearing fits and tolerances table This table references the bearing fits and tolerances according to the ABEC I standard. STi millimeters | inches MTi millimeters | inches Shaft OD 35.014 | 1.3785 45.014 | 1.7722 Inboard 35.004 | 1.3781...
  • Page 105 6.6 Reassembly NOTICE: There are several methods used to install bearings. The recommended method is to use an induction heater that heats as well as demagnetizes the bearings. Failure to use this method may result in equipment damage. Prepare the bearing frame (228) as follows (see the illustration): Install the oil-fill plug (113A).
  • Page 106 6.6 Reassembly The locknut prevents the bearing from moving away from the shaft shoulder as it cools. Remove the bearing locknut (136) after the bearing (112) cools. Put the lockwasher (382) onto the shaft (122). Thread the locknut (136) onto the shaft (122) and tighten it until it is snug. Bend the tangs of the lockwasher into the slots of the locknut.

  • Page 107: Assemble The Rotating Element And The Bearing Frame (Sti And Mti With Duplex Bearings)

    6.6 Reassembly 332A 361A 168A Figure 90: Outboard labyrinth oil-seal reassembly 10. Install the shaft assembly into the bearing frame as follows (see the illustration): Coat the outside of the bearing housing (134) with oil. Coat all the internal surfaces of the bearing frame (228) with oil. Install the shaft assembly into the bearing frame (228).
  • Page 108 6.6 Reassembly CAUTION: Risk of physical injury from hot bearings. Wear insulated gloves when using a bearing heater. NOTICE: Ensure that the pipe threads are clean. Apply thread sealant to the plugs and fittings. Failure to do so may result in oil leaks and equipment damage. NOTICE: There are several methods used to install bearings.
  • Page 109 6.6 Reassembly The duplex bearings are mounted back-to-back. Make sure that the orientation of the bearings are correct. Inspect the shaft (122) to ensure that it is clean, dimensionally correct, and is free of nicks and burrs. Figure 93: Shaft inspection Lightly coat the bearing seating with a thin film of oil.
  • Page 110 6.6 Reassembly Coat the bore of the bearing housing (134) with oil. Put the bearing housing (134) onto the shaft. Do not use force. 253B 168A 112A Figure 95: Bearing housing reassembly 10. Prepare the shaft for assembly as follows (see the illustration): Place the bearing-clamp ring (253B) onto the shaft (122).

  • Page 111: Assemble The Frame

    6.6 Reassembly Install the clamp bolts (370C) in the bearing housing (134) and tighten by hand. Install the jack bolts (370D) with the locknuts (423) in the bearing housing (134) and tighten by hand. 6.6.3 Assemble the frame Support the frame assembly in a horizontal position. Check the shaft-end play by moving the shaft forward and backward by hand, and note any indica- tor movement.
  • Page 112 6.6 Reassembly Figure 97: Check shaft end play Check the shaft-sleeve (126) runout. Install the shaft sleeve. Thread the impeller on the shaft until hand tight. Rotate the shaft 360º. If the total indicator reading is greater than 0.051 mm | 0.002 in., then disassemble the shaft sleeve and determine the cause.
  • Page 113 6.6 Reassembly Figure 98: Remove impeller and shaft sleeve Check the frame-face run-out by rotating the shaft so that the indicator measures the fit for 360º. If the total indicator reading is greater than 0.025 mm | 0.001 in., then disassemble and determine the cause.
  • Page 114 6.6 Reassembly 360D 496B 370B Figure 100: Align bolt holes and dowel locations Install the dowel pins (469B) and bolts (370B). Tighten the bolts in a criss-cross pattern accord- ing to the specifications in the bolt torque values table. Rotate the shaft 360º to check the adapter fit. If the total indicator reading is greater than 0.13 mm | 0.005 in., then determine the cause and cor- rect it before you proceed.

  • Page 115: Inpro Labyrinth Oil Seal Description

    6.6 Reassembly 333A Figure 102: Position labyrinth oil-seal drain slots 6.6.4 INPRO labyrinth oil seal description Description The INPRO VBXX-D Labyrinth Oil Seal consists of the rotor (1), the stator (2), and the VBX Ring (3). The rotor (1) fits over the shaft and is held in place by an elastomeric drive ring (4). The drive ring causes the rotor to turn with the shaft and provides a positive, static seal against the shaft.

  • Page 116: Assemble The C-Face Adapter

    6.6 Reassembly NOTICE: The edges of the keyway can be sharp. Cover the keyway with tape. Failure to do so may re- sult in damaging the o-ring and/or labyrinth seal. Lightly lube the shaft and the drive ring (4) with lubricant. Lubricant helps in the installation process.
  • Page 117 6.6 Reassembly Methods for sealing the shaft These sections discuss the methods that you can use to seal the shaft. • Seal the shaft with a dynamic seal. • Seal the shaft with a cartridge-mechanical seal. • Seal the shaft with a conventional inside-component mechanical seal. •...
  • Page 118 6.6 Reassembly 370H Figure 104: Assemble seal-chamber Check the seal-chamber cover runout. Figure 105: Check seal-chamber cover runout Rotate the indicator through 360º. If the total indicator reading is greater than 0.13 mm | 0.005 in- ches, determine the cause and correct the issue before you proceed. Install the shaft sleeve (126) (metal sleeve only).
  • Page 119 6.6 Reassembly 412A Figure 106: Install shaft sleeve Mark the shaft and sleeve at the face of the seal chamber. Continue the complete reassembly of the pump, except for the mechanical seal. Set the impeller clearance. Refer to the Impeller Clearance Setting section for more information. Scribe a line on the marked shaft and sleeve at the face of the seal chamber.
  • Page 120 6.6 Reassembly 370H Figure 107: Seal-chamber cover or backplate installation Check the seal-chamber cover runout. Figure 108: Check seal-chamber cover runout Rotate the indicator through 360 degrees. If the total indicator reading is greater than 0.13 mm | 0.005 in., determine the cause and correct the issue before you proceed. Install the shaft sleeve (126) (metal sleeve only).

  • Page 121: Shaft Guard Installation (If Provided)

    6.6 Reassembly 412A Figure 109: Install shaft sleeve Mark the shaft and sleeve at the face of the seal chamber. Continue the complete reassembly of the pump, except for the mechanical seal. Set the impeller clearance. Refer to the Impeller clearance setting section for more information. Scribe a line on the marked shaft and sleeve at the face of the seal chamber.
  • Page 122 6.6 Reassembly Item Description Bolt Retainer, 2 required Shaft Guard Half, 2 required 1.5/16-18 x .62 in. Hex Flange Screw, 2 required – shaft guard half to bearing frame Figure 110: Required parts: STi Ensure that the mounting bolt for each shaft guard half is inserted with the bolt retainer in place for captive hardware.
  • Page 123 6.6 Reassembly • Electrical connections must be made by certified electricians in compliance with all international, national, state, and local rules. • Refer to driver/coupling/gear manufacturer's installation and operation manuals (IOM) for specific instructions and recommendations. Item Description Bolt Retainer, 2 required Shaft Guard Half, 2 required 5/16-18 x .62 in.

  • Page 124: Install The Impeller

    6.6 Reassembly 6.6.9 Install the impeller CAUTION: Risk of physical injury from sharp edges. Wear heavy work gloves when handling impellers. Install the impeller. Pump size Action STi, MTi Install the impeller (101). Use a new impeller O-ring (412A). Attach a shaft wrench and a coupling key on the shaft. When the impeller (101) makes firm contact with the sleeve (126), raise the shaft wrench (counterclockwise, viewed from the impeller end of the shaft) off of the bench and slam it down (clockwise, viewed from the impeller end of shaft).

  • Page 125: Post-Assembly Checks

    6.6 Reassembly 370C 370D Figure 115: Loosen clamp bolts When you reach a 0.76 mm | 0.030 in. clearance, tighten the clamp bolts (370C), jack bolts (370D), and lock nuts (423). This approximates the impeller position when it is set to 0.38 mm | 0.015 in. from the casing. Per- form a final impeller adjustment after you install the impeller into the casing.

  • Page 126: Install The Back Pull-Out Assembly (Except Ht 3196)

    6.6 Reassembly • Rotate the shaft by hand in order to make sure that it rotates easily and smoothly and that there is no rubbing. • Open the isolation valves and check the pump for leaks. 6.6.11 Install the back pull-out assembly (except HT 3196) WARNING: Lifting and handling heavy equipment poses a crush hazard.
  • Page 127 6.6 Reassembly Figure 119: Install back pull-out assembly Install and then hand-tighten the casing bolts (370). Refer to the bolt torque values for information on how to tighten the casing bolts. Install and tighten the casing jackscrews (418). NOTICE: Do not overtighten the casing jackscrews. Doing so may result in equipment damage. 370F Figure 120: Install and tighten casing jackscrews Reinstall the shims under the frame foot and tighten the frame foot to the baseplate.

  • Page 128: Assembly References

    6.6 Reassembly Frame Total travel STi, MTi, LTi 0.76 mm to 1.65 mm | 0.030 in. to 0.065 in. 4x6-10H only 1.53 mm to 2.29 mm | 0.060 in. to 0.090 in. XLTi, i-17 1.02 mm to 2.67 mm | 0.040 in. to 0.105 in. Adjust the impeller clearance.

  • Page 129: Spare Parts

    6.6 Reassembly Casing bolt 3198 3198 CV Material Spec. Diameter (in.) Location Pump size A193 B7 w/Xylan 1424 coating Dry Bolt 8" STX .500" 61 Nm | 45 lb-ft 61 Nm | 45 lb-ft Casing bolts (370) 10" MTi .625" 75 Nm | 55 lb-ft 13"...

  • Page 130: Interchangeability Drawings

    6.7 Interchangeability drawings • Inboard labyrinth-seal rotary O-ring (497H) • Inboard labyrinth-seal stationary O-ring (497J) • Lantern ring half (105) (packed stuffing box) • Stuffing box packing (106) (packed stuffing box) • Packing gland (107) (packed stuffing box) • Impeller gasket (428D) (XLT-i and i17 only) 6.7 Interchangeability drawings 6.7.1 3198 and CV 3198 interchangeability Table 26: 3198 and CV 3198 interchangeability drawing...

  • Page 131: Convert From Greased-For-Life Or Regreaseable To Oil-Lubricated Bearings

    6.8 Lubrication conversion Table 27: Lubricating-grease requirements Most pumps use Sunoco 2EP grease. High temperature units with a pumpage temperature greater than 177°C | 350° F use Mobil SCH32. This table shows which brand of grease to use when lubricating the pump. Pumpage temperature less than 177°C | 350°F Pumpage temperature greater than 177°C | 350°F NGLI consistency 2...

  • Page 132: Conversion From Flood-Oil To Pure-Oil Mist

    Ensure that the pipe threads are clean. Apply thread sealant to the plugs and fittings. Failure to do so may result in oil leaks and equipment damage. Consult your local ITT representative for further information on this topic. 6.8.3.1 Oil mist systems...

  • Page 133: Convert From Flood Oil To Regreaseable

    6.9 3198 and CV 3198 PTFE sleeve Figure 122: Replace two plugs (408H) with two to oil mist connectors Oil-mist systems The ITT X i-Series Power Ends accepts a variety of oil-mist systems. These are the two popular systems that you can use: •...
  • Page 134 6.9 3198 and CV 3198 PTFE sleeve You can cut the sleeve lengthwise with a sharp knife. Thoroughly clean the shaft and pay particular attention to the knurled area of the shaft under the sleeve. The replacement sleeve does not have the same dimensions as the sleeve that you removed until you mount and then machine it on the shaft.

  • Page 135: Troubleshooting

    The shaft is rotating in the wrong direction. Change the rotation. The rotation must match the arrow on the bearing housing or pump casing. The foot valve or suction pipe opening is Consult an ITT representative for the proper not submerged enough. submersion depth. Use a baffle in order to eliminate vortices.

  • Page 136: Alignment Troubleshooting

    If this does liquid. not help, then contact your ITT representa- tive. The liquid is heavier than expected. Check the specific gravity and viscosity. The stuffing-box packing is too tight.
  • Page 137 7.3 Assembly troubleshooting Symptom Cause Remedy There is excessive vane-tip runout of The vane is bent. Replace the impeller. the impeller. Model 3198 and CV3198 i-FRAME Installation, Operation, and Maintenance Manual...

  • Page 138: Parts List And Cross-Sectionals

    8 Parts List and Cross-Sectionals 8 Parts List and Cross-Sectionals 8.1 Parts list Table 29: Construction material and quantity Item Quantity Part name Pump Material CV 3198 Pump Material 3198 Duplex SS/ETFE D.I./PFA Casing 9A62 9639 Impeller 9A61 6944 Frame Adapter 1013 112A Outboard Bearing...
  • Page 139 8.1 Parts list Item Quantity Part name Pump Material CV 3198 Pump Material 3198 Duplex SS/ETFE D.I./PFA 408L Plug—Oil Cooler Inlet 2210 408M Plug—Oil Cooler Outlet 2210 408N Plug—Sight Glass 2210 Jack Bolt—Adapter-to-Case 2228 Jam Nut—Bearing Housing Jack Bolt 2228 423B Hex Nut—Stuffing Box Cover to Adapter 2228...
  • Page 140 8.1 Parts list 370B 372T 761B 360D 497H 497J 408W 113A 361A 370C 497G 497F 370H 332A 412A 370D Either side 423B 408A 333A 228A 370E 469B 370F 408L 408N 408M Figure 123: 3198 cross-sectional drawing Model 3198 and CV3198 i-FRAME Installation, Operation, and Maintenance Manual...
  • Page 141 8.1 Parts list Figure 124: CV 3198 cross-sectional drawing 372T 408W 761B 408W 113A 408N 333A 408L 361A 370D 497H 332A 497J 112A 408L 370C 497F 497G Figure 125: STi bearing-frame exploded view Model 3198 and CV3198 i-FRAME Installation, Operation, and Maintenance Manual...
  • Page 142 8.1 Parts list 372T 408W 761B 113A 408W 408N 408M 168A 370B 370D 497F 408L 408A 370E 361A 112A 370C 497G 332A Figure 126: MTi bearing-frame exploded view The finned-tube oil cooler is standard on HT 3196 and optional on all other models. 555C 555B 551D...

  • Page 143: Other Relevant Documentation Or Manuals

    9 Other Relevant Documentation or Manuals 9 Other Relevant Documentation or Manuals 9.1 For additional documentation For any other relevant documentation or manuals, contact your ITT representative. Model 3198 and CV3198 i-FRAME Installation, Operation, and Maintenance Manual...

  • Page 144: Local Itt Contacts

    Vertical Products Operation +1 562-949-2113 +1 562-695-8523 3951 Capitol Avenue City of Industry, CA 90601-1734 Asia Pacific ITT Fluid Technology Asia Pte Ltd +65 627-63693 +65 627-63685 1 Jalan Kilang Timor #04-06 Singapore 159303 Asia Pacific ITT Goulds Pumps Ltd...
  • Page 145 Visit our website for the latest version of this document and more information: http://www.gouldspumps.com ITT Goulds Pumps, Inc. 240 Fall Street Seneca Falls, NY 13148 Form IOM.3198.i-FRAME.en-US.2023-08 ©2023 ITT Inc. The original instruction is in English. All non-English instructions are translations of the original instruction.
