Summary of Contents for HYDRO-RAIN HRC-400

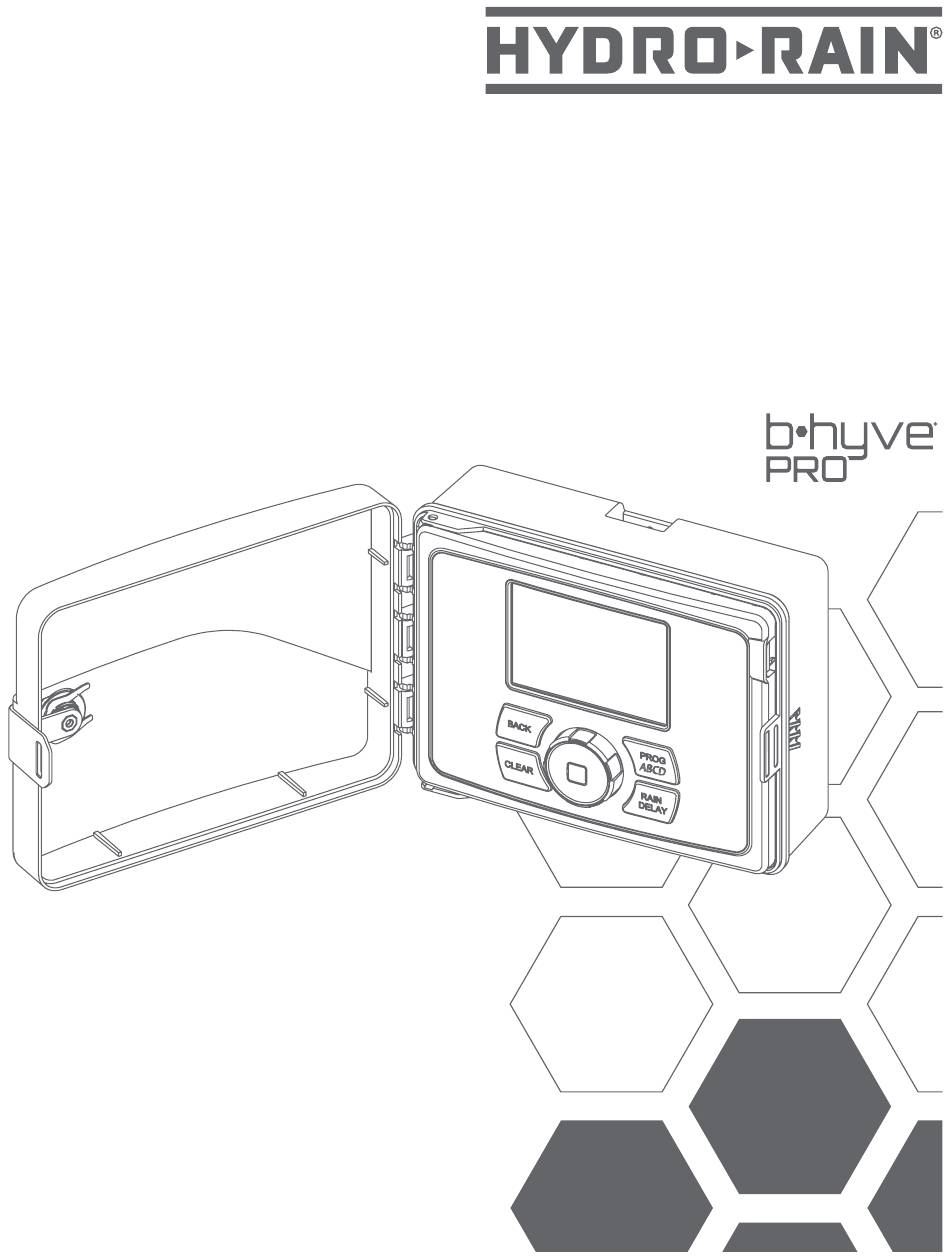

- Page 1 Welcome to the HRC 400 Smart Wi-Fi Sprinkler Controller Powered by User’s Guide 04080-24 Rev A...
-
Page 2: Table Of Contents
Table of Contents Parts Sprinkler Controller .................2 Manual Controls ................2 Digital Display ..................3 B-hyve Pro App ..................3 FOR OPTIMUM CONTROLLER PERFORMANCE, CONNECT TO Installation Selecting a Location ................ 4 WI-FI TO RECEIVE THE LATEST Mounting the Controller ............... 4 CONTROLLER UPDATES. Wiring the Sprinkler Valves ............5 Wiring the B-hyve Controller ............5 Connecting Electrical Power ............ -
Page 3: Sprinkler Controller

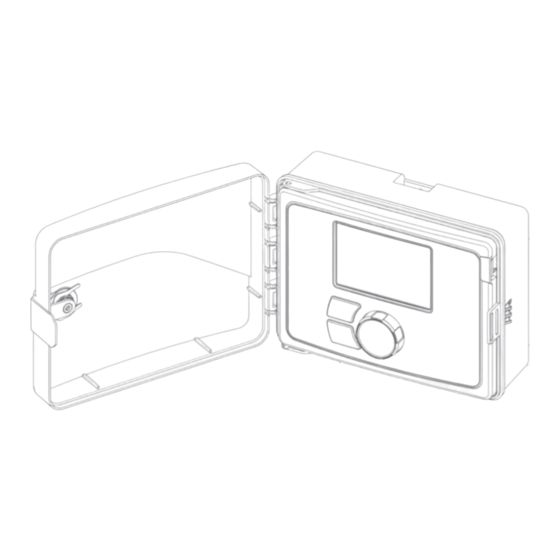

Parts Sprinkler Controller Weather Resistant Cover Lock and Latch Digital Display Dial Swing Door Panel Installation Hardware Reset Button Transformer Battery Compartment Size 0 Screwdriver MAC ID Manual Controls BACK: PROG ABCD: To go back a step or To move to a different return to main menu program See page 8... -
Page 4: Digital Display
Digital Display Indicates that water There is no AC power Indicates a short in a zone budgeting has been adjusted getting to the controller Shows signal strength of Bluetooth and Indicates a zone indicates that it is connected. is watering Solid–shows signal strength of Wi-Fi Indicates a low battery and indicates that it is connected... -
Page 5: Wi-Fi To Receive The Latest Selecting A Location
Installation Selecting a Location When choosing a location for your Controller, consider the following: Minimum Signal Choose a location near an electrical outlet. Locate it where there is a good Wi-Fi signal Tip: You can check this using a smart phone. (Find Important: Controller is weather-resistant to UL-50 a location that has a minimum of two bars.) and ETL®Listings, but should not be placed in areas... -
Page 6: Wiring The Sprinkler Valves
Important: All wires should be joined together using wire nuts, solder, and/or vinyl tape. In wet environments like a valve box it is recommended to use Hydro-Rain Speed Seal™ wire connectors to prevent corrosion of the connection and for protection from water infiltration. -
Page 7: Connecting Electrical Power
Connecting Electrical Power Once your HRC 400 Controller is plugged into the power source, it will automatically look to pair with your smart device. In the top left corner of the controller display the Wi-Fi icon will begin a graduated blinking sequence. This indicates that your Controller is ready to pair with a smart device. -
Page 8: Replacing The Battery
Replacing the Battery Use a screwdriver under the designated tab to lift and remove the battery cover. To remove the battery, lift on the edge of the coin cell battery using your fingers. DO NOT use a screwdriver or other metal object. Insert a new CR2032 battery at an angle and press to click the battery into place. -
Page 9: Program Button (Prog Abcd)
Program Button (ABCD) Your sprinkler controller provides the flexibility of using 4 independent programs (A,B,C,D). A program is where you store all of your sprinkler settings. It consists of a group of valves set to specific start times and run times. Multiple programs allow you to run different valves on different days with different run times. -
Page 10: Start Time
Start Time This is the time of day that your programmed watering starts, the first zone will begin watering at the 1st start time. You can set up to 4 start times. When a start time is set before the previous program has completed, that start time will be delayed, and will start upon completion of the previous program. -
Page 11: Bhyve.hydrorain.com How Often
How Often There are three options when determining how often (what days or intervals) the controller will water. Days of the week (Mon, Tues, Wed, etc.) Intervals (Every “X” number of days) Odd or Even Days Days of the Week 1. -
Page 12: Auto
Auto Budget The water budgeting feature makes it easy to change all of The controller should be in AUTO during the irrigation season your run times without having to change them one by one. and OFF in the winter months or the non-irrigation months. This is perfect for adjusting all zones for seasonal changes. -
Page 13: Rain Sensor
Term Definition To water a specific zone 1. Turn the dial until the selection box is on MANUAL. START TIME 2. Press the dial. You will now see ALL show in the display. The time the program begins watering 3. Turn the dial past the A, B, C, D programs until STATION the first programmed station. -
Page 14: Troubleshooting
Troubleshooting Problem Possible cause 1. Faulty solenoid connection 2. Wire damaged or severed One or more valves do not turn on 3. Flow control stem screwed down, shutting valve off 4. Programming is incorrect 1. Water pressure is too high Stations turn on when they are not supposed to 2. -
Page 15: Specifications
Specifications IMPORTANT INFORMATION ABOUT YOUR RIGHTS AND OBLIGATIONS, AS WELL AS LIMITATIONS AND EXCLUSIONS THAT MAY APPLY TO YOU. 1. YOUR RIGHTS AND THIS LIMITED WARRANTY Rated input: This Limited Warranty gives you specific legal rights. You may also have other legal rights Australia—240V AC 50/60Hz 0.15A that vary by state, province or jurisdiction.
