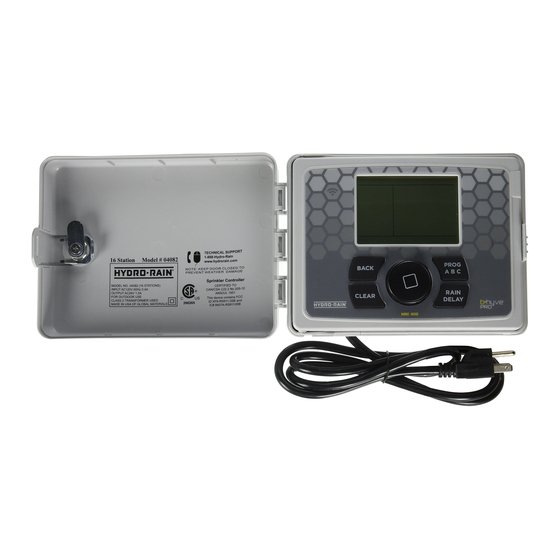

- Page 1 High Station Count Controller A B-hyve® Pro Connected Device Beta unit Installation and Operation Guide MODEL: HSC-1600-M...
-
Page 2: Symbol Definition
SYMBOL DEFINITION FCC AND IC STATEMENT This device complies with Part 15 of the FCC Rules and Industry Canada DÉCLARATION DE FCC ET L’IC license exempt RSS standards. Operation is subject to the following two Cet appareil est conforme à la section 15 de la Règlementation de la FCC et conditions: (1) This device may not cause harmful interference, and (2) this la norme RSS d’Industry Canada. -
Page 3: Table Of Contents
SYMBOL DEFINITION ........................2 FCC AND IC STATEMENT ......................... 2 DÉCLARATION DE FCC ET L’IC ..................... 2 Safety Information ........................3 Welcome to the Hydro-Rain Family ....................6 HSC Controller ..........................6 Controller Features ........................6 B-hyve Pro ............................6 Need Help? ............................ - Page 4 Manual Operation ........................11 Sensor Alarm Bypass ......................... 11 Fault Alarms ..........................11 VIEW FLOW ..........................12 Setting up flow .......................... 12 Functions and Definitions ......................13 Stop Menu ..........................13 System Off ..........................13 Pause ............................. 13 Stop All Irrigation ........................13 Timed Off ..........................
- Page 5 Set a station as a Master Valve ....................17 Set NC/NO valve operation ....................... 17 Reset menu ........................... 18 Reset Programs ......................... 18 Reset Flow ..........................18 Reset Programs and Flow ......................18 Factory Reset ..........................18 System Update .......................... 18 Networking menu .........................
-
Page 6: Welcome To The Hydro-Rain Family
Need Help? Contact Hydro-Rain Product Support The Hydro-Rain Product Support team is here to help, whether it's setting up your new controller, programming or troubleshooting questions, our friendly staff is here to assist. We have a trained bilingual English and Spanish speaking staff who can provide you the technical... -
Page 8: Hsc Hardpoints
HSC Hardpoints Physical touchpoints to use the HSC: 1. Ethernet Connection Used for a hardwire internet connection 2. USB Power Port A charger your phone or tablet. 3. Display Shows alerts, current status, upcoming watering events, and remaining runtime 4. Buttons Look to the display screen to see what the buttons does. - Page 9 1. Release button for easy removal 2. Activity lights shows water status 3. Terminal Screw 4. Common or grounding terminal • Before installing or removing modules turn off power using the on/off switch. • DO NOT pull the modules out until the release button has been fully depressed. •...
-
Page 10: Menu Overview
Menu Overview: STOP STATIONS SETUP Pump & RESET FLOW NETWORKING DIAGNOSTICS MANUAL Master Valves System Off Setup Language Select Pump Programs Flow System Fault Log Station or Master Assignment Update Valve Pause Set Station as Time Set Station as Flow Manual Learn Current Solenoid... -
Page 11: Setup
Setup When the system first powers on it will run several checks. You may see several messages on the screen and notice that alerts may activate. This is normal. Once the system checks have completed you can pair to the HSC and begin the setup process. Setting Day and Time During the pairing and setup process the HSC will automatically set the day and time. -
Page 12: View Flow
4. Select the Flow Sensor Style and enter the calibration information. Some use K-factor and Offset, and others are Pulse type. Consult the flow meter supplier’s documentation for the correct settings or contact Hydro-Rain Technical Support for additional information. Brand... -
Page 13: Functions And Definitions
Functions and Definitions Stop Menu In the Stop Menu you can find most options to stop, delay or pause watering events System Off • Stops all irrigation and places controller in off mode • Can be used at end of season to stop all watering Pause Interrupts whatever is currently running, until either Resume is pressed, or 30 minutes have passed (count down is shown on screen). -
Page 14: Selective Stop
Selective Stop Allows user to selectively stop what is watering. The controller is still in automatic irrigation mode and will continue watering all other programs or stations. Once stopped the station or program will not water until watering is resumed. The "Play" button can be pressed to resume watering, and cancel selective stop, at any time. -
Page 15: Set Normally Closed / Normally Open Valve Operation
Set Normally Closed / Normally Open valve operation The PMV Settings Screen allows user to define if station is normally closed or normally open. All valves are considered normally closed, until changed. If a valve is set as normally open this screen can change it back to Normally Closed. -
Page 16: Set Time
• Spanish (Latin America) • Portuguese (Brazil) • Portuguese (European) • French (European) • Italian (European) • German (European) • Polish (European) Set Time If you have connected the HSC, the time is automatically set. To manually set or change the time following the instructions below. -
Page 17: Date Format
The “DD” should flash until you press up or down to select a number. If the button is held for 3 seconds the days advance by 5-day intervals. The “YYYY” should flash until you press up or down to select a number. If the button is held for 3 seconds the years advance by 5-minute intervals. - Page 18 Reset menu We have different levels of resets available based on different needs. Programs Flow Log / Firmware History Reset Reset Saved Saved Saved Programs Reset Flow Saved Reset Saved Saved Reset Reset Reset Saved Saved Programs and Flow Factory Reset Reset Reset...
- Page 19 System Update Updates Firmware, saves all Flow data, saves all Program data, saves historical data, Updates current firmware version, Returns to home screen once complete Current Connections Lists current connections and their status • Wi-Fi • 900 MHz • Bluetooth •...
- Page 20 • Short for a failing solenoid • Open for a broken wire or poor contact Pump, Master Valve Log If a P/MV is connected anytime it activates a record is made. You can scroll through the activity; the most recent activity is at the top of the list. Flow Log When a Flow meter is connected the system automatically records the average flow from readings taken during the middle third of the scheduled runtime.
- Page 21 connected stations. The station can run for a predetermined time (2 minutes default). You can also stop the test or return to prior menu.
- Page 22 Station Program Runtime Program Start Watering Days Time Terminal MASTER VALVES STATION NC / FLOW ASSIGNMENT...
