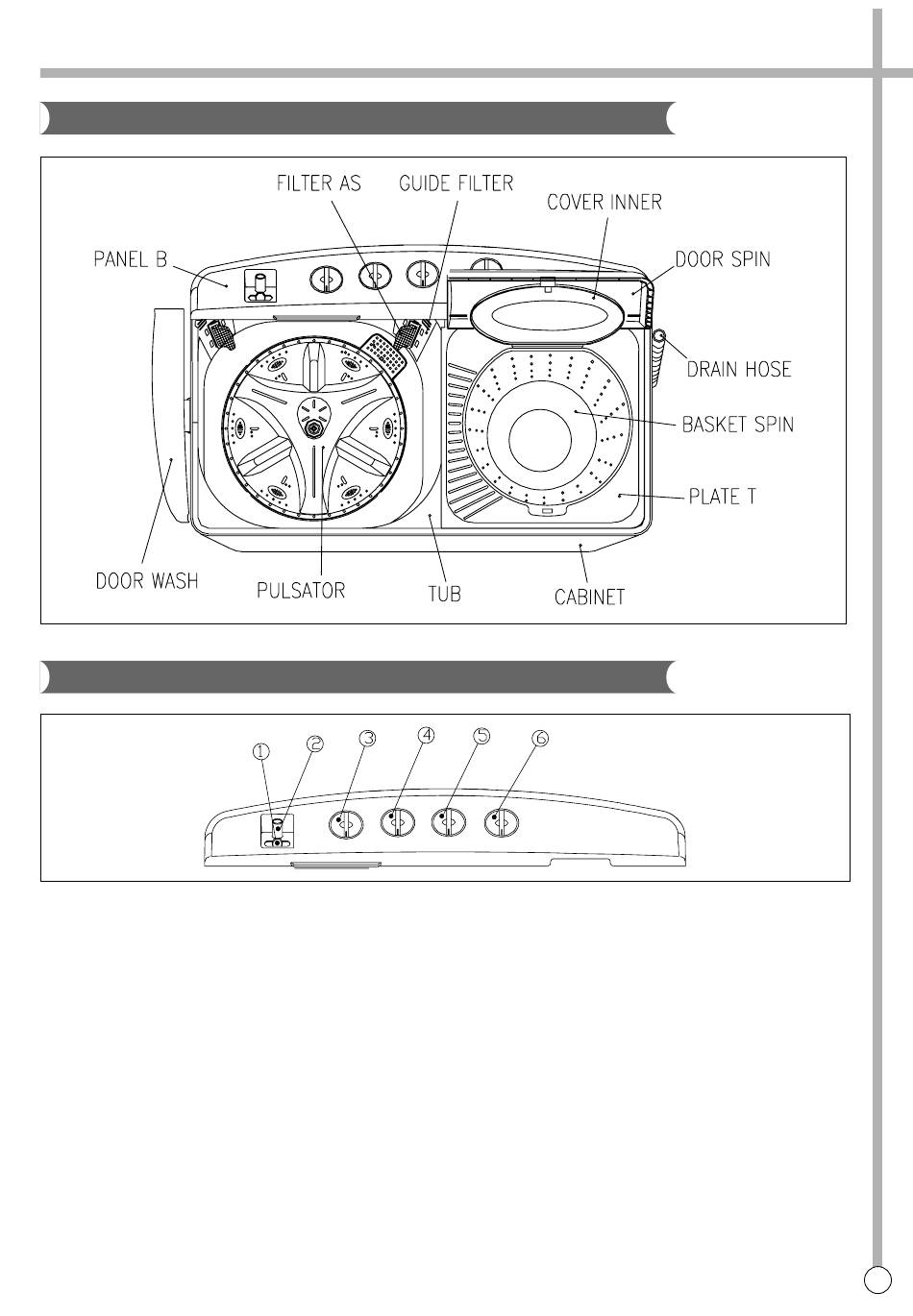

Structure Of The Washing Machine
Control Panel (Panel b Ass'y)
1 LEVER WATER SUPPLY SELECTOR
1
Left : water supply in the WASH TUB.
Right : water supply in the BASKET SPIN.
2 INLET WATER
2
Connect inlet hose to supply water in the WASH
TUB or BASKET SPIN.
3 WASH TIMER
3
Use to select the desired time for washing or rins-
ing.
2. EXTERNAL VIEW
4 WASH ACTION
4
Use to select wash action. ("STRONG", "NORMAL")
5 VALVE SELECTOR
5
Select "WASH, RINSE" for washing and rinsing, and
"DRAIN" to drain the water.
(In case PUMP MODEL turn on the drain pump)
"OFF" to turn off the drain pump. (Only PUMP
MODEL)
6 SPIN TIMER
6
Used to select the desired time for spinning.
3
