3. PRINCIPLES OF OPERATION AND EXPLANATION OF FUNCTIONS
Wash Timer
FUNCTION
The main switch remains ON during the washing time set by turning the timer knob.
At the same time, the internal switch T1 and T2 which provide power to WASH MOTOR alternately at assigned Intervals.
Select switch knob sets the wash type by means of controlling the interval of internal switch contact.

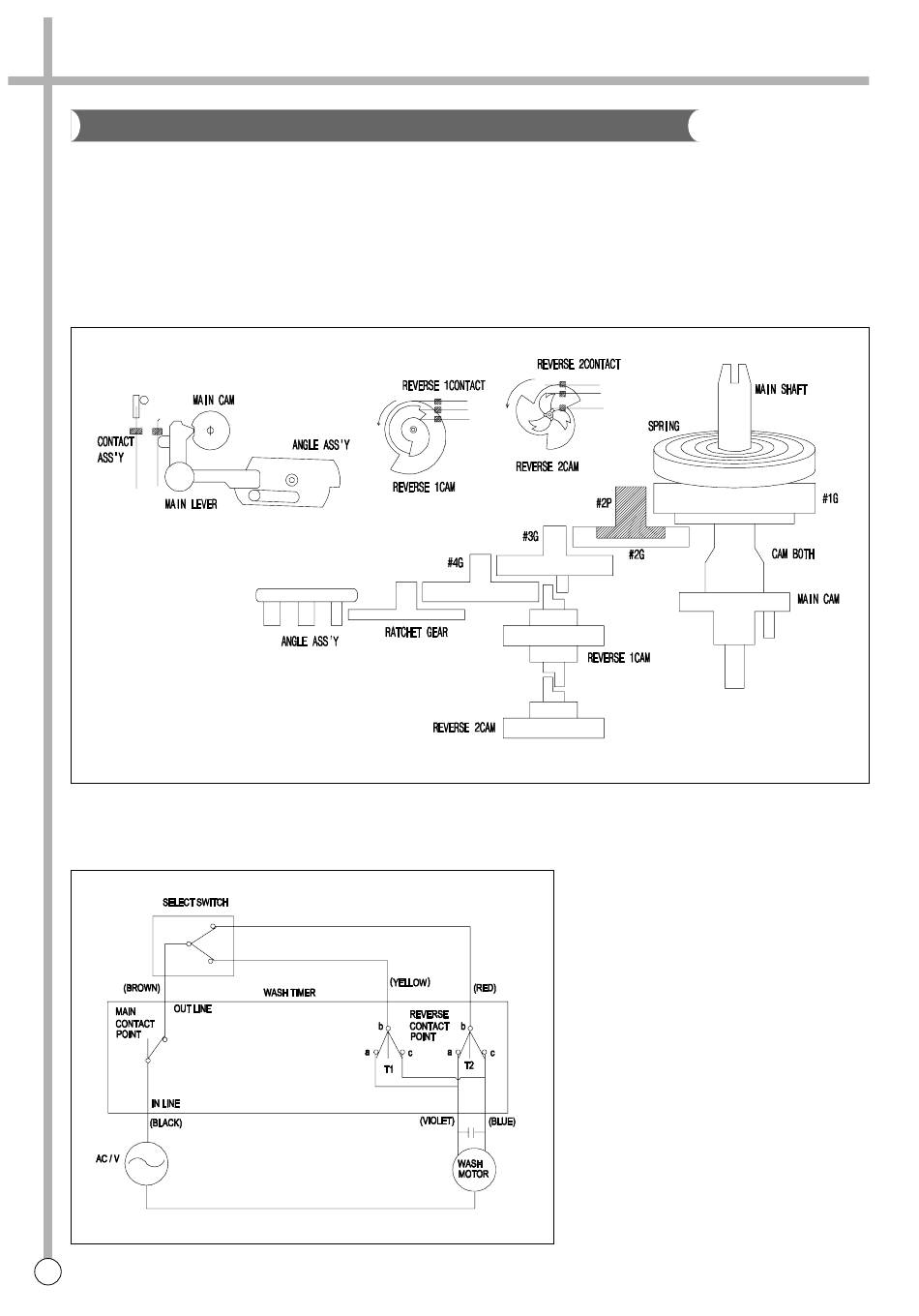

STRUCTURE AND PRINCIPLE OF ACTIVATION
CIRCUIT DIAGRAM
4
