External View - Daewoo DWM-200C Service Manual

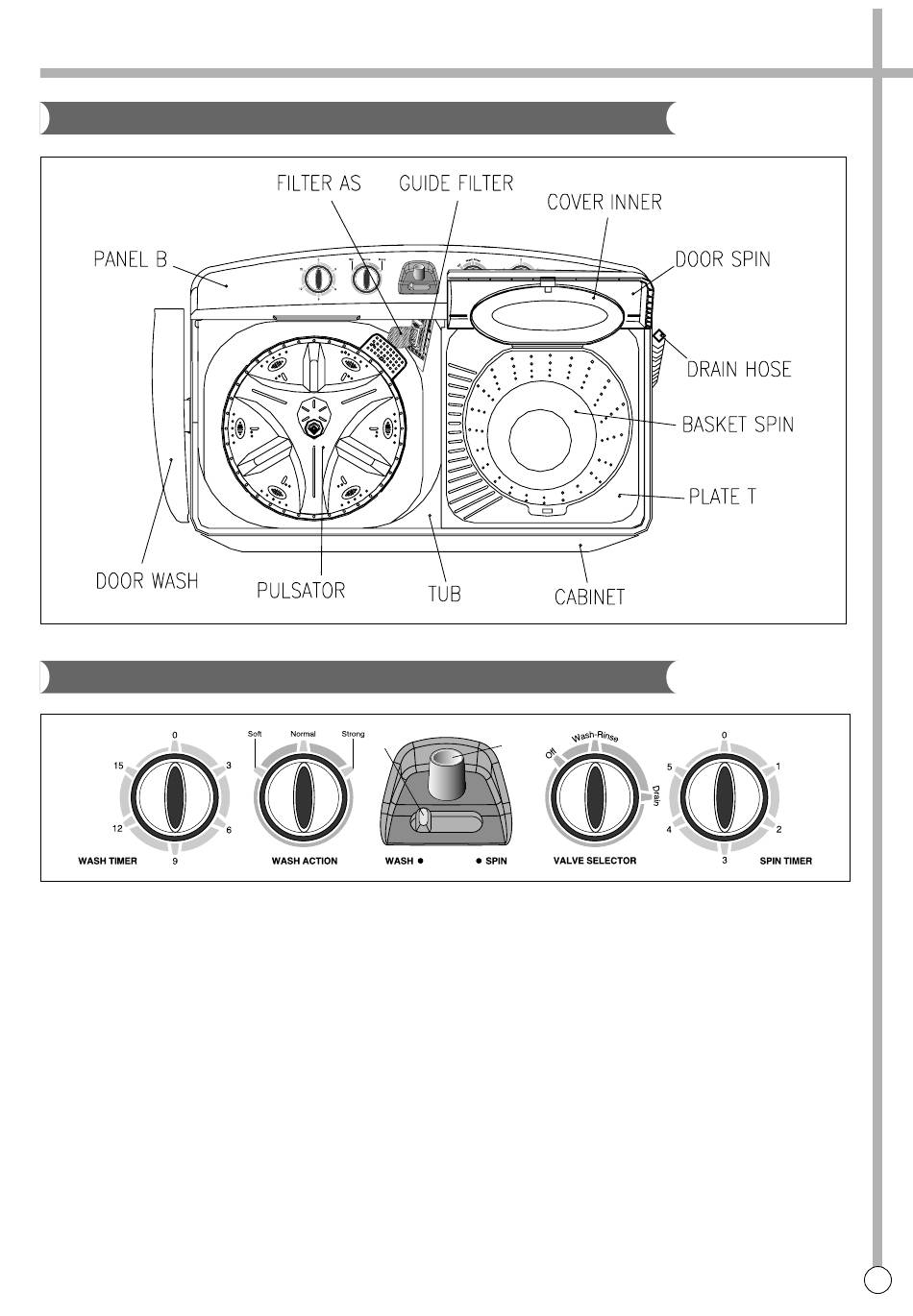

Structure Of The Washing Machine
Control Panel (Panel b Ass'y)
1
1 1 WASH TIMER
Use to select the desired time for washing or rins-
ing.
2 2 WASH ACTION
Use to select wash action. ("STRONG", "NORMAL",
"SOFT")
3 LEVER WATER SUPPLY SELECTOR 3
Left : water supply in the WASH TUB.
Right : water supply in the BASKET SPIN.
4 INLET WATER 4
Connect inlet hose to supply water in the WASH
TUB or BASKET SPIN.
2 3

2. EXTERNAL VIEW

4 5
5 VALVE SELECTOR 5
Select "WASH, RINSE" for washing and rinsing, and
"DRAIN" to drain the water.
(In case PUMP MODEL turn on the drain pump)
"OFF" to turn off the drain pump. (Only PUMP
MODEL)
6 SPIN TIMER 6
Used to select the desired time for spinning.
6
