1. Read all instructions carefully before operation. 2. Avoid pinched o-rings during installation by applying (provided with
installation kit) NSF certified lubricant to all seals. 3. This system is not intended for treating water that is microbiologically
unsafe or of unknown quality without adequate disinfection before or after the system.

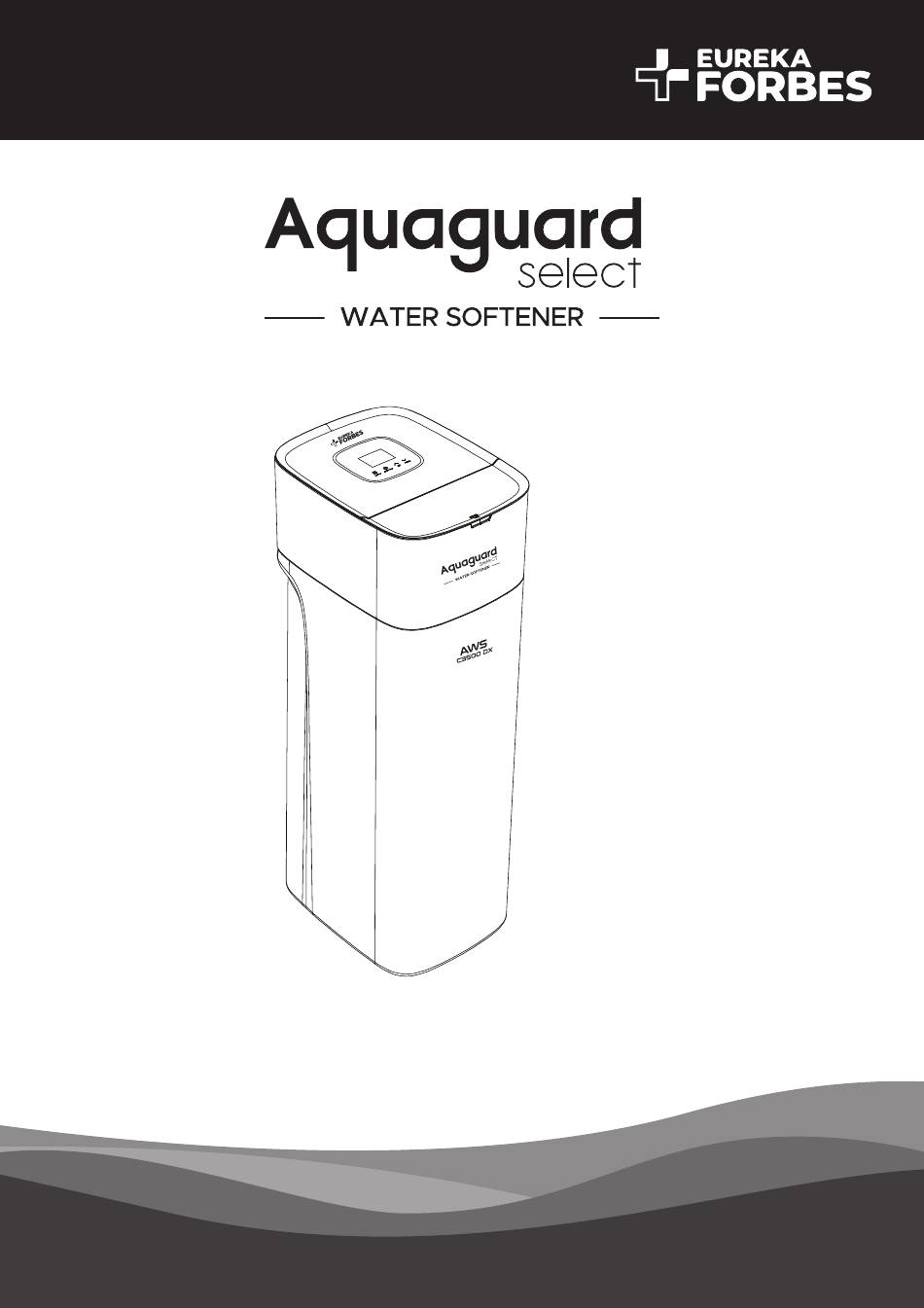

USER MANUAL - AWS C3500 DX
AWS
C3500 DX
Advertisement
Table of Contents
Related Manuals for Eureka Forbes Aquaguard select AWS C3500 DX
Summary of Contents for Eureka Forbes Aquaguard select AWS C3500 DX
- Page 1 C3500 DX 1. Read all instructions carefully before operation. 2. Avoid pinched o-rings during installation by applying (provided with installation kit) NSF certified lubricant to all seals. 3. This system is not intended for treating water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. USER MANUAL - AWS C3500 DX...
-
Page 2: Table Of Contents
TABLE OF CONTENTS DESCRIPTION PAGE NO. Technical Specifications Softener System Dimensions Unpack & Inspect Your Water Softener Pre-installation Instructions Installation Instructions Water Bypass IntelliMix Technology Programming Guide Start-up Instructions Maintenance Instructions Warranty Terms and Conditions... -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS Model Name AWS C3500 DX Dimension (HxDxW) mm 129x435x335 Technology Ion-Exchange Technology Resin Volume (L) Multiport Valve Automatic Regeneration Type Automatic/Up Flow Input Power Supply 100-200VAC/50Hz Salt Storage Capacity (Kg) Max Flow Rate (LPH) 2250 Hardness (Max.) (Mg/L) 2050 Iron (Max.) (Mg/L) <1... -
Page 4: Softener System Dimensions
SOFTENER SYSTEM DIMENSIONS C3500 DX TANK 435mm 467mm 335mm... -
Page 5: Unpack & Inspect Your Water Softener
UNPACK & INSPECT YOUR WATER SOFTENER IF THERE IS A SEVERE LOSS IN WATER PRESSURE WHEN THE SOFTENER UNIT IS INITIALLY PLACED IN SERVICE, THE SOFTENER TANK MAY HAVE BEEN LAID ON ITS SIDE DURING TRANSIT. IF THIS OCCURS, BACKWASH THE SOFTENER TO ‘RECLASSIFY’... -
Page 6: Pre-Installation Instructions
PRE-INSTALLATION INSTRUCTIONS Contact Eureka Forbes Authorised agent to have a complete water analysis and check your water hardness on your water supplier, this will keep your water softener in proper working. Cold Soft Water Electrical Panel Hot Soft Water Hard... -
Page 7: Water Bypass
TOOLS REQUIRED FOR INSTALLATION: Two adjustable wrenches. 5/8” OD drain line is needed for the drain. WATER BYPASS In case of an emergency such as softener maintenance, you can isolate your water softener from the water supply using the bypass valve located at the back of the control. In normal operation the bypass is open with the ON/OFF knobs in line with the INLET and OUTLET pipes. -
Page 8: Intellimix Technology
INTELLIMIX TECHNOLOGY 1. Rotate the IntelliMix nut in a clockwise 2. Rotate the IntelliMix nut anti clockwise to direction. The bigger rotation angle, the higher close it completely. water hardness in product valve. If the unit is installed in a water supply with less input hardness, the output water will be too soft. To avoid this, a unique IntelliMix feature has been provided. -
Page 9: Programming Guide
PROGRAMMING GUIDE FAMILIARISE WITH KEY PAD CONFIGURATION MENU CONFIRM DOWN This function enters the basic set up information required at the time of installation. MENU This function is to press and select one item to change and accepts the values if changed. - Page 10 ADVANCED SETTINGS DISPLAY System Regenerate Based On System Regenerate Based On Automatic Calculation: Manual Settings: Regeneration Regeneration Water Regeneration Regeneration Regeneration Time Capacity Mode Mode Time Days Regeneration Restore Regeneration Restore Data Regeneration Defaults Cycle Days Entry Cycle Defaults This value is water hardness of the raw water supply. It is used to calculate the system capacity. Meter Imme...
- Page 11 SYSTEM INFORMATION PAGE When you enter system information setting, system key information can be viewed in this page. System Information System Information System Information Total Tr Water eated Regeneration Time Total Regenerations 0 Gallons 02:00 AM 0 Times System Information System Information System Information Water Capacity...
-
Page 12: Start-Up Instructions
START-UP INSTRUCTIONS 1. Add two liters of water into the cabinet at the time of installation. This is for the unit to achieve proper capacity in the first time of regeneration. 2. Plug the power adaptor into 220-240 VAC supply. Connect the power cord to the valve. 3. - Page 13 01:34 Manual Regen. Last Regen. : Oct. 11, 2017 4.5 Press CONFIRM key to confirm Mode : Meter Delayed and press MENU key to have an DELAY manual regeneration. Capacity IMMEDIATE Remaining Flow Rate NOTE: If you select ‘DELAY’ option, the valve will start to regenerate at the closest day's REGEN.
-
Page 14: Maintenance Instructions
MAINTENANCE INSTRUCTIONS CHECK THE SALT LEVEL Adequately check the salt level. Remove the lid from the cabinet or brine tank, make sure salt level is always above the brine level. YOU SHOULD NOT BE ABLE TO SEE WATER IN THE CABINET OR BRINE TANK. -
Page 15: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS Aquaguard Select Water Softener... - Page 16 Aquaguard Select Water Softener Add Salt The system needs salts to regenerate its capacity. Please check the salt storage in time during usage and keep unmelted salt in the brine tank. Open the system's slide and put salt into the tank equably. It is recommended you add 3-4 kg salt in each exhausted cycle.
- Page 17 B1/B2, 701, 7 Floor, Marathon Innova Marathon NextGen, Ganpatrao Kadam Marg, Lower Parel, Mumbai - 400 013, India. WhatsApp No.: +91 703 988 3333 E-mail us at: customercare@eurekaforbes.com...
