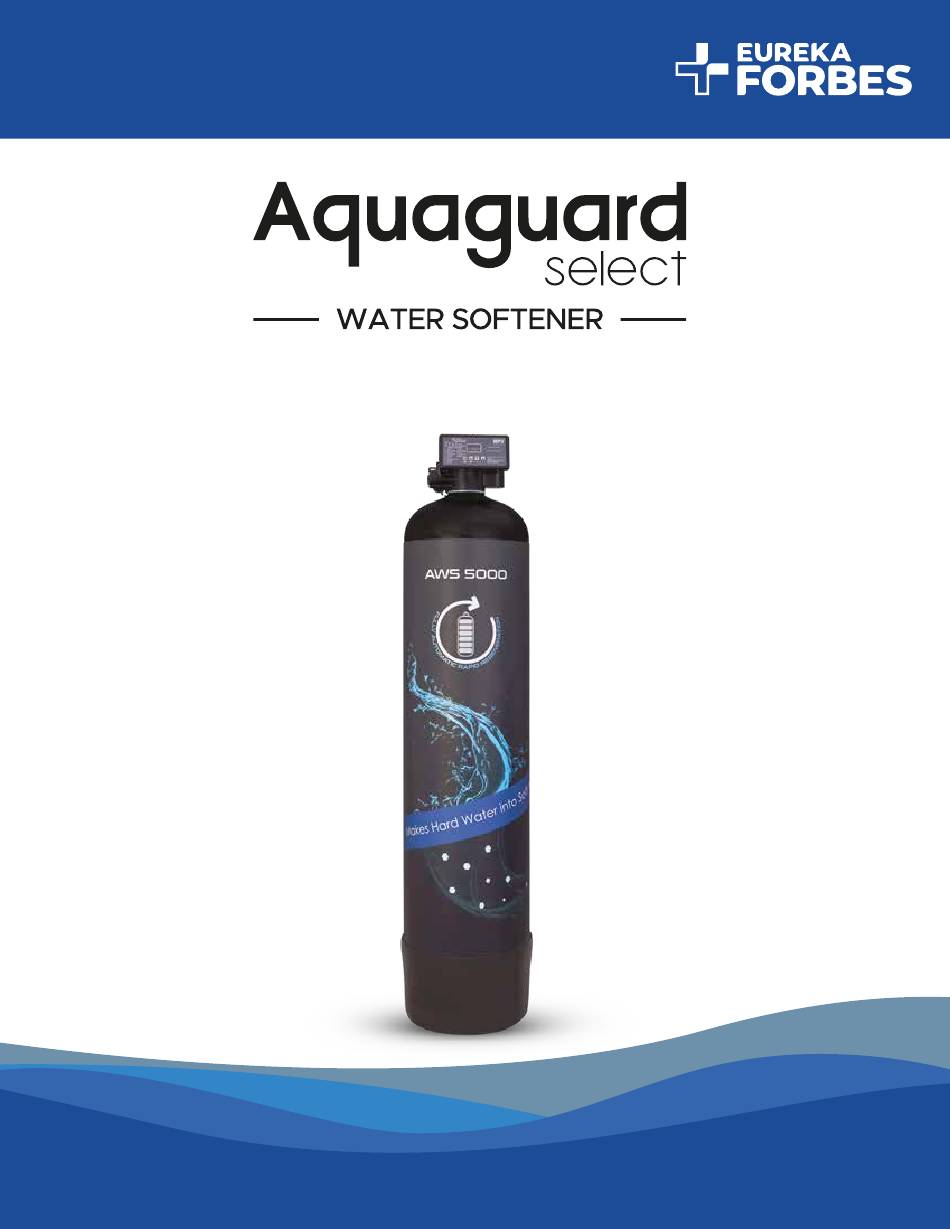

  • Page 1 AWS 5000 USER MANUAL- AWS 5000...
  • Page 2 Dear Customer, Thank you for welcoming AWS 5000 into your home. Aquaguard Select Water Softener efficiently removes excess Calcium and Magnesium salts dissolved in your water to make it 100% soft.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Parts/Components Features Inspection & Preparation MPV Settings Troubleshooting Chart Specifications Warranty Terms and Conditions...

  • Page 4: Parts/Components

    PARTS/COMPONENTS Quantity Material Vessel (12*48) Strainer Top Strainer Bottom UPVC Pipe O Ring 1" O Ring 2.5" Interconnecting Cable Flow Sensor Softener Multiport Valve F2F Connector 1” Hex Nut Pipe Lock Nut 10 mm AC/DC Power Adaptor 15 kg Geolex Media 8 mm 50 ltr Water Softener Media...

  • Page 5: Features

    FEATURES AWS 5000 Resine Volume I 50 Litres Hardness I 2100 ppm Flow Rate I 3,000 litres/hour High-Grade High-Efficiency Robust Vessel Resin Multiport Valve (NSF Certified)

  • Page 6: Inspection & Preparation

    INSPECTION & PREPARATION I. Installation Safety Guide AWS 5000 works on standard 100-240 V AC supply power plug only. Control valve should be higher than drain outlet, and not far from the drain hose. If the drain valve is placed at a level higher than control valve, then the brine solution will not be sucked from the brine tank due to pressure difference.
  • Page 7 Fig- A Fig- B Device location (Fig-A) Water softener should be located close to the drain. Ensure the unit is installed with enough space for operating and maintenance. Brine tank needs to be placed close to softener. The unit should be kept away from the heater, and not to be exposed outdoor. Sunshine or rain will cause a system damage.
  • Page 8 2. Install Animated Connector (Fig- C) As Figure shows, put the sealing ring into nut of animated connector, and screw in water inlet. 3. Install Flow Meter (Fig- C) As Figure shows, put the seal ring into nut of Fig-C flow meter, screw in water outlet;...

  • Page 9: Mpv Settings

    MPV SETTINGS Switch Operation (Press Up and Down arrow together to unlock) 1st press -> Change to Clock Time - 02:00 2nd press -> A – 0.1 / 0.2 (Select; A02) 3rd press -> 5.0.0 (Water treatment capacity in one cycle) (Need to set as per the OBR calculation) 4th press ->...
  • Page 10 Desired Value Instruction Settings A-02 A-01 : Time based (Regeneration starts at the regeneration time) A-02 : Flow based (Regenerate immediately when the available volume of treated water drops to zero) F-00 Regeneration process interval time B-01 Output control mode (especially for connecting an external booster pump/SV) H-05 Maximum interval of regeneration...

  • Page 11: Troubleshooting Chart

    TROUBLESHOOTING CHART PROBLEM CAUSE CORRECTION A) Disconnected meter cable A) Reconnect the meter cable 1) The control fails to B) Dust accumulated on flow sensor regenerate automatically B) Clean flow sensor impeller C) Electronic controller or sensor C) Replace or repair damaged 2) Regeneration at A) Timer improperly set, due to power...
  • Page 12 9) Control cycles A) Faulty timer setting A) Change the MPV settings continuously A) Call authorised service engineer 10) Continuous flow A) Foreign material in the control to drain to clean valve B) Internal control leak B) Same as above C) Piston jammed in brine or back C) Same as above wash position...

  • Page 13: Specifications

    SPECIFICATIONS Vessel size 12 x 48 inch Multiport valve Automatic Input supply 100-240V AC 50Hz Operating supply 12VDC,1500mA Resin volume 50 L Geolex media 15 Kg Max. Input water flow rate 3000 LPH Salt storage capacity 25 Kg Brine tank capacity 80 L Max.

  • Page 14: Warranty Terms And Conditions

    WARRANTY TERMS AND CONDITIONS Aquaguard Select Water Softener sale...
  • Page 15 Aquaguard Select Water Softener Note: Add Salt The system needs salts to regenerate its capacity. Please check the salt storage in time during usage and keep unmelted salt in the brine tank. Open the system's slide and put salt into the tank adequately. It is recommended you add 10 kg salt in each exhausted cycle.
