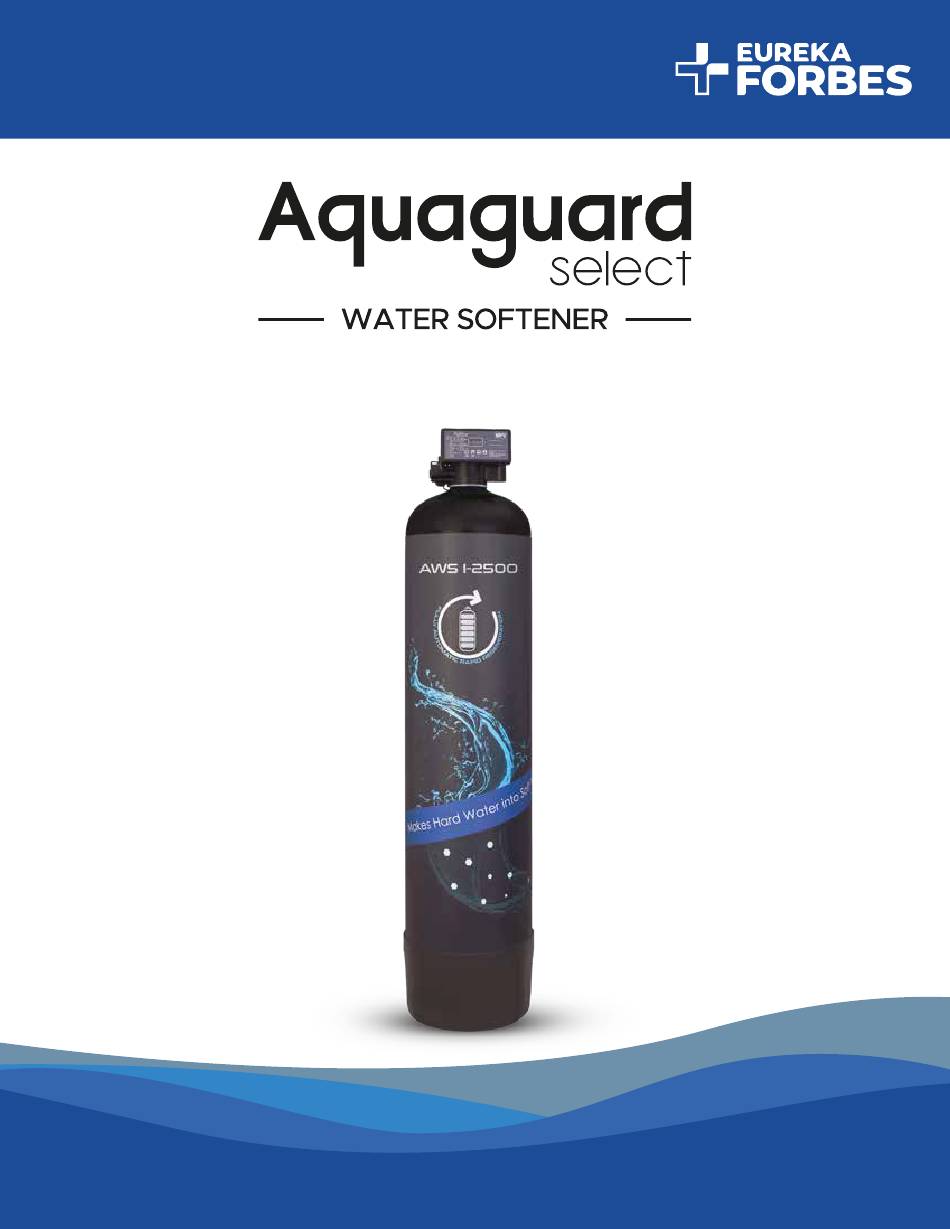

  • Page 1 AWS I-2500 USER MANUAL- AWS I-2500...
  • Page 2 Dear Customer, Thank you for welcoming AWS I-2500 into your home. Aquaguard Select Water Softener efficiently removes excess Calcium and Magnesium salts dissolved in your hard water to make it 100% soft.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Parts/Components Features Inspection & Preparation MPV Settings Troubleshooting Chart Specifications Warranty Terms and Conditions...

  • Page 4: Parts/Components

    PARTS/COMPONENTS Quantity Material Vessel (8*44) UPVC Pipe Strainer Top Strainer Bottom O Ring 1" O Ring 2.5" Interconnecting cable Flow sensor Softener Multiport Valve F2F Connector 1” Hex Nut Pipe Lock Nut 10 mm AC/DC Power Adaptor Geolex Media 8 mm 5 kg Water Softener Media 25 L...

  • Page 5: Features

    FEATURES AWS I-2500 Resin Volume I 25 Litres Hardness I 1900 ppm Flow Rate I 2100 LPH High-Grade High-Efficiency Robust Vessel Resin Multiport Valve (NSF Certified)

  • Page 6: Inspection & Preparation

    INSPECTION & PREPARATION I. Installation Safety Guide AWS I-2500 works on standard 100-240 V AC supply power plug only. Control valve should be higher than drain outlet, and not far from the drain hose. If the drain valve is squeezed or higher than control valve, then the brine solution will not be sucked from the brine tank due to pressure difference.
  • Page 7 Fig-A Fig-B Device location (Fig-A) Water softener should be located close to the drain. Ensure the unit is installed with enough space for operating and maintenance. The brine tank needs to be close to softener. The unit should be kept away from the heater, and not be exposed outdoor. Sunshine or rain will cause a system damage.
  • Page 8 2. Install Animated Connector (Fig-C) As the figure shows, put the sealing ring into the nut of the animated connector, and screw in the water inlet. 3. Install Flow Meter (Fig-C) As the figure shows, put the sealing ring onto the nut of the flow meter, screw in the water outlet;...

  • Page 9: Mpv Settings

    MPV SETTINGS Switch Operation (Press Up & Down arrow together to unlock) press -> Regeneration Time - 02:00 press -> A – 0.1 / 0.2 (select; A02) press -> Add 2.5.0 (Water treatment capacity in one cycle) press -> 2. – 0.3 (Need to set as per the OBR Calculation) (Backwash) minutes (0-99 min) press ->...
  • Page 10 Desired Value Instruction Settings A-01 : Time based (Regeneration starts at the regeneration time) A-02 A-02 : Flow based (Regenerate immediately when the available volume of treated water drops to zero) F-00 Regeneration process interval time Output control mode (especially for connecting an external booster B-01 pump/SV) H-05...

  • Page 11: Troubleshooting Chart

    TROUBLESHOOTING CHART PROBLEM CAUSE CORRECTION A) Disconnected meter cable A) Reconnect the meter cable 1) The control fails to B) Dust accumulated on flow sensor Regenerate B) Clean flow sensor impeller automatically C) Electronic controller or sensor C) Replace or repair damaged 2) Regeneration at A) Timer improperly set, due to power...
  • Page 12 9) Control cycles A) Change the MPV settings A) Faulty timer setting continuously uthorised service 10) Continuous flow A) Foreign material in the control A) Call a engineer to drain to clean valve B) Internal control leak B) Same as above C) Piston jammed in brine or back C) Same as above wash position...

  • Page 13: Specifications

    SPECIFICATIONS Vessel size 8 x 44 inch Multiport valve Automatic Input supply 100-240V AC 50Hz 12 VDC, 1500 mA Operating supply 25 L Resin volume 5 Kg Geolex media 2100 LPH Max. water flow rate 15 kg (recommended) Salt storage capacity Brine Tank Capacity 50 L Max.

  • Page 14: Warranty Terms And Conditions

    WARRANTY TERMS AND CONDITIONS Aquaguard Select Water Softener sale...
  • Page 15 Aquaguard Select Water Softener Note: Add Salt: The system needs salts to regenerate its capacity. Please check the salt storage in time during usage and keep unmelted salt in the brine tank. Open the system's slide and put an adequate amount of salt into the tank.
  • Page 16 B1/B2, 701, 7 Floor, Marathon Innova Marathon NextGen, Ganpatrao Kadam Marg, Lower Parel, Mumbai - 400 013, India. Whatsapp No: +91 703 988 3333 E-Mail Us: customercare@eurekaforbes.com...
