Agras T25
Quick Start Guide
v1.0 2022.12

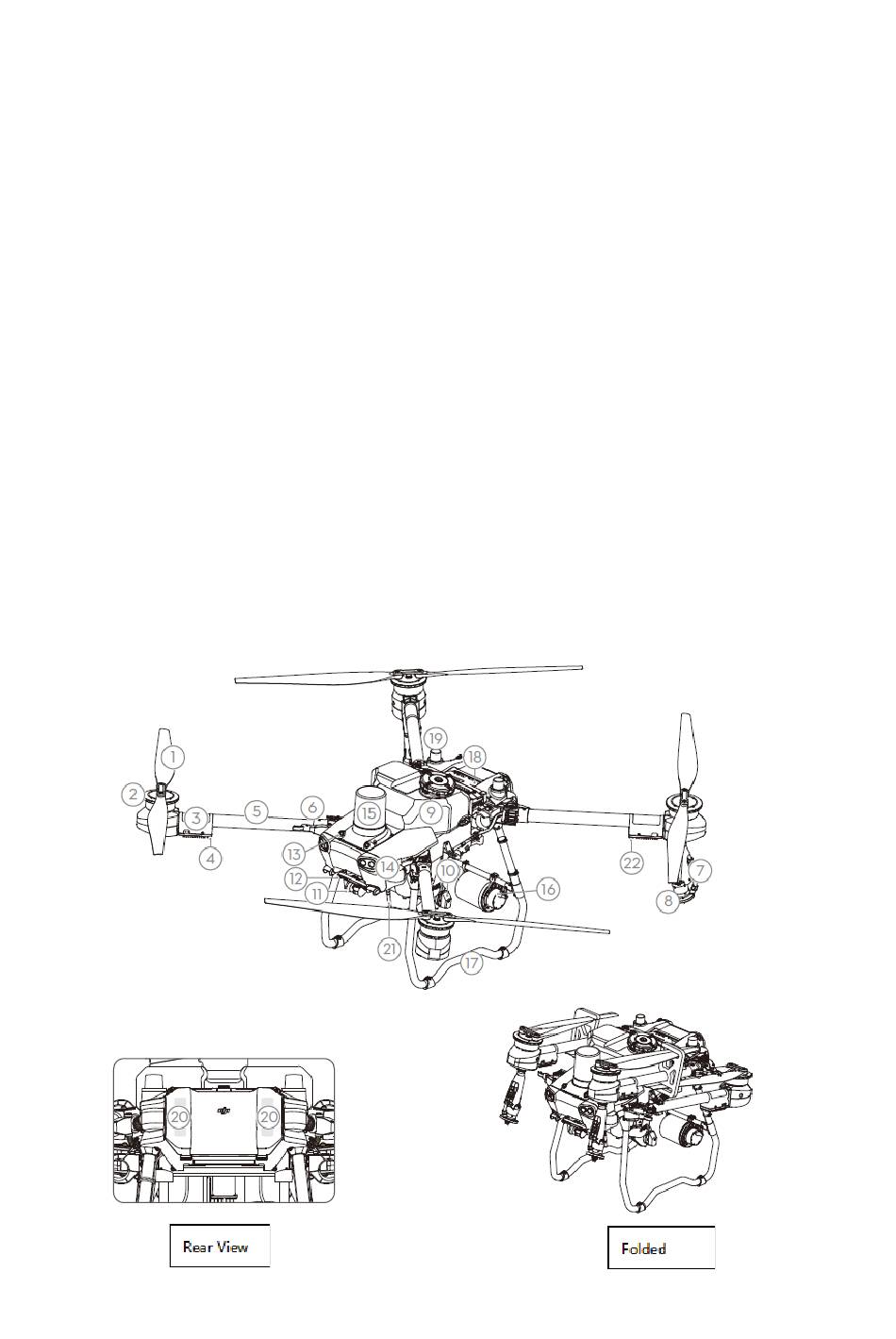

Aircraft
The Agras T25 aircraft has a truss-style body that comes with pitched arms that can be folded, making it easier to
transport. The integrated spraying system can quickly transform into the spreading configuration with a spreading
payload of 25 kg.
The aircraft is equipped with the phased array radar system and binocular vision system, including downward and
forward binocular vision, forward and rear phased array radar. The systems provide 360-degree omnidirectional
obstacle sensing to ensure operational safety. The ultra HD FPV camera with a tiltable gimbal can automatically
collect HD field images for local offline reconstruction to assist precise field planning.
The Coaxial Dual Propeller structure brings a strong wind field. Pesticides can penetrate thick canopies to allow
thorough spraying. The spraying system is equipped with the Magnetic Drive Impeller Pump, Dual Atomized
Sprinkler, Anti-Drip Centrifugal Valve and solenoid valve, to ensure more efficient and precise pesticide spraying,
as well as save liquid pesticide. The spraying system can be upgraded with two more sprinklers to meet different
operation scenarios.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Agras T25 and is the answer not in the manual?

Questions and answers

Related Manuals for dji Agras T25

Summary of Contents for dji Agras T25

  • Page 1 2022.12 Aircraft The Agras T25 aircraft has a truss-style body that comes with pitched arms that can be folded, making it easier to transport. The integrated spraying system can quickly transform into the spreading configuration with a spreading payload of 25 kg.

  • Page 2: Preparing The Aircraft

    10. Delivery Pumps 11. FPV PTZ camera 12. Downward Binocular Vision Using the T25 Preparing the Intelligent Flight Battery Only use official DJI flight batteries. Check the battery level before flying and charge according to the corresponding manual document. Preparing the Aircraft...
  • Page 3 C. Make sure that the spray tank and flight battery are firmly in place. E. Power on the remote controller, make sure that the DJI Agras app is open, and power on the aircraft. Tap Start in the home screen of the app to enter Operation View. Make sure that the GNSS signals are strong and the screen shows Ready to GO (GNSS) or Ready to GO (RTK).
  • Page 4 ② Press the Spray button to start or stop spraying manually in order to exhaust air. B. Calibrating the flow meter ① In the app, go to Operation View, tap > , then tap Calibration on the right of the flow meter calibration section.

  • Page 5: Starting Operations

    Starting Operations Users can perform aerial surveying for the operation area in the DJI Agras app, receive an HD map via offline reconstruction in the remote controller. Field planning and identifying can be performed on the HD map before route operation.

  • Page 6: Specifications

    Specifications Aircraft (Model: 3WWDZ-20B) Operating Frequency 2.4000-2.4835 GHz 5.725-5.850 GHz Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE) RTK/GNSS Operating RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, Frequency QZSS L1/L2 GNSS: GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1...
  • Page 7 FCC compliance statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
