Summary of Contents for dji AGRAS T25

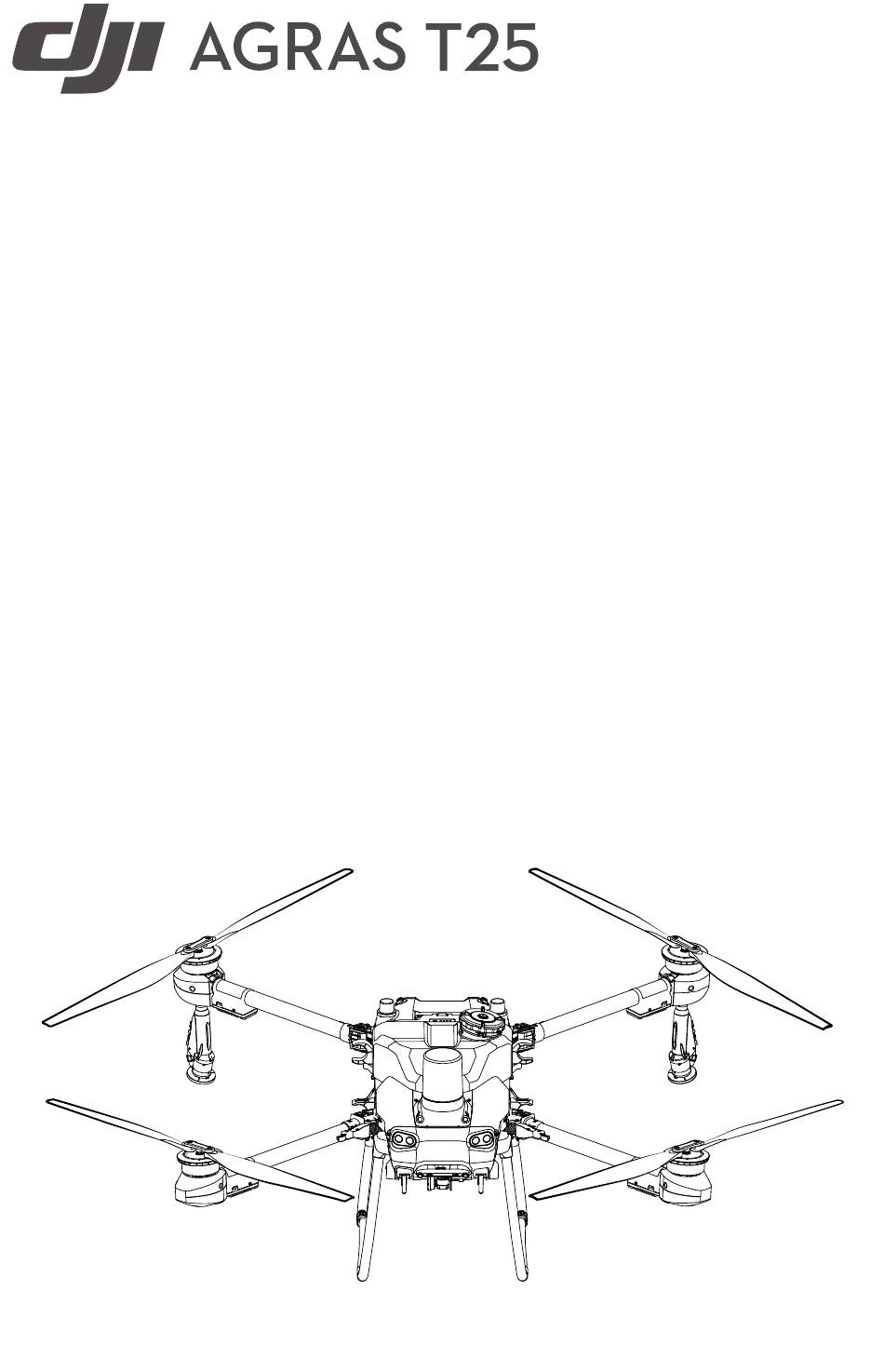

  • Page 1 Quick Start Guide (For Vietnam Only) Hướng dẫn Sử dụng Nhanh (Chỉ dành cho Việt Nam) v1.0...
  • Page 2 Charge to activate the internal battery of the remote controller before using for the first time. It is recommended to purchase the DJI 65W Portable Charger or USB PD3.0 chargers. Sạc để kích hoạt pin bên trong của bộ điều khiển từ xa trước khi sử dụng lần đầu tiên. Bạn nên mua Bộ...
  • Page 3 It can be used for spraying T25(3WWDZ-20B) pesticide for different crops. Remote controller for the drone. User can DJI RC Plus (RM700B) plan the task and check the status of the drone on the remote controller. DB800 Intelligent The Intelligent Flight Battery can power...
  • Page 4 Nano-SIM Dongle related functions are not supported in some countries or regions. Comply with the local laws and regulations. Các chức năng liên quan đến cổng kết nối không được hỗ trợ tại một số quốc gia hoặc khu vực. Tuân thủ luật pháp và quy định của địa phương.
  • Page 6 Check battery level: press once. Power on/off: press and then press and hold. Kiểm tra mức pin: nhấn một lần. Bật/tắt nguồn: nhấn rồi nhấn giữ.
  • Page 7 DJI Agras App Make sure the remote controller and aircraft is powered on. Follow the prompts to activate (internet connection is required). Đảm bảo bộ điều khiển từ xa và thiết bị bay được bật nguồn. Làm theo các lời nhắc để kích...
  • Page 8 Mode 2 / 美國手/ モード2 / 모드 2 / ម៉ ូ ដ 2 / Mod 2 / โหมด 2 / Chế độ 2 / Modus 2 / Modo  2/ Λειτουργία 2 / Mode 2 / 2. mód / Modo 2/ Режим 2 / Mod 2 / Режим 2 1 Start/stop motors: perform combination stick command and hold for two seconds.
  • Page 9 Starting Operations Users can perform mapping operations in the operating area using the DJI Agras app and receive an HD map via offline reconstruction using the remote controller, then plan a field on the HD map for Route operations.
  • Page 10: Maintenance

    E. Wipe the surface and screen of the remote controller with a clean wet cloth that has been wrung out with water. Refer to the disclaimer and safety guidelines for more information on product maintenance. Download the user manual for more information: https://ag.dji.com/t25/downloads...
  • Page 11 2. DO NOT fly more than 4.5 km (14,763 ft) above sea level. 3. The DJI Agras app will intelligently recommend the payload weight of the tank according to the current status and surroundings of the aircraft. When adding material to the tank, the max weight should not exceed the recommended value.
  • Page 12 Pesticide Usage 1. Avoid the use of powder pesticide as much as possible and clean the spraying system after use. Otherwise, the service life of the spraying system may be reduced. 2. Pesticides are poisonous and pose serious risks to safety. Only use them in strict accordance with their specifications.
  • Page 13 Aircraft The Agras T25 features a truss-style body and pitched arms that can be folded to reduce the body size, making it easier to transport. The integrated spraying system can quickly transform into the spreading configuration. The aircraft is equipped with the phased array radar system and binocular vision system, including downward and forward binocular vision and forward and rear phased array radars.
  • Page 14: Remote Controller

    Remote Controller The DJI RC Plus remote controller features DJI O3 Agras image transmission technology and has a max transmission distance of up to 5 km (at an altitude of 2.5 m) .
  • Page 15: Specifications

    Mode 2 Specifications Aircraft (Model: 3WWDZ-20B) Weight 25.4 kg (excl. battery) 32 kg (incl. battery) Max Takeoff Weight Max takeoff weight for spraying: 52 kg (at sea level) Max takeoff weight for spreading: 58 kg (at sea level) Max Diagonal Wheelbase 1925 mm Dimensions 2585×2675×780 mm (arms and propellers unfolded) 1475×1540×780 mm (arms unfolded and propellers folded)
  • Page 16 2 hours 42 minutes Charging Type It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger. Charging Time 2 hours for internal battery or internal and external battery (when remote...
  • Page 17 <10 dBm [1] The DJI Agras app will intelligently recommend the payload weight limit for the tank according to the current status and surroundings of the aircraft. Do not exceed the recommended payload weight limit when adding material to the tank.
  • Page 18 Bắt đầu Vận hành Người dùng có thể thực hiện các thao tác lập bản đồ trong khu vực hoạt động bằng ứng dụng DJI Agras và nhận bản đồ HD thông qua tái tạo ngoại tuyến bằng bộ điều khiển từ xa sau đó lập kế hoạch thực địa trên bản đồ...
  • Page 19 E. Dùng khăn ướt sạch đã vắt khô nước để lau bề mặt và màn hình của bộ điều khiển từ xa. Xem tuyên bố miễn trừ trách nhiệm và các hướng dẫn về an toàn để biết thêm thông tin về bảo dưỡng sản phẩm này. Tải về hướng dẫn sử dụng để biết thêm thông tin: https://ag.dji.com/t25/downloads...
  • Page 20 2. KHÔNG bay cao quá 4,5 km (14.763 ft) so với mực nước biển. 3. Ứng dụng DJI Agras sẽ đề xuất giới hạn trọng lượng tải trọng tối đa có thể chứa của bình một cách thông minh theo tình trạng hiện tại và môi trường xung quanh của máy bay. Khi thêm vật liệu vào bình, trọng lượng tối đa không được vượt quá...
  • Page 21 Sử dụng Thuốc trừ sâu 1. Tránh sử dụng thuốc trừ sâu dạng bột nhất có thể và vệ sinh hệ thống phun sau khi sử dụng. Nếu không, tuổi thọ của hệ thống phun có thể bị giảm. 2. Thuốc trừ sâu có độc tính, và gây ra các rủi ro nghiêm trọng về an toàn. Tuân thủ chặt chẽ hướng dẫn kỹ...
  • Page 22 Thiết bị bay Agras T25 có thiết kế kiểu giàn với các cánh bay dốc có thể gập lại để giảm kích thước thân, giúp thiết bị vận chuyển dễ dàng hơn. Hệ thống phun tích hợp có thể nhanh chóng chuyển đổi thành hình dạng trải rộng.
  • Page 23 Wi-Fi hoặc cổng kết nối rời DJI Cellular Dongle. Các hoạt động trở nên thuận tiện và chính xác hơn bao giờ hết nhờ thiết kế ứng dụng DJI Agras được cải tiến và một loạt các nút trên bộ điều khiển từ...
  • Page 24: Thông Số Kỹ Thuật

    [1] Bộ điều khiển từ xa có thể đạt tới cự ly truyền phát tối đa (FCC: 7 km (4,35 dặm); CE/MIC: 4 km (2,49 dặm); SRRC: 5 km (3,11 dặm)) ở khu vực thoáng không có can nhiễu điện từ và ở độ cao khoảng 2,5 m (8,2 ft).
  • Page 25 Thời gian Sạc pin 2 giờ đối với pin bên trong hoặc pin bên trong và bên ngoài (khi bộ điều khiển từ xa được tắt nguồn và sử dụng bộ sạc DJI tiêu chuẩn) O3 Agras Tần số Hoạt động 2,4000-2,4835 GHz, 5,725-5,850 GHz Công suất truyền (EIRP)
  • Page 26 <10 dBm [1] Ứng dụng DJI Agras sẽ đề xuất giới hạn trọng lượng thuốc tối đa có thể chứa của bình phun một cách thông minh theo tình trạng hiện tại và môi trường xung quanh của thiết bị bay. Không vượt quá giới hạn trọng lượng vật liệu được khuyến nghị...
  • Page 27 Facebook YouTube Contact DJI SUPPORT For the latest information on Agras products, scan the QR code. This content is subject to change without prior notice. DJI and AGRAS are trademarks of DJI. Copyright © 2024 DJI All Rights Reserved. YCBZSS00253003...
