Summary of Contents for Meiko TopLine M2

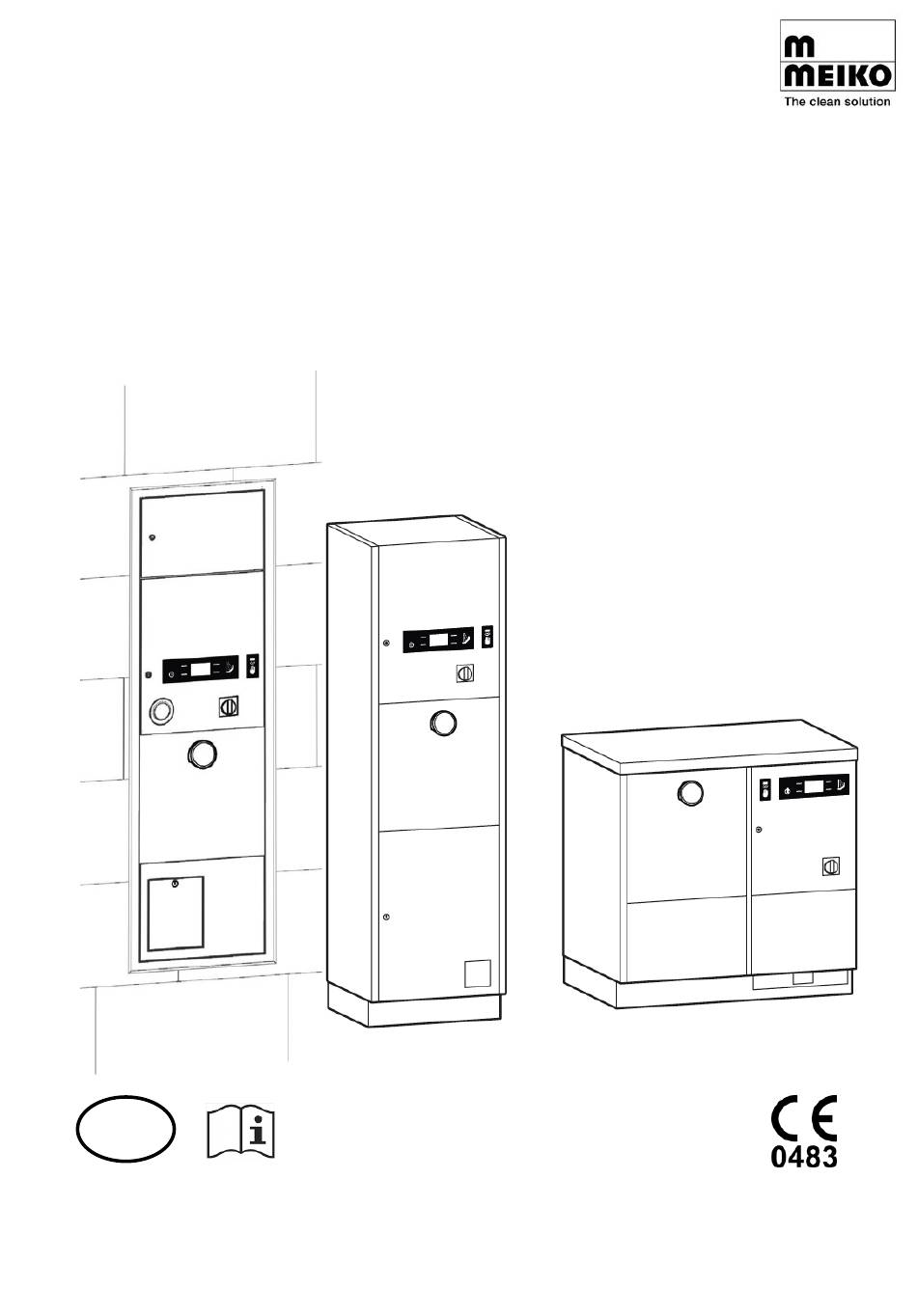

- Page 1 MEIKO TopLine Type M2 Washer-disinfector Instructions for use Read the instructions for use before using the appliance! 9020183 / Valid from: 2019-02 / Update: 2021-09 www.meiko.info...
-
Page 2: Table Of Contents
Detergent dosing 4.4.2 Load detection 4.4.3 Automatic door (AT) 4.4.4 Slop sink flushing with separate slop sink unit 4.4.5 Daily protocol with MEIKO Connect 4.4.6 Connectivity LED indicator handle Holder TECHNICAL DATA ................... 21 EC/EU declaration of conformity 5.1.1 FCC Compliance Statement USA 5.1.2... - Page 3 MEIKO T opLi ne ASSEMBLY ....................25 COMMISSIONING ..................25 OPERATION/USE ..................26 Glass control panel Clean and disinfect care utensils (programme cycle) 8.2.1 Clean care utensils (basic version of the appliance) 8.2.2 Cancel programme 8.2.3 Selecting the cleaning programme 8.2.4...
-
Page 4: Information On Instructions For Use
These instructions for use can be downloaded from the following address: https://www.meiko.de and https://www.meiko.info or https://partnernet.meiko- global.com. All serious incidents relating to the product must be reported to the manufac- turer and the competent authority of the Member State. -
Page 5: Related Documents
MEIKO T opLi ne Related documents In addition to these instructions for use, there are other documents that are available depending on the authorisation: Operator (included in delivery con- Authorised service technician tents) EC/EU declaration of conformity Installation instructions Brief instructions for use... -
Page 6: Safety Symbols In The Instructions
Notes on using the document: • A bullet point (•) designates an action step. • Numerals (1.) designate several action steps that must be executed in the specified sequence. • Position numbers in the text that refer to position numbers in illustrations are shown in parentheses: (1) Position number 1 in the illustration •... -
Page 7: Safety
MEIKO T opLi ne Claims must be reported to the manufacturers immediately after determination of the defect or error. Liability claims for personal injury or material damage as well as for operational problems are excluded if they are due to one or more of the following causes: •... -
Page 8: Foreseeable Misuse
Appliances for installation in ensuite bathrooms of patient rooms in an en- closed space. Only use rinse/water softening agents and detergents in our washer-disinfectors for which MEIKO have given their written approval. Approved products: • Rinse aid/water softener: Doyen SK 22 E / SK 33 E •... -
Page 9: Requirements For The Personnel
MEIKO T opLi ne Requirements for the personnel • Make sure that only trained and experienced staff operate the washer-disin- fector. • Personnel who have not been briefed or trained may not handle the washer- disinfector. • Make sure that staff learning to use the washer-disinfector are supervised by a trained and experienced operator at all times. -
Page 10: Safety Information
If the washer-disinfector is damaged or leaking, this may be dangerous and pose a safety hazard. Immediately decommission the washer-disinfector and inform the MEIKO service. • The water in the wash chamber and in the water container is NOT safe to drink. -
Page 11: What To Do In The Event Of An Emergency
Dispenser for liquid cleaner (DR), e.g. Doyen R100 • AT - Automatic door • Slop sink flushing • Load detection, see page 16. The washer-disinfector is available in the following models: • MEIKO TopLine 10 Type M2 (wall-mounted) 11 / 60 9020183... -
Page 12: Functional Description

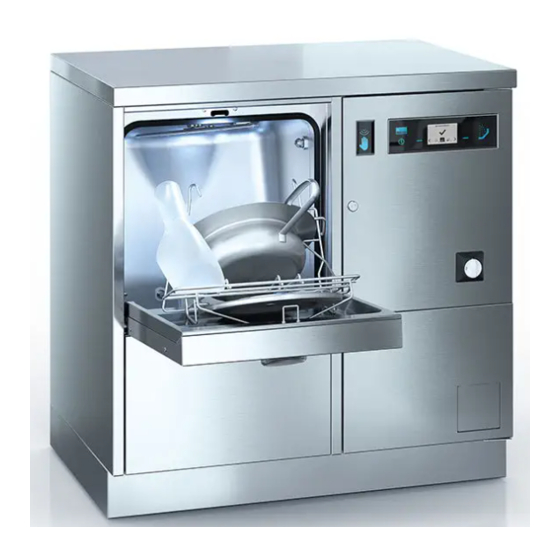

• MEIKO TopLine 20 Type M2 (standing) • MEIKO TopLine 30 Type M2 (wall installation) • MEIKO TopLine 40 Type M2 (undercounter) Functional description The washer-disinfector serves the emptying, cleaning and disinfecting of: • Bedpans, commode buckets and their covers •... - Page 13 MEIKO T opLi ne Thermal disinfection and recooling Thermal disinfection works according to the A process. The term A refers to a way of measuring (duration/temperature) how microorganisms are eliminated by moist heat disinfection methods. Thermal disinfection is fulfilled when the preset value is reached on all surfaces to be disinfected.
-
Page 14: Overview Illustration
Overview illustration MEIKO TopLine 20 Type M2 / TopLine 10 Type M2 (wall-mounted) 1 Glass operating panel 2 Infrared sensor for automatic wash chamber door (optional) 3 Mains disconnection device (device) 4 Wash chamber with cleaning nozzles 5 Load detection (optional) - Page 15 MEIKO T opLi ne MEIKO TopLine 40 Type M2 1 Wash chamber with cleaning nozzles 2 Infrared sensor for automatic wash chamber door (optional) 3 Glass operating panel 4 Load detection (optional) 5 Mains disconnection device (device) 6 Wash chamber door with...
-
Page 16: Options
Options 4.4.1 Detergent dosing An additional dosage of a detergent is recommended for heavily soiled care utensils. The detergent dosing comprises a complete dosing system (suction lance, hoses, dosing monitoring and dosing unit), which is installed in the appli- ance. 4.4.2 Load detection The device automatically detects suitable care utensils. -
Page 17: Slop Sink Flushing With Separate Slop Sink Unit
Data on operational times, consumption values and events can be read out via Bluetooth with the MEIKO Connect app and exported as a PDF. MEIKO Con- nect is available for Android in the Google Play Store and Huawei App Gallery. -
Page 18: Holder
Holder The holder takes the care utensils and brings them into the optimal position for cleaning and disinfection. Holder SUH 1 Holder SUH 2 9020183 18 / 60... - Page 19 MEIKO T opLi ne How to insert the care utensils in the holder SUH 1 Not suitable for load detection 19 / 60 9020183...
- Page 20 How to insert the care utensils in the holder SUH 2 Not suitable for load detection Positions of special holder • See separate care utensil image 9020183 20 / 60...
-
Page 21: Technical Data
MEIKO T opLi ne Technical data Protection MEIKO TopLine 10/20/30/40 Type M2: IP X4 degree Class I in accordance with VDE 0750 / IEC 601 Protection class Installation Max. height 2000 m above NHN, 5–40°C with max. 80% conditions relative humidity, exclusively for indoor use, degree of soiling 2, overvoltage category 2, mains voltage tolerance ±... - Page 22 62.45 l Total volume of the cham- MEIKO 81 kg MEIKO LT1 with WC 34 kg, Net weights TopLine 10 TopLine 30 LT2 66 kg Type M2 Type M2 MEIKO 83 kg MEIKO 81 kg (incl. plinth TopLine 20 TopLine 40...
- Page 23 MEIKO T opLi ne Electrical characteristics DT-NDV Rated current Rated power Mains voltage (± 10 %) 14,5 A 4,3 kW 3~PE 220 V 50 Hz 14,7 A 4,3 kW 3~PE 220 V 60 Hz 14,5 A 4,3 kW 3~NPE 220 V 50 Hz...
-
Page 24: Ec/Eu Declaration Of Conformity
Electrical characteristics DT-NDD Rated cur- Rated power Mains voltage Back-up fuse Boiler rent (± 10 %) – 4,9 A 0,8 kW 2~PE 200 V 50 Hz 16 A – 5,1 A 0,8 kW 2~PE 200 V 60 Hz 16 A –... -
Page 25: Fcc Compliance Statement Usa
MEIKO T opLi ne 5.1.1 FCC Compliance Statement USA This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de- signed to provide reasonable protection against harmful interference in a resi- dential installation. -
Page 26: Operation/Use
Operation/use Glass control panel Note For switching to one touch operation, see chapter “Switching to one touch operation” on page 49. Normal view One touch view Main screen Key/symbol Meaning Service access key/wake-up key Opens code entry window for advanced settings, see page 34. - Page 27 MEIKO T opLi ne Main screen Key/symbol Meaning Device status Ready for operation / programme phase Programme selection, see page 46. Shown inverted: active programme Confirmation key symbols Symbol Meaning Menu navigation Up/down; right/left; to last position Entry Confirm entry; back without change...
- Page 28 Status displays Symbol Meaning Symbol Meaning Device ready for Device switched off operation Door open Preheating Cold cleaning Warm cleaning Disinfection Cooling/drying End of programme Remove care utensils CAUTION! Hot care utensils! 9020183 28 / 60...
- Page 29 MEIKO T opLi ne Status displays Programme phases Cold cleaning Bar*: Programme progress 1 Fresh water temperature 2 Steam generator/wash chamber temperature Warm cleaning Bar*: Programme progress 1 Fresh water temperature 2 Steam generator/wash chamber temperature Disinfection Bar*: Programme progress...
-
Page 30: Clean And Disinfect Care Utensils (Programme Cycle)
Clean and disinfect care utensils (programme cycle) DANGER – Risk of explosion from solvent in the wash chamber • Never place solvents in the wash chamber. WARNING – Scalding due to high temperatures • Let care utensils cool sufficiently before removal. •... -
Page 31: Clean Care Utensils (Basic Version Of The Appliance)
MEIKO T opLi ne • Make sure that no foreign iron or other metal particles (e.g. copper filings) enter the washer-disinfector through the clean water supply. 8.2.1 Clean care utensils (basic version of the appliance) Only touch used care utensils when wearing protective gloves. Observe... - Page 32 With one touch operation, the cleaning 5. Press the programme start key. programme starts immediately after program selection! The programme progress is displayed by means of a progress bar and symbols for the cold cleaning, warm cleaning, disinfection and cooling/drying sequences, see page 26.
-
Page 33: Cancel Programme
MEIKO T opLi ne 8. Remove care utensils. 9. Close the wash chamber door. 8.2.2 Cancel programme In case the wrong cleaning programme has been started, it is possible to cancel the cleaning programme and start the correct programme. The wash chamber door remains locked until a complete programme run has taken place. -
Page 34: Selecting The Cleaning Programme
8.2.3 Selecting the cleaning programme When the appliance is ready for oper- ation, the programme selection bar is In one-touch operation, the cleaning located at the bottom centre of the dis- programmes can be started directly play. The set programme is displayed with the confirmation keys. - Page 35 MEIKO T opLi ne Execution Cleaning programmes Symbol Meaning MEIKO TopLine Short programme Type M2 Cleaning and disinfection of care utensils with Basic version liquids (e.g. urine bottles). value: 60 Runtime 410 s Minimum temperature 70 °C Standard programme Cleaning and disinfection of care utensils with human excreta (e.g.
-
Page 36: Automatic Door (At), Operation With Sensor (Option)
8.2.4 Automatic door (AT), operation with sensor (option) All AT (Automatic Door) models are equipped with a sensor which allows the wash chamber door to be open and shut automatically. Depending on the presetting of the washer-disinfector, the cleaning programme starts automatically after the door is closed. •... -
Page 37: Door Lock With Code Lock / Code Entry (Option)
MEIKO T opLi ne 8.2.6 Door lock with code lock / code entry (option) Note Operations that can be protected with code lock: • Open the door after end of programme • Programme start • Both The code is set to 1 ex works. It can be changed by the service technician. -
Page 38: Switching Off The Device
On/off key again. Factory setting of the A value The factory setting for the disinfection parameter for the A0 value is 60. To set another A0 value if required, contact MEIKO Service. Select A value Optionally, the A value can be increased up to 12000 in predefined steps for a one-time programme run, depending on the parameterisation of the appliance. -
Page 39: Replace Canister
• Follow the manufacturer of the dosing agent's first aid measures in an emer- gency. *) MEIKO recommends hanging up a description of the first aid measures near the machine. Note The canisters for the dosing agent are located in different places de- pending on the appliance, see chapter “Overview illustration”... -
Page 40: Perform Slop Sink Flushing (Option)
Perform slop sink flushing (option) CAUTION – Poor cleaning result of the slop sink flushing and splash- ing water due to incorrectly aligned cleaning nozzles • The nozzle groove must be aligned to the graining in the funnel. • Use a Phillips screwdriver to loosen the fixing screws, align the nozzles and tighten the screws manually. -
Page 41: Malfunctions
MEIKO T opLi ne 3. Press the programme start key. Rinsing for the separate slop sink unit starts and runs for the set time until the end of the programme. The programme progress is shown by means of a progress bar in the display. During the programme sequence, the wash chamber door is locked. - Page 42 The responsibility for • Residues are too suitable cleaning lies with the firmly dried operator. MEIKO recommends that the care utensils be subjected to basic manual cleaning and subsequent disinfection using appropriate protective equipment. 9020183...
-
Page 43: Messages
MEIKO T opLi ne 8.8.1 Messages When a malfunction occurs, a grey or red message is shown on the display depending on the nature of the malfunction. • Grey messages can be acknowledged using the relevant confirmation key. • Red messages usually require the deployment of an authorised service... - Page 44 Display text Explanation / actions • Call a service technician! No signal from level sensor Cold water not filled Hot water not filled • Alarm message! Timeout on filling • Device switches to the op- Pump run time too long erating state MACHINE Cold water temperature too high ->...
- Page 45 MEIKO T opLi ne Display text Explanation / actions Cable break on temperature sensor 2 on chamber Level not reached in low-pressure steam generator No dip below level in low-pressure steam generator • Rinse aid/water softener empty Check canister, replace if...
-
Page 46: Modifying Settings
Display text Explanation / actions • If this error message reoc- curs, call a service techni- cian • Door not unlocked No intervention/remedy possible by the operating Open lock - no feedback personnel • Door open and door locking closed? Cancel door lock in authori- sation level 1 •... - Page 47 MEIKO T opLi ne Level 1 – User configuration level Read/modify settings (service code 10001) The operator can carry out all functions required for normal operation and configure the settings in the i-menu. Level 4 – Dosing system level Read/modify settings (service code 60166) The user can view/edit all parameters relevant to dosing technology.
- Page 48 Symbol Level Description Hygiene View/set hygiene parameters Operational 1/4/5 View batches, operational times, etc. times View archived operational times, Daily log 1/4/5 events, etc. Set date/time, display settings, module Settings configuration Dosing View/set advanced dosing parameters technology Load/save parameters and languages, General 1/4/5 view software version, machine serial...
-
Page 49: 8.10 Switching To One Touch Operation
MEIKO T opLi ne 8.10 Switching to one touch operation For a faster workflow, the user interface can be switched to one touch operation. The cleaning programmes can be selected directly with the confirmation key in one touch operation and start immediately. The programme start key no longer needs to be pressed. -
Page 50: 8.11 Ventilating The Pipes
8.11 Ventilating the pipes The ventilation of the detergent or rinse pipes must be performed if air is sucked in from the dosing units. This occurs if a canister is completely emptied during operation, or if one of the suction lances is not threaded through to the base of the canister. -
Page 51: 8.13 Set Time Switch For Automatic Programme Start
MEIKO T opLi ne 6. Select the item Release Bluetooth 5. Select the Module configuration communication and confirm entry and confirm (checkmark). (checkmark). 7. Select the No item and confirm (checkmark). 8.13 Set time switch for automatic programme start 1. Press and hold the Service 2. -
Page 52: Maintenance And Cleaning
Maintenance Note In order to guarantee regular and correct maintenance, MEIKO recom- mends concluding a maintenance contract with MEIKO Service. Regular maintenance is a prerequisite for the long-term reliable and safe opera- tion of a washer-disinfector. -
Page 53: Next Maintenance" Sticker
Please refer to the maintenance plan for a detailed list of the maintenance con- tent. The maintenance plan is available for authorised and trained expert staff. MEIKO supplies pressure-resistant, flexible connecting hose pipes with a manu- facturer guarantee covering ten years worth of working hours. -
Page 54: Routine Check
Routine check Routine checks must be arranged by the operator on a daily basis before starting work. The following points must be checked visually: • The cleaning nozzles in the wash chamber (completeness and damage). • The wash chambers (dirt). •... -
Page 55: Descaling
If not used for a longer period, manually empty the pipe system. – Have the pipe system manually drained by a trained in-house technician or MEIKO Service, see service instructions. Decommissioning To decommission of the washer-disinfector, see the Service Instructions. - Page 56 The components should be separated by material for recy- cling. For professional decontamination, dismantling and disposal of the old appli- ance, you can contact MEIKO Service. 9020183 56 / 60...
- Page 57 MEIKO T opLi ne Index detergent dosing ......16 Dismantling and disposal .... 55 A0 value Disposal of packaging materials . 56 Factory setting ........38 Disposal of the old appliance ..56 Preselect..........38 Action menu ........ 48 Assembly ........25 EC/EU declaration of conformity .
- Page 58 Menu overview action menu ........48 Safety ..........7 i-menu ..........47 Safety information ....... 10 Messages ........43 Safety symbols in the instructions . 6 Modifying settings ....... 46 selecting the cleaning programme .......... 17, 34 Sensor ......... 36 Next maintenance sticker ... 53 Slop sink flushing ....
- Page 59 MEIKO T opLi ne Notes ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… 59 / 60 9020183...
- Page 60 MEIKO Maschinenbau GmbH & Co. KG Englerstraße 3 77652 Offenburg Germany www.meiko-global.com info@meiko-global.com Design and construction subject to change without prior notice! 9020183 / Valid from: 2019-02 / Update: 2021-09...
