  • Page 1 Operating instructions Universal vessel holder with urine and secretion bag cutter TopCut H Translation of the "Original operating instructions" Read operating instructions bevor using machine! 9756269 / Valid from: 2009-09 / Update: 2021-03 www.meiko-global.com...
  • Page 2: Table Of Contents

    CONTENTS Page PREFACE Scope General information INTENDED USE Suitable bag types STRUCTURE FUNCTIONAL DESCRIPTION OPERATION: INSERTING THE BAG CLEANING SAFETY INSTRUCTIONS NOTES IF TOPCUT IS NOT WORKING PROPERLY MAINTENANCE REPLACING A BLADE DECOMMISSIONING SPARE PARTS LIST 9756269 2 / 18...
  • Page 3: Preface

    These operating instructions apply to the Universal vessel hold with TopCut H urine and secretion bag cutter. The TopCut H is fully integrated into the 2013 model Topline and Topic cleaning and disinfection machines if the machine is to cut open and empty urine and secretion bags as well as clean urine bottles, bedpans and commode pans.
  • Page 4: Suitable Bag Types

    Suitable bag types Bag types suitable for use with the TopCut H: The following bags may be inserted, cut and emptied. TopCut H Capacity in Manufacturer Model 1500 Physioneal 40 Baxter 2500 Dianeal PD1 1500 1500 Ureofix 3500 Ureofix with outlet...
  • Page 5 BBraun Ureofix BBraun secretion bag Worek with outlet BBraun Vacufix 5 / 18 9756269...

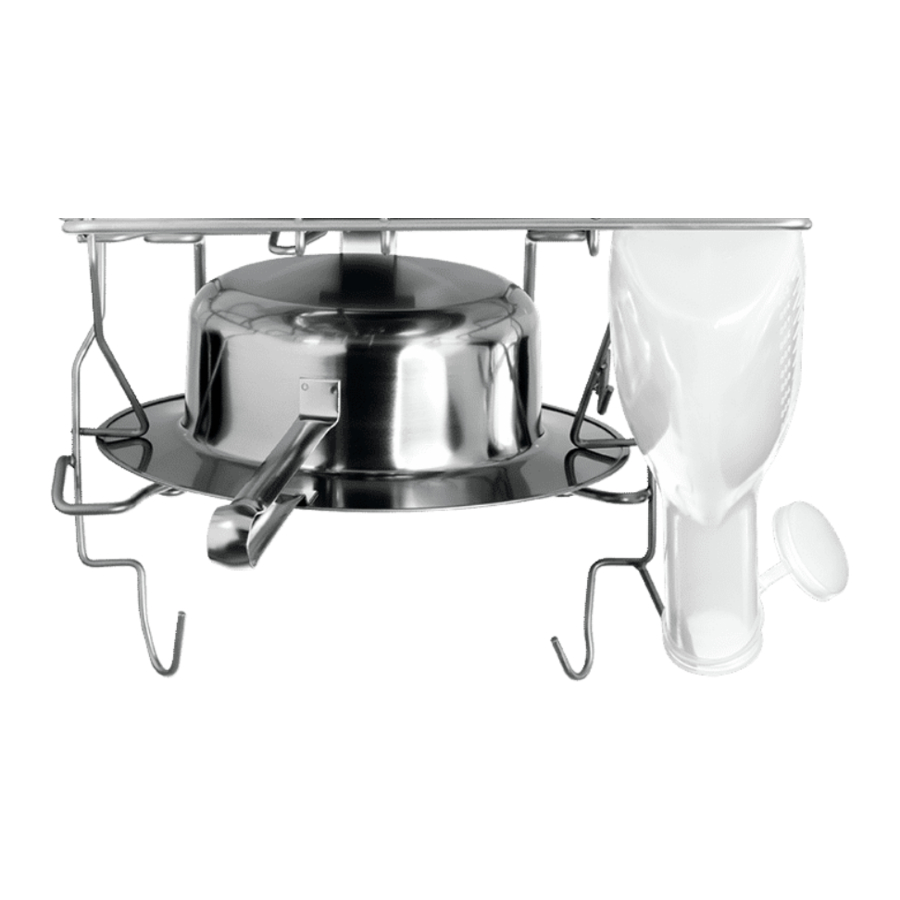

  • Page 6 The following care utensils can be placed in the TopCut H: Commode pot with lid and a urine bottle Plastic commode pot with lid and a urine together bottle together Bedpan with lid and a urine bottle 3 urine bottles together...
  • Page 7: Structure

    Structure Locking lever Vessel holder TopCut H Bag feed Blade 7 / 18 9756269...
  • Page 8: Functional Description

    Functional description TopCut H is fully integrated into the 2013 model Topline and Topic cleaning and disinfection machines. For safety and operational reasons, it is not to be used as a replaceable holder. The cutting mechanism is activated as the wash chamber door is closed.
  • Page 9: Operation: Inserting The Bag

    Operation: inserting the bag CAUTION! TopCut is equipped with a sharp blade at the front. If the TopCut is directly operated by hand, the blade poses a risk of injury. Inserting the bag to be emptied: Open the locking arm towards the back, place the bag centrally in the bag tray, in front of the blade.
  • Page 10: Cleaning

    Once the programme has finished, the bag has been emptied and disinfected and can be removed. Cleaning Once the programme has finished, the bag has been emptied and disinfected on the outside. The TopCut H has also been disinfected. 9756269 10 / 18...
  • Page 11: Safety Instructions

    TopCut is not to be used in devices with an automatic door. If used with an automatic door, the increased strain on the door drive may be damaged, as may the TopCut itself. For your safety and to avoid danger, only use authentic MEIKO spare parts. 11 / 18 9756269...
  • Page 12: Notes If Topcut Is Not Working Properly

    Notes if TopCut is not working properly  Bags are being used which do not adhere to the specifications. Only use suitable bags as listed in the section on "Suitable bag types."  Bags are being inserted incorrectly. -> Insert the bags as shown in the section on"Suitable bag types."...
  • Page 13: Maintenance

    Maintenance Maintenance work Note on completion daily monthly  Check blades are sharp and undamaged  Check smooth running of TopCut  Check mechanism has not been damaged, e.g. from falling  Check return spring  Check whether blade has retracted to protected position.
  • Page 14: Replacing A Blade

    Replacing a blade Dismount TopCut H and place on a secure work surface. Wear robust work gloves when working on the TopCut H.  Unscrew the blade fixture (M5 x 6 – crosshead)  Pull blade out  Install new blade, MEIKO item no.: 9658626 ...
  • Page 15: Spare Parts List

    Spare parts list Bag cutter TOPCUT H 9 10 15 / 18 9756269...
  • Page 16 BAG CUTTER TOPCUT H ITEM IDENT. NR. DESIGNATION DESIGNATION DESIGNATION IDENT. NO. 9658420 HALTER HOLDER SUPPORT 9658912 ZUGFEDER TENSION SPRING RESSORT DE TENSIONS 0308034 ZYLINDERSCHRAUBE PAN SCREW VIS CYLINDRIQUE 0340021 SCHEIBE DIN 125-A LIMPET DIN 125-A RONDELLE DIN 125-A 9667198...
  • Page 17 17 / 18 9756269...
  • Page 18 MEIKO Maschinenbau GmbH & Co. KG Englerstraße 3 77652 Offenburg Germany www.meiko-global.com info@meiko-global.com Design and construction subject to change without prior notice! 9756269 / Valid from: 2009-09 / Update: 2021-03...
