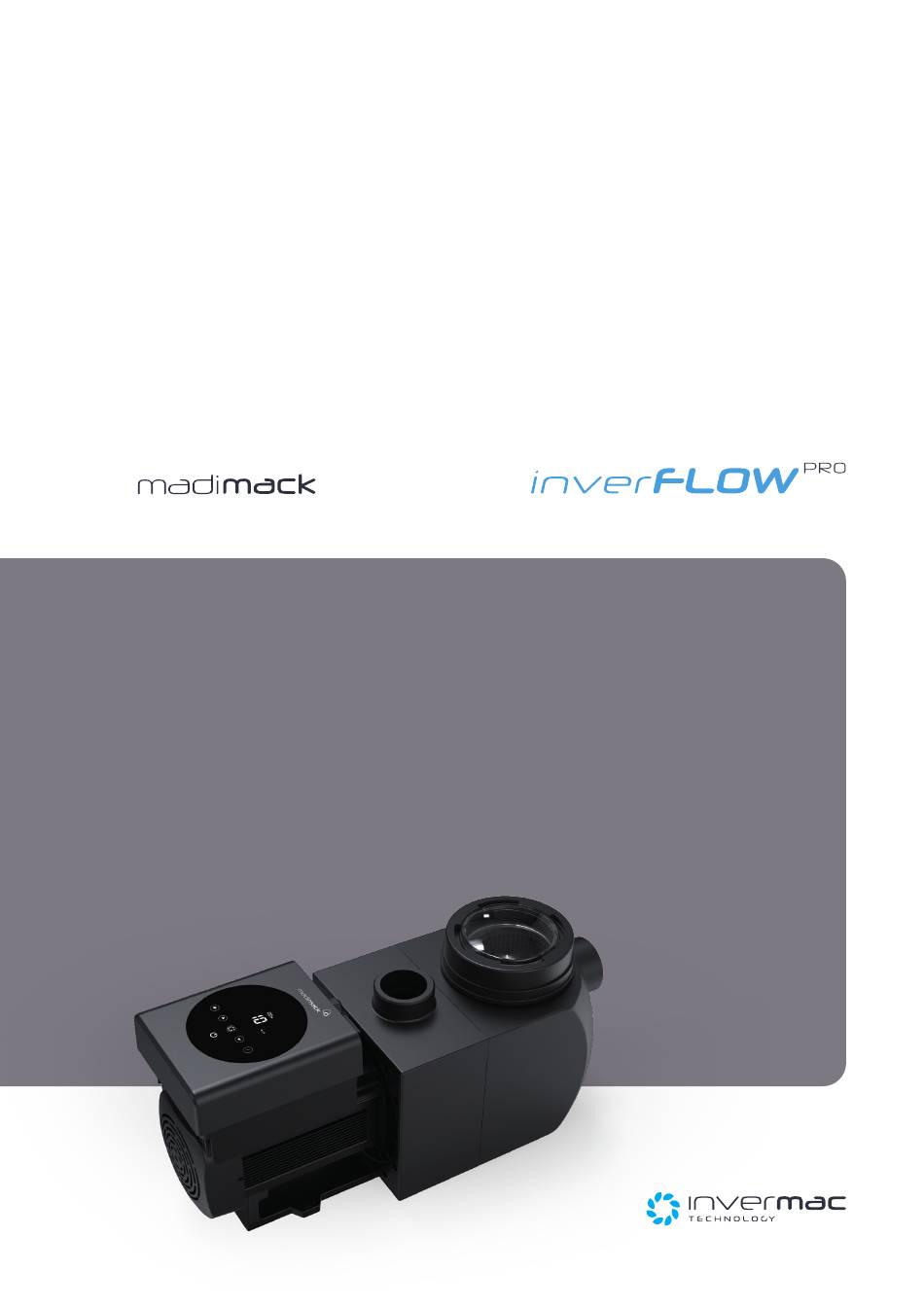

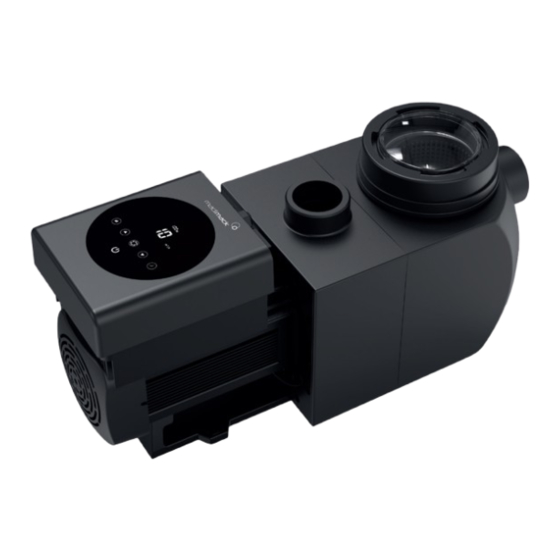

- Page 1 INSTALLATION MANUAL Powered by...
-
Page 2: Table Of Contents
9. CONFIGURATIONS WITH HEATING SYSTEM 5.2 Startup 10. WIFI OPERATION 5.3 Self-priming 5.4 Manual - inverter mode 11. CONNECTING TO MADIMACK HEAT 5.5 Auto - inverter mode POOL PUMP POOL HEATER 5.6 Timer mode Adaptive Flow/ Blurb 5.7 Skimmer Mode 12. -
Page 3: Technical Specifications
2. TECHNICAL SPECIFICATIONS INPUT POWER Voltage Max Flow Head Max Circulation Advised Model (V/Hz) (L /min) Power Power Flow at 8m Flow at 10m l Volume L/min L/min 220~240 INVPRO300 30~50 0.75 50/60 220~240 INVPRO400 40~70 1.05 50/60 220~240 INVPRO500 50~80 1.40 20.5... -
Page 4: Pump Location
continue INSTALLATION 4.2. Pump Location 4.3. Piping The pump should be installed in an area with at least 150mm Suction and return connections on the pool pumps are 50mm distance around the unit away from any obstacles and away pressure pipe dimensions. from any corrosive products. -
Page 5: Setting And Operation
On/ Off Timer 1/2/3/4 5.2 Startup Before operation. The default flow range for Madimack Inverflow Pro Fill the basket with water before starting up the pump. is as below: When the power is switched on, the screen will fullu illuminate... -
Page 6: Manual-Inverter Mode
continue SETTING AND OPERATION Note: 5.4 Manual-Inverter Mode When the pipeline pressure is too high, to maintain an adequate Hold for more than 3 seconds to unlock the flow rate, user can set the running capacity to 105%-120%. screen. The pump will run at a higher speed but will not exceed the rated power of each model. -
Page 7: Skimmer Mode
continue SETTING AND OPERATION 5.7 Skimmer Mode The skimmer mode enables the pump to skim the water surface, prevents the debris from accumulating, and provides users with a cleaner pool. Hold to enter the preset interface of the skimmer mode, press to view the 3 presets, the selected preset will be activated after 8s without operation. -
Page 8: External Control
External control can be enabled via following contacts. If more than one external control is enabled, the priority is as below: Digital Input >Analog Input > RS485 > Panel control Connector location for Quick connect between Madimack Pool Heat pump and other pump requirements (RS485, Digital inputs). -
Page 9: Digital Input
continue EXTERNAL CONTROL a. Digital input Running capacity is determined by the state of digital input, (5 pin) When PIN4 connect with PIN5, the pump will be mandatory to stop; if disconnected, the digital controller will be invalid; When PIN3 connect with PIN5, the pump will be mandatory to run at 100%; if disconnected, the control priority will be back on panel control; When PIN2 connect with PIN5, the pump will be mandatory to run at 80%;... -
Page 10: Error Code
continue PROTECTION AND FAILURE 7.4 Error code hen the device detects an error (except for the running capacity reduction strategy and 485 communication failure), it will power off automatically and display an error code. Errors can be sometimes caused by power surge or power interference and can be reset by powering down for 1min and restarting. -
Page 11: Configurations With Heating System
9. CONFIGURATIONS WITH HEATING SYSTEM An onboard output initiates the circulation pump to start and stop from heat pump itself based on the temperature and timers. For use when there are dedicated heating pipes and to separate Power outlet Use quick connect cable “pump output ELV” socket. Pump is activated by heater timer and temperature. -
Page 12: Wifi Operation
10. WIFI OPERATION InverFlow Download Account registration a. Email Registration Register by email or third-party application 9:41 9:41 Register Code Email Address Obtain verification code Obtain verification code your email 1249815078@qq.com Android" Resend(53s) I Agree User Agreement and Privacy Policy Didn‘t get a code? b. - Page 13 continue WIFI OPERATION Operation 1) Using Auto Inverter mode: 9:41 Change flow rate units InverFlow Error code list Real-time power consumption Turn the control dial to set the flow rate Obtain verification code L/min Auto Inverter mode Timer Data On/off 2) Using Manual Inverter mode: 9:41 InverFlow...
- Page 14 continue WIFI OPERATION Sharing Devices with your family members After pairing, if your family members also want to control the device, please let your family members register “InverFlow” st, and then the adminstrator can operate as below: 9:41 9:41 9:41 InverFlow InverFlow Device settings...
-
Page 15: Connecting To Madimack Heat
Pool pump Heat pump Adaptive Flow - Perfect Pairing with Madimack Pool Heat Pump The Perfect Pairing uses the intelligent communicaiton functions of the pool heat pump to activate the speed required for the pool pump ensuring the most e cient solution for your pool and equipment. -
Page 16: Diagram
12. DIAGRAM 12.1 Exploded view Name Name Name O-ring (13.2x2.65mm) T Union Fan cover Cross recess head screw O-ring (62x4.5mm) Motor Volute Base Union Nut O-ring (8x1.8mm) Transition Joint Cross recess head screw Turnable Ring Hex Nut O-Ring for Joint (56x5.3mm) Socket Head Cap Screw Pumb Body Spring Washer... -
Page 17: Warranty & Exclusions
LIMITED WARRANTY Madimack warrants that its products are free from defects in materials and manufacture for a period of 4 years from the date of Please visit www.madimack.com.au for all warranty terms and conditions Madimack will, at its discretion, repair or replace any product proven to be defective during the warranty period for either materials or manufacture. -
Page 18: Disposal
14. DISPOSAL Observe all safety and warning information during installation and operation. 13.2 DISPOSING OF YOUR ELECTRICAL PRODUCT 13.1 DISPOSAL CONSIDERATIONS Electrical devices marked with this label may not be The transport and protective packaging has been selected disposed of in domestic waste at the end of their service from materials which are environmentally friendly for life. - Page 20 AG045-IH-05...
