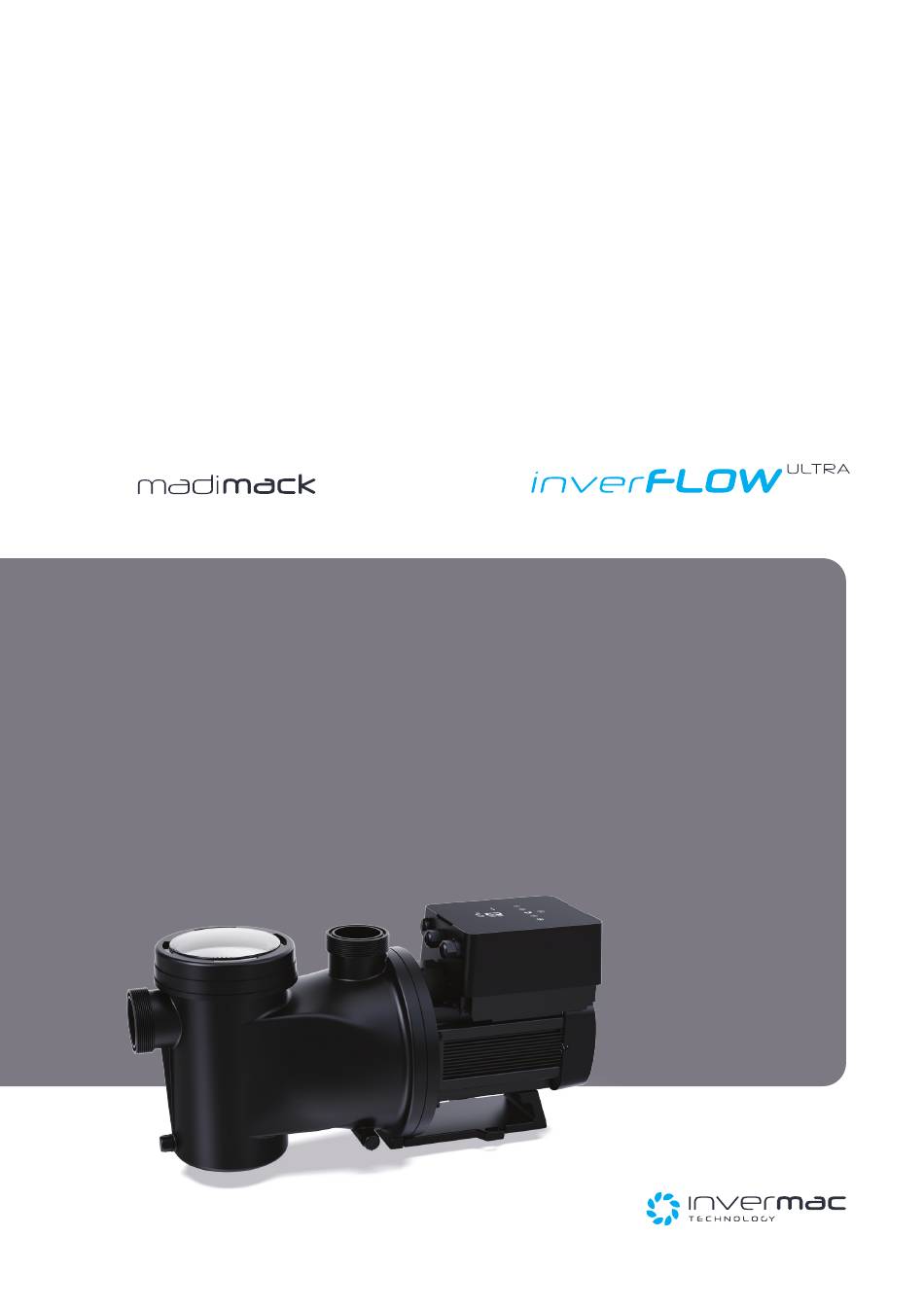

- Page 1 INSTALLATION MANUAL Powered by...
-
Page 2: Table Of Contents
9. CONFIGURATIONS WITH HEATING SYSTEM 5.3 Self-priming 10. WIFI OPERATION 5.4 Backwash 5.5 Manual - inverter mode 11. CONNECTING TO MADIMACK HEAT 5.6 Auto - inverter mode POOL PUMP POOL HEATER 5.7 Timer mode Adaptive Flow/ Blurb 5.8 Skimmer Mode 12. -
Page 3: Technical Specifications
2. TECHNICAL SPECIFICATIONS INPUT POWER Voltage Max Flow Head Max Circulation Advised Model (V/Hz) (L /m) Power Power Flow at 8mh Flow at 10m l Volume L/min L/min 220~240 INVULT300 30~50 0.75 18.0 50/60 220~240 INVULT400 40~70 1.05 20.0 50/60 220~240 INVULT500 50~80... -
Page 4: Pump Location
continue INSTALLATION 4.2. Pump Location 4.3. Piping The pump should be installed in an area with at least 150mm Suction and return connections on the pool pumps are 50mm distance around the unit away from any obstacles and away pressure pipe dimensions. from any corrosive products. -
Page 5: Setting And Operation
On/ Off Timer 1/2/3/4 5.2 Startup Before operation. The default flow range for Madimack Inverflow Pro Fill the basket with water before starting up the pump. is as below: When the power is switched on, the screen will fullu illuminate... -
Page 6: Backwash
continue SETTING AND OPERATION 5.4 Backwash 5.5 Manual-Inverter Mode Start the Backwash procedure by pressing the backwash button Hold for more than 3 seconds to unlock the ). Once activated the timer will start to count down on the screen. main screen. -
Page 7: Skimmer Mode
continue SETTING AND OPERATION 5.8 Skimmer Mode The skimmer mode enables the pump to skim the water surface, prevents the debris from accumulating, and provides users with a cleaner pool. Hold to enter the preset interface of the skimmer mode, press to view the 3 presets, the selected preset will be activated after 8s without operation. -
Page 8: External Control
6. EXTERNAL CONTROL External control can be enabled via following contacts. If more than one external control is enabled, the priority is as below: Digital Input >Analog Input > RS485 > Panel control Connector for configurable user inputs, including Digital Input and RS485 Connector for external control AC power input... -
Page 9: Digital Input
continue EXTERNAL CONTROL a. Digital input Running capacity is determined by the state of digital input, (5 pin) When PIN4 connect with PIN5, the pump will be mandatory to stop; if disconnected, the digital controller will be invalid; When PIN3 connect with PIN5, the pump will be mandatory to run at 100%; if disconnected, the control priority will be back on panel control; When PIN2 connect with PIN5, the pump will be mandatory to run at 80%;... -
Page 10: Error Code
continue PROTECTION AND FAILURE 7.4 Error code hen the device detects an error (except for the running capacity reduction strategy and 485 communication failure), it will power off automatically and display an error code. Errors can be sometimes caused by power surge or power interference and can be reset by powering down for 1min and restarting. -
Page 11: Configurations With Heating System
9. CONFIGURATIONS WITH HEATING SYSTEM Configuration 1 (Separate heating system) An onboard output initiates the circulation pump to start and stop from heat pump itself based on the temperature and timers. For use when there are dedicated heating pipes and to separate from the filtration timers. -
Page 12: Wifi Operation
10. WIFI OPERATION InverFlow Download Account registration a. Email Registration Register by email or third-party application Android" b. Third-party application registration iOS" Create Home Please set home name and choose the location of the device. (It is recommended to set the location so the weather can be shown in the App for your convenience). - Page 13 continue WIFI OPERATION Operation 1) Using Auto Inverter mode: Change flow rate units Error code list Real-time running capacity Real-time power consumption Turn the control dial to set the flow rate Auto Inverter mode Timer Data Backwash On/off 2) Using Manual Inverter mode: Real-time power Real-time consumption...
- Page 14 continue WIFI OPERATION Sharing Devices with your family members After pairing, if your family members also want to control the device, please let your family members register “InverFlow” first, and then the adminstrator can operate as below: Feedback If you have any problem while using, welcome to send feedback. Notice: 1) Weather forecast is just for reference;...
-
Page 15: Connecting To Madimack Heat
Pool pump Heat pump Adaptive Flow - Perfect Pairing with Madimack Pool Heat Pump The Perfect Pairing uses the intelligent communicaiton functions of the pool heat pump to activate the speed required for the pool pump ensuring the most efficient solution for your pool and equipment. -
Page 16: Diagram
12. DIAGRAM 12.1 Exploded view Explosive Explosive Part Name Part Name Diagram Code Diagram Code T union O-ring(204.5*4.5mm) Union nut Stainless-Steel hex head bolt O-ring(62*4.5mm) Pressure sensor Strainer Basket Flat key O-ring for Transparent Lid Inverter controller (132*5.3mm) Fan cover Transparent Lid Nut for lid Motor... -
Page 17: Warranty & Exclusions
LIMITED WARRANTY Madimack warrants that its products are free from defects in materials and manufacture for a period of 4 years from the date of purchase, unless otherwise specified. -
Page 18: Disposal
14. DISPOSAL Observe all safety and warning information during installation and operation. DISPOSING OF YOUR ELECTRICAL PRODUCT DISPOSAL CONSIDERATIONS Electrical devices marked with this label may not be The transport and protective packaging has been selected disposed of in domestic waste at the end of their service from materials which are environmentally friendly for life.
