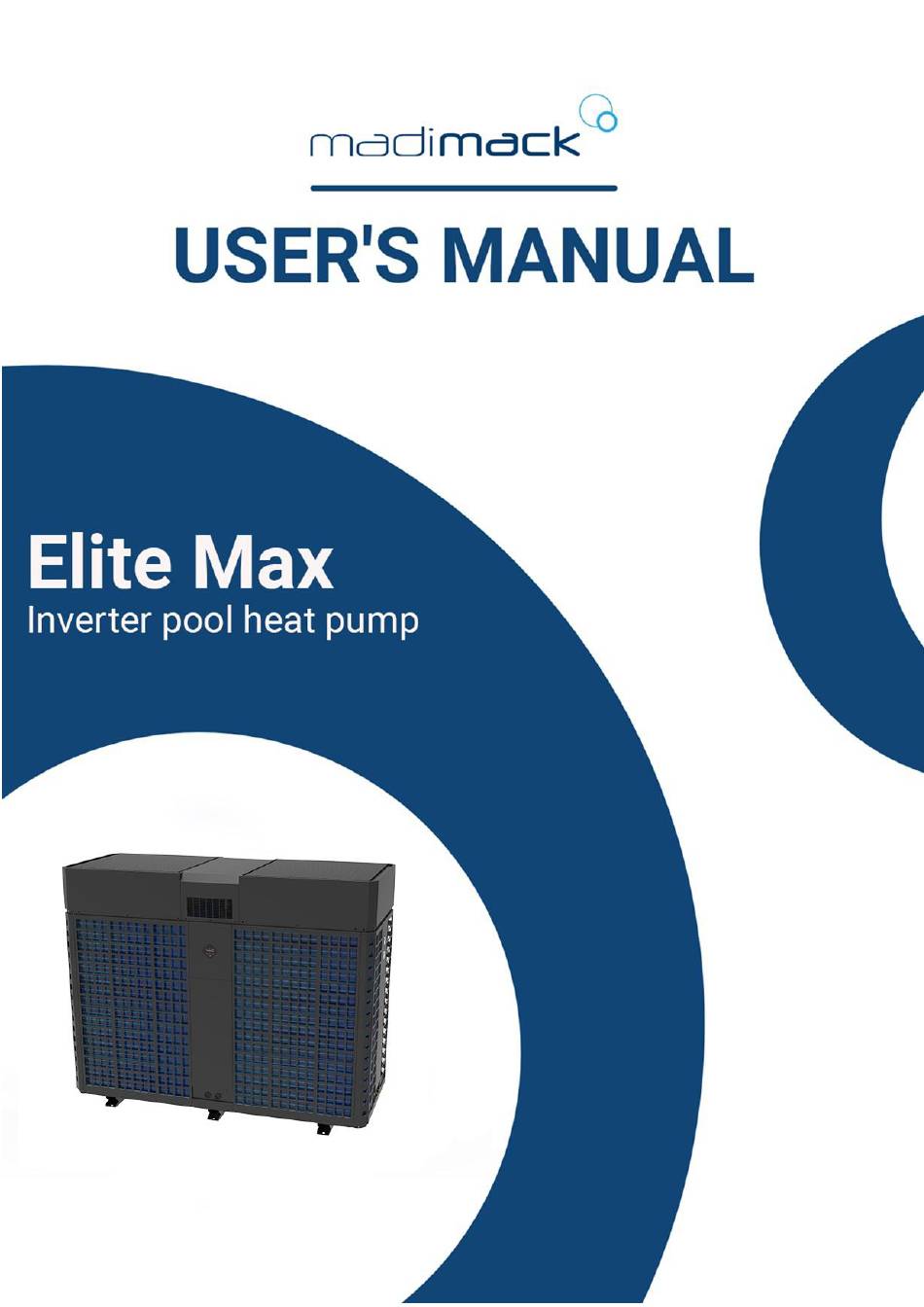

Madimack Elite Max User Manual

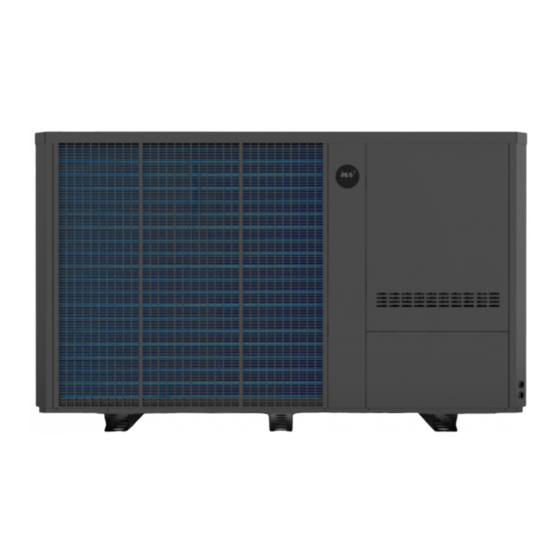

Inverter pool heat pump
Hide thumbs Also See for Elite Max:
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite Max and is the answer not in the manual?

Questions and answers

Related Manuals for Madimack Elite Max

Summary of Contents for Madimack Elite Max

  • Page 3 INDEX...
  • Page 4 FOREWORD Thank you for choosing the Madimack high efficiency inverter pool heat pump! All our heat pumps are built and designed to the highest standard and are protected by our extended warranty service for peace of mind. Warranty registration is required to be submitted online in conjunction with the...
  • Page 5 COVER THE BASICS: 1. Check that you have received the package in good condition 2. Every residential heat pump comes with two accessory boxes and the manual. The manual will mention all the parts and where they belong to make sure that the unit is commissioned, as per the 'commissioning' section, and that adequate water flow rate is provided 3.

  • Page 6: Safety Precautions

    Safety Precautions...
  • Page 7 We have provided important safety messages in this manual for the installation, maintenance, and repair of your heater. Please read thoroughly and obey all safety messages. Environmentally friendly R32 Refrigerant is used in this heat pump. 1. Warning This WARNING sign denotes a hazard. It calls attention to a procedure, practice, or the like, which, if not correctly performed or adhered to, could result in personal injury or injury to a third party.
  • Page 8 2. Attention a. Please read the following instructions before installation, use and maintenance. b. Installation must be completed only by competent persons only, and in accordance with this manual. c. Check all water connections are sealed and tested before operating the machine d.

  • Page 9: About Your Heat Pump

    About your heat pump...
  • Page 10 A. About your heat pump Transportation Always keep upright Remove the screws attached to the tray and thread the lanyard. Transported by a crane, the sling should handle at least 1260KG Do not lift the water union, otherwise, the titanium heat exchanger inside the heat pump may be damaged.
  • Page 11 Accessories: Operating condition and range: To provide you comfort and pleasure, please set swimming pool water temperature efficiently and economically. The heat pump can work between air -10°C～43°C, and its ideal operation range is between air 15°C ~ 25°C. Introduction of different modes: The heat pump has three modes: Power and perfect and Silence.
  • Page 12 Technical parameter Model EM2500 PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80% Heating capacity (kW) 252.0 COP Range 7.0 - 15.0 PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. 70% Heating capacity (kW) 185.0 COP Range 5.5 - 8.0 PERFORMANCE CONDITION: Air 35°C/ Water 28°C/ Humid. 80% Cooling Capacity (kW) 110.0 TECHNICAL SPECIFICATIONS...
  • Page 13 6. Dimension Size (mm) Name Model EM2500 1892 1051 1040 2601 2069...

  • Page 14: Installation Guidance

    Installation Guidance...

  • Page 15: Ventilation Requirements

    Ventilation requirements case: Single unit – 3 obstacles Must be clear Top Model number EM2500 Distance A (mm) 2000 Distance B (mm) 2000 Distance C (mm) 2000 1- these are absolute minimum distances and where possible should always have a greater difference.
  • Page 16 case: Single unit – 3 obstacles Must be clear Top Model number EM2500 Distance A (mm) 2000 Distance B (mm) 2000 Distance C (mm) 2000 Distance D (mm) 4000 1- These are absolute minimum distances and where possible should always have a greater difference.
  • Page 17 Plumbing Multiple units: Multiple heat pumps acting as one system should be connected in Cascade (Parallel Connection). Adequate flowrate should be provided to all the units in the system to ensure efficient heating (Please refer to the commissioning section in the manual to learn about heat pumps commissioning).

  • Page 18: Installation Reminder

    1. Installation reminder Only competent persons are authorized to install the heat pump and should be educated with the relevant building codes and standards of their current state or local governing body for all electrical, mechanical and water services to prevent danger or damage to the unit. a.
  • Page 19 2. Placing the unit and water connections a. Placing the unit and fixing • The frame must be fixed by bolts (M10) to a concrete foundation or brackets. The concrete foundation must be solid and fastened; the bracket must be strong enough and anti-rust treated.

  • Page 20: Wiring Requirements

    3.Wiring requirements a. Connect the heat pump to an appropriate power supply, the voltage should comply with the rated voltage of the product. b. The machine must be earthed c. Wiring must be handled by a professional technician according to the circuit diagram. d.
  • Page 21 Step 2. Power cord must be passed through below 3 holes  Connect the wire through the holes   Connect the power cord through the wiring hole to the front Close the electrical box and tighten the terminal block screws ...

  • Page 22: Electric Wiring Diagram

    Electric wiring Diagram For power supply: 400V 50Hz Distribution Box(Not provided) Swimming Pool Heat Pump Wiring Board Power Cord Power Supply Fuse 400V 50Hz Breaker Earth Must be hard wired, plug is not allowed. Note: 1) 2) The swimming pool heat pump must be earthed Current protection devices must be installed in accordance with local electrical regulations...

  • Page 23: Installation Options

    Installation options Flow switch activated heating The heat pump is activated by the flow of water initiated from the filtration/circulation pump, if the heater gets to temperature within the timers the unit will first start to use the inverter technology to slow the machine down to maintain the temperature and eventually to a stop. A: Chlorinator B: Filter C: Pool pump...
  • Page 24 o Heat pump activation without using the chlorinator controller and using the one pump used for filtration (additional controller required) An on-board pump output relay can activate the main filtration pump by using it in combination with a “single pump controller” without using the chlorinator timers needing to be activated which will stop over chlorination but still use a single supply pipework for the pool.
  • Page 25 7- Circulation pump should be sized accordingly to suit the site conditions and flow required. 8- Adjust parameter “P6” to 100 as per section E Please consult Madimack for assistance required in wiring into the heat pump 1300 899 737...
  • Page 26 • Solar retro In some situations, when a heat pump is replacing a solar heating system, the pipework is available to be used next to the house but there is no way of adding a new electrical circuit to the pool equipment. With the use of an additional temperature sensor you can use the in-built flow switch to activate the heating.
  • Page 27 • Automation systems and additional controls The heat pump comes with easy to connect terminals in the electrical compartment labelled as 5 and 6. The unit comes prewired with a bridge cable connected. To add an external control to activate the heat pump, remove the bridge and add in a volt free terminal connection.

  • Page 28: Operation Guidance

    Operation Guidance...
  • Page 29 1. Key Function and screen display Symbol Heating & cooling models i. Power On/Off ii. Wi-Fi setting i. Lock/Unlock Screen ii. Heating mode (18-40°C) iii. Cooling mode (12-30°C) iv. Auto mode (12-40°C) i. Power ii. Perfect iii. Silence Temperature Setting a.
  • Page 30 2. Operation Instruction Screen Lock 1) Press for 3 seconds to lock or unlock the screen 2) Automatic Lock Period: 30 seconds if no operation b. Power On Press for 3 seconds to unlock screen, Press to power on machine. Temperature Setting Press to display and adjust set temperature.
  • Page 31 f. Defrost cycle • Automatic active defrosting When the machine is operating in low temperatures it is very common for ice to build up on the external coil. The heat pump has a built in defrost protection program which will activate when it senses ice starting to form.
  • Page 32 Testing Parameters...

  • Page 33: Trial Run

    Heat pump checks before use The air inlets and outlets are free of any debris and are not obstructed. b. Refrigeration pipes or components are not installed in a corrosive environment. Check electric wiring connections are tight and adhere to the electrical schematic d.
  • Page 34 Running status check a. Press and hold for 5 seconds, a beep sound should be heard and it will enter into running status mode b. Use to switch through the different values c. Press again to quit can running status mode 5.

  • Page 35: Parameters Table

    6. Parameters Table Step Content Adjust range Default length 0：Continuation Water pump running way 1：Water temp control 2：time/water temp control Time setting ( only available when the water pump 10 ~ 120 min 5 min 60 min running way is set to “2” Compressor continuously running time in 30 ~ 90min 1min...
  • Page 36 Commissioning...

  • Page 37: Flow Rates

    Madimack Heat Pumps have a built-in flow switch which will deactivate the heating function if not enough water flow is detected. The Heat Pump has a large range operation up to a seven-degree differential.

  • Page 38: Maintenance

    Maintenance...
  • Page 39 “SWITCH OFF” power supply to the heater before cleaning or examination In winter season when you don’t swim: a. Cut off power supply to prevent any machine damage. b. Drain water clear of the machine. c. Cover the machine body when not in use. !!IMPORTANT: Unscrew the water nozzle of inlet pipe to let the water flow out.

  • Page 40: Troubleshooting For Common Faults

    Troubleshooting for common faults...
  • Page 41 1. Repairing Guidance WARNING! If repairs or removal is required, contact authorized service centre. Requirements for Service Personnel Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.
  • Page 42 Display Protection code description No water protection Power supply excesses operation range Excessive temp difference between inlet and outlet water(Insufficient water flow protection) Ambient temperature too high or too low protection Anti-freezing reminder Display Failure code description High pressure protection Low pressure protection 3 phase sequence protection (three phase only) Water outlet temp too high or too low protection...
  • Page 43 Ambient temp sensor failure Cooling plate sensor failure Current sensor failure Restart memory failure Compressor drive module failure PFC module failure Compressor start failure Compressor running failure Inverter board over current protection Inverter board overheat protection Current protection Cooling plate overheat protection Fan motor failure AC fan control board/inverter failure Bus bar (BUS) fault...
  • Page 44 Note: The unit will be displaying a number in addition to the error code indicating the issue location System A failure will only have the error code with no other display after error code. System B failure Display 2 after error code. System C fault Display 3 after error code.
  • Page 45 Wi-Fi operation For video tutorials and further help please visit www.Madimack.com.au FAQ for all you need to do and full walkthrough. It is crucial that the WiFi is over the machine and is of a high power, the WiFi is a cloud based solution and needs the WiFi to be active on the machine for it to receive a signal.
  • Page 46 InverGo Download Account Registration Register by e-mail or third-party application. Android a. E-mail registration.
  • Page 47 b. Register through third-party application Create Family Please set family name and choose location of device.
  • Page 48 APP Pairing a. With Bluetooth 1. Please confirm that you’re connected to Wi-Fi and your Bluetooth is on. 2. Click “Add Device”, and then follow the instructions to pair device.
  • Page 49 b. With Wi-Fi 1. Please make sure you are connected to Wi- 2. Press " " for 3 seconds to unlock the screen. Press “ ” for 3 seconds and release. After hearing “Beep”, enter Wi-Fi password in app. During connection, “...
  • Page 50 Operation 1. For heat pump with Heating function only: Indicate High/ Compressor Medium/Low mode speed °C/°F switch Setting Inlet water temperature temperature Query Select High/ Medium/Low Mode Timer On/Off 2. For heat pump with Heating & Cooling function: Indicate High/ Compressor Medium/Low mode speed...
  • Page 51 Share Devices to Your Family Members After pairing, if your family members also want to control the device, please let your family members register “InverGo” first, and then the administrator can operate as below: Notice: Weather forecast is just for reference. App is subject to updates without notice.
  • Page 52 Your Australian Consumer Law guarantees, and similar statutory rights, are called the “Owner’s Statutory Rights” in this Warranty. THE RIGHTS GIVEN BY MADIMACK AUSTRALIA 2 YEARS WARRANTY ARE IN ADDITION TO THE OWNER’S STATUTORY RIGHTS.
  • Page 53 Equipment defects covered by this Warranty will be repaired or replaced at the discretion of Madimack (subject to the Owner’s rights under the Australian Consumer Law with respect to major failures) without cost to the owner for parts or direct repair labour.
  • Page 54 Madimack for any defect of design, materials or workmanship will be limited to any of the following as determined by Madimack: - Replacing the equipment or supplying equivalent equipment;...
  • Page 55 Please take 2 or 3 photos of the installation and with this information upload them online at https://www.madimack.com.au/warranty-registration or use the barcode scanner to go direct to the page. Supplied by...
  • Page 56 AQ01CKV185-R410A-V22...

This manual is also suitable for:

Em2500
