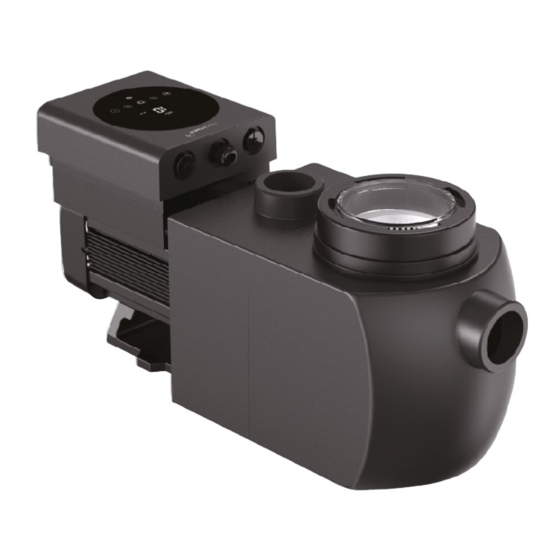

ELITE VS Pool Pump
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELITE VS and is the answer not in the manual?

Questions and answers

Summary of Contents for Madimack ELITE VS

  • Page 1 ELITE VS Pool Pump Installation Manual...
  • Page 2: Table Of Contents

    8. MAINTENANCE 5.1 Display on control panel Lid Cleaning 5.2 Startup 9. WIFI OPERATION 5.3 Self-priming 10. CONNECTING TO MADIMACK HEAT 5.4 Backwash POOL PUMP POOL HEATER 5.5 Auto - inverter mode Adaptive Flow/ Blurb 5.6 Manual - inverter mode 11.
  • Page 3: Technical Specifications

    Head Max Circulation Advised (V/Hz) (L /m) Model Power Power Flow at 8mh Flow at 10m l Volume L/min L/min 220~240 Elite VS 300 30~50 0.07~0.76 11.5 50/60 220~240 Elite VS 400 40~70 0.07~1.03 14.5 50/60 220~240 Elite VS 500 50~80 0.075~1.34...
  • Page 4: Pump Location

    continue INSTALLATION 4.3. Piping 4.2. Pump Location The pump should be installed in an area with at least 150mm Suction and return connections on the pool pumps are 50mm distance around the unit away from any obstacles and away pressure pipe dimensions. from any corrosive products.
  • Page 5: Setting And Operation

    On/ Off Timer 1/2/3/4 5.2 Startup Before operation. The default flow range for Madimack Elite VS Fill the basket with water before starting up the pump. is as below: When the power is switched on, the screen will fullu illuminate...
  • Page 6: Backwash

    continue SETTING AND OPERATION 5.4 Backwash 5.6 Manual-Inverter Mode The running capacity can be set manually according to different Start the Backwash procedure by pressing the backwash button application needs. To Reset, just power it OFF, then ON again. ). Once activated the timer will start to count down on the main screen.
  • Page 7: External Control

    External control can be enabled via following contacts. If more than one external control is enabled, the priority is as below: Digital Input >Analog Input > RS485 > Panel control Connector location for Quick connect between Madimack Pool Heat pump and other pump requirements (RS485, Digital inputs).
  • Page 8: Digital Input

    continue EXTERNAL CONTROL a. Digital input Running capacity is determined by the state of digital input, (5 pin) When PIN4 connect with PIN5, the pump will be mandatory to stop; if disconnected, the digital controller will be invalid; When PIN3 connect with PIN5, the pump will be mandatory to run at 100%; if disconnected, the control priority will be back on panel control; When PIN2 connect with PIN5, the pump will be mandatory to run at 80%;...
  • Page 9: Error Code

    continue PROTECTION AND FAILURE 7.4 Error code When the device detects an error (except for the running capacity reduction strategy and 485 communication failure), it will power off automatically and display an error code. Errors can be sometimes caused by power surge or power interference and can be reset by powering down for 1min and restarting.
  • Page 10: Wifi Operation

    9. WIFI OPERATION InverFlow Download Account registration a. Email Registration Register by email or third-party application Android" b. Third-party application registration iOS" Create Home Please set home name and choose the location of the device. (It is recommended to set the location so the weather can be shown in the App for your convenience).
  • Page 11 continue WIFI OPERATION Operation 1) Using Auto Inverter mode: Change flow rate units Error code list Real-time running capacity Real-time power consumption Turn the control dial to set the flow rate Auto Inverter mode Timer Data Backwash On/off 2) Using Manual Inverter mode: Real-time power Real-time consumption...
  • Page 12 continue WIFI OPERATION Sharing Devices with your family members After pairing, if your family members also want to control the device, please let your family members register “InverFlow” fi t, and then the adminstrator can operate as below: Feedback If you have any problem while using, welcome to send feedback. Notice: 1) Weather forecast is just for reference;...
  • Page 13: Connecting To Madimack Heat

    Only available on late 2022 Madimack models. Socket Pool pump Heat pump Adaptive Flow - Perfect Pairing with Madimack Pool Heat Pump The Perfect Pairing uses the intelligent communicaiton functions of the pool heat pump fi your pool and equipment.
  • Page 14: Diagram

    11. DIAGRAM 11.1 Exploded view Name Name Name O-ring T Union Fan cover Cross recess head screw O-ring Motor Volute Union Nut Base O-ring Cross recess head screw Transition Joint Turnable Ring O-Ring for Transition Joint Hex Nut Socket Head Cap Screw Pumb Body Spring Washer Strainer Basket...
  • Page 15: Warranty & Exclusions

    LIMITED WARRANTY Madimack warrants that its products are free from defects in materials and manufacture for 12months from date of supply by fi in the circumstances described below, eother repair or replace any product proven to be defective during warranty period for either materials or manufacture or alternately pay the cost of repair or replacement within 90 days of the receipt of the defective product, barring unforeseen delays.
  • Page 16: Disposal

    13. DISPOSAL Observe all safety and warning information during installation and operation. 13.2 DISPOSING OF YOUR ELECTRICAL PRODUCT 13.1 DISPOSAL CONSIDERATIONS The transport and protective packaging has been selected disposed of in domestic waste at the end of their service from materials which are environmentally friendly for life.

This manual is also suitable for:

Elite vs 300Elite vs 400Elite vs 500
