Instruction manual
Bermad surge anticipation manual
Model No 435
Installation and operation
Manual
Bermad Surge Anticipation Valve
Model No 435
Bermad Water Technologies
Rev 0
5/05/2015
7 Inglewood Drive , Thomastown Vic 3074
Ph (03) 9464 5949
1
www.bermad.com.au
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BERMAD 435
Summary of Contents for BERMAD 435
- Page 1 Instruction manual Bermad surge anticipation manual Model No 435 Installation and operation Manual Bermad Surge Anticipation Valve Model No 435 Bermad Water Technologies Rev 0 5/05/2015 7 Inglewood Drive , Thomastown Vic 3074 Ph (03) 9464 5949 www.bermad.com.au...

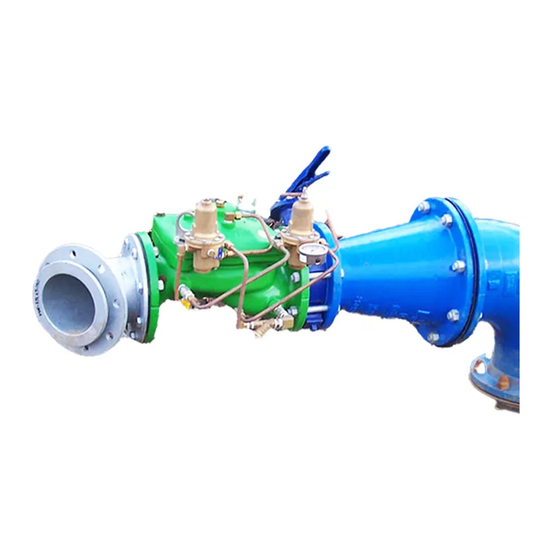

- Page 2 Model No 435 Valve Description The model No 435 Surge Anticipation Valve is an off line , hydraulically operated diaphragm actuated control valve. The valve sensing the line pressure, opens in response to the pressure drop associated with the rapid pump stoppage. The pre opened valve dissipates the returning high pressure wave, eliminating the surge.
-
Page 3: Installation And Sizing

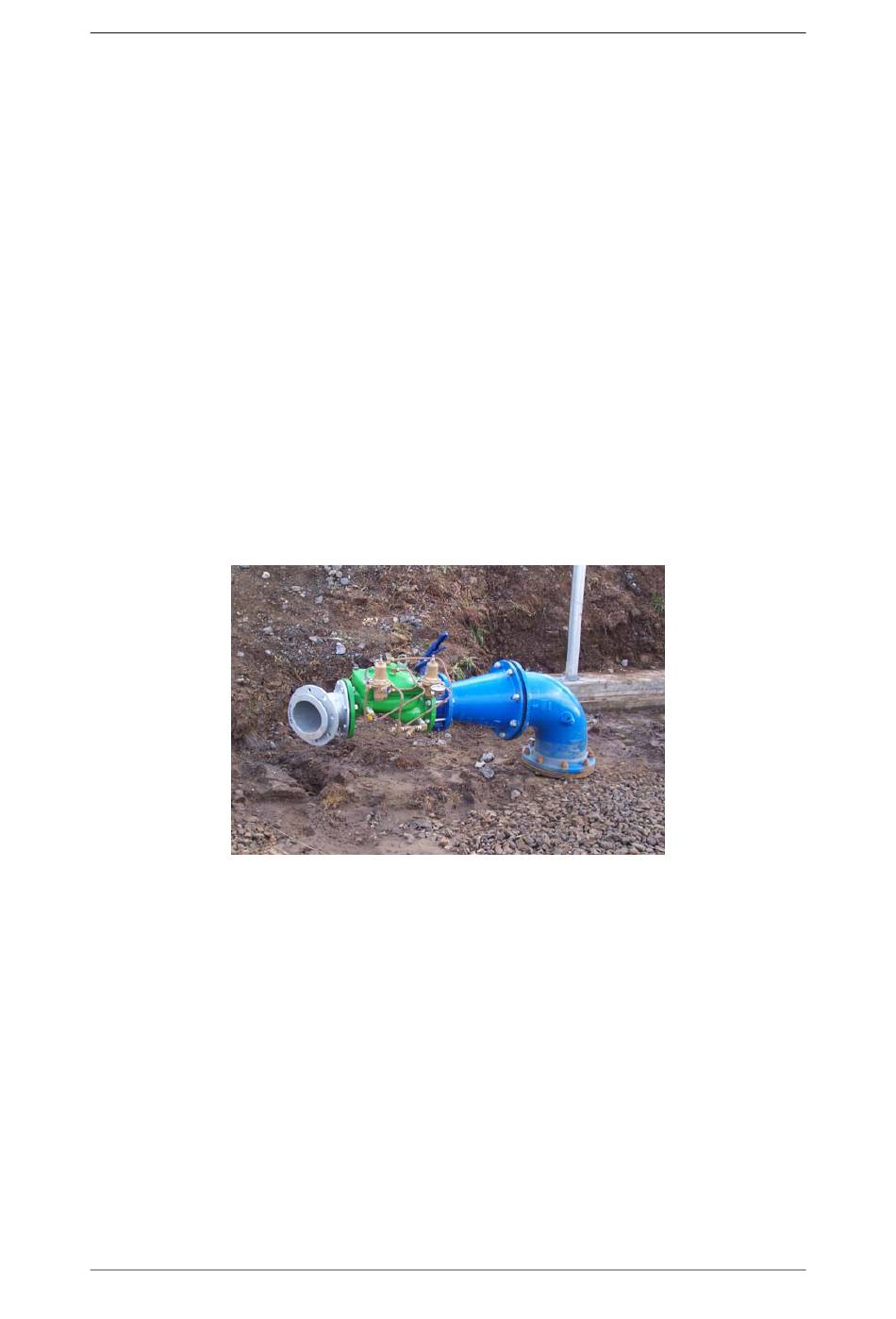

The pipe must go to atmosphere and allow the surge to relieve without back pressure. If running pipe down a river bank, vacuum breakers (such as Bermad model 50mm C10) must be installed in order to avoid pipe collapsure. This will also cause the valve to slam close which will also generate a secondary pipe surge. - Page 4 1. Ensure the pipeline is fully charged and the pipe is full as in normal operation. 2. Ensure you have a copy of the pump curve to identify the operation of the pumps. 3. Prior to opening the butterfly valve ensure the following is done to the Bermad 435 valve. ...
- Page 5 Instruction manual Bermad surge anticipation manual Model No 435 Normal operation of the Surge Valve. It is really important that the valve is always on line and ready to operate. Make sure the following are always open. Inlet butterfly valve must be open.
-
Page 6: Spare Parts
BERMAD IR Spare Parts 400 Series Basic Control Valves For Irrigation (IR) Sizes: ¾-10 ;״DN20-250 Effective 10/2014... - Page 7 BERMAD IR Spare Parts 400 Series Basic Control Valves For Gardening (LS) Sizes: ¾-2 ;״DN20-50 Effective 10/2014...
- Page 8 BERMAD IR Spare Parts 400 Series Basic Control Valves (IR & WW) Sizes: 12-14 ;״DN300-350 Effective 10/2014...
- Page 9 BERMAD IR Spare Parts 400 Series Accessories Effective 10/2014...
- Page 10 BERMAD WW Spare Parts Accessories Large Control Filter 2-234 "O" ring 2-227 "O" ring 2-227 "O" ring 2-014 "O" ring 2-234 "O" ring Effective: Jan/08...
- Page 11 BERMAD Spare Parts Pilots #3 2-way Pressure Sustaining Pilot Valve 2/05...
- Page 12 BERMAD Spare Parts Pilots #2 2-way Pressure Reducing Pilot Valve 2/05...
