BERMAD
Hydraulic
Hydrant Valve
Model: FP 405-02
Typical Applications
Industrial fire fighting hydrant replacing
mechanical valves
Petrochemical plant
Oil & gas storage
Features and Benefits
■
Easy manual opening requires only 1/4 turn of
pilot handle
■
One-piece molded diaphragm assembly –
No distortion caused by high differential pressure
■
Quick cover removal – Minimal down time
■
Never "sticks" closed – Reliability
■
Simple design
Optional Features
■
Seawater service (Add FS as prefix to model)
■
Corrosive environment materials
■
Foam resistant coating
■
Storz quick coupling connector
Fire Protection
Operation

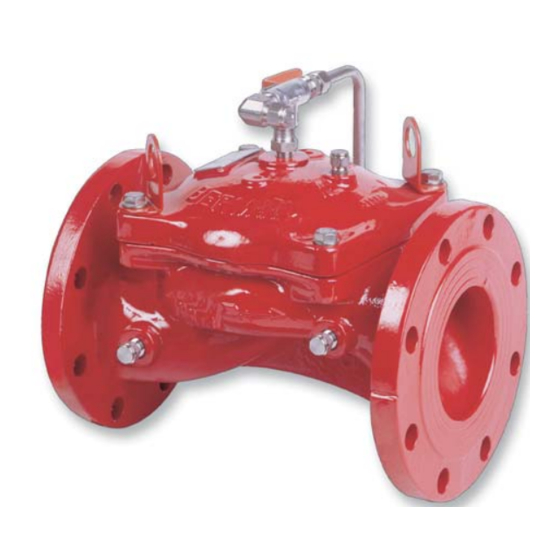

The BERMAD Model FP 405-02 is a simply designed,
manually operated, on/off valve. It is particularly suited for
industrial hydrants.
The valve is held closed when line pressure is applied to
the control chamber. Sealing is drip tight keeping the
downstream piping dry.
To open, pressure is manually released from the control
chamber by a
1
/
turn of the Manual Release Pilot handle.
4
Valve Open
400 Series
