BERMAD
Pressure Reducing
Valve
Flow and leakage reduction
Cavitation damage protection
Throttling noise reduction
Burst protection
System maintenance savings

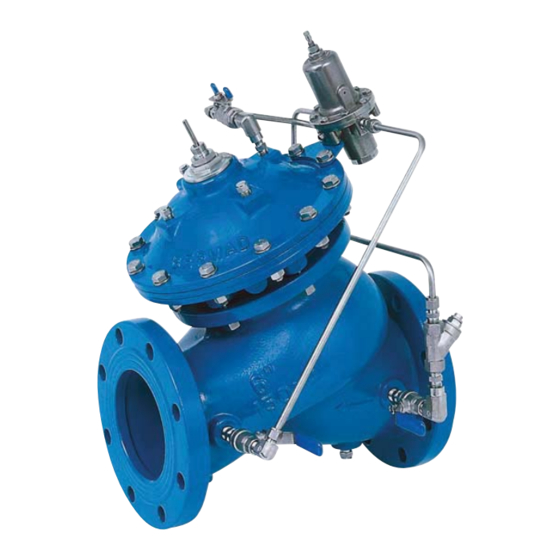

The Model 720 Pressure Reducing Valve is a hydraulically
operated, diaphragm actuated control valve that reduces
higher upstream pressure to lower constant downstream
WYLZZ\YL YLNHYKSLZZ VM Å\J[\H[PUN KLTHUK VY ]HY`PUN
upstream pressure.
Features and Benefits
Line pressure driven – Independent operation
In-line serviceable – Easy maintenance
Double chamber design
Moderated valve reaction
Protected diaphragm
Flexible design – Easy addition of features
Variety of accessories – Perfect mission matching
"Y" or angle, wide body – 4PUPTPaLK WYLZZ\YL SVZZ
6HPLVWUDLJKW ñRZ – 5VU[\YI\SLU[ ÅV^
Stainless Steel raised seat – Cavitation damage resistant
Obstacle free, full bore – Uncompromising reliability
V-Port Throttling Plug – 3V^ ÅV^ Z[HIPSP[`
Waterworks
Major Additional Features
<3 3PZ[LK MVY ÄYL WYV[LJ[PVU – FP-720-UL
Solenoid control – 720-55
Check valve – 720-20
:VSLUVPK JVU[YVS JOLJR ]HS]L – 720-25
Proportional – 720-PD
Automatic regulation override – 720-09
High sensitivity pilot – 720-12
Emergency pressure reducing valve – 720-PD-59
Downstream over pressure guard – 720-48
Electrically selected multi-level setting – 720-45
,SLJ[YVUPJ T\S[PSL]LS ZL[[PUN ;`WL ; – 720-4T
Electronic pressure reducing valve – 728-03
See relevant BERMAD publications.
700 Series
Model 720
