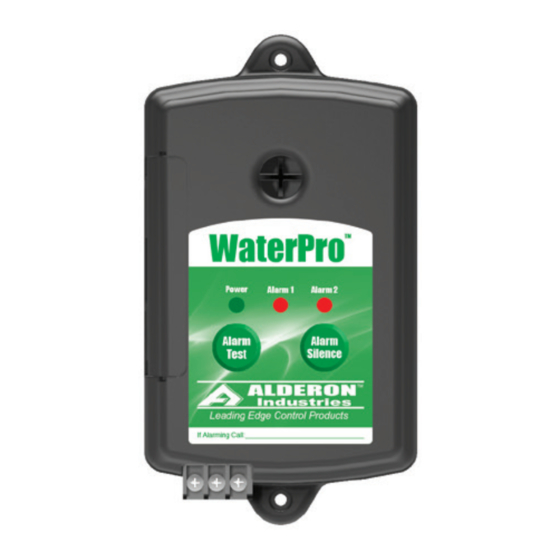

WaterPro Alarm Panel
™
Model - VA02A
Operation, Maintenance and Installation Manual

Introduction

Before proceeding with the installation or operation of the product, make sure to read all instructions
thoroughly, as well as complying with all federal, state and local codes, regulations and practices.
The product must be installed by qualified personnel familiar with all applicable local electrical and
mechanical codes. Refer to the National Electric Code (NFPA 70). Failure to properly install and test
this product can result in personal injury or equipment malfunction.

Safety Guidelines

1. DISCONNECT ALL ELECTRICAL SERVICE BEFORE WORKING ON OR HANDLING THE PRODUCT.
2. DO NOT USE WITH FLAMMABLE OR EXPLOSIVE FLUIDS SUCH AS GASOLINE, FUEL OIL, KEROSENE, ETC. DO
NOT USE IN EXPLOSIVE ATMOSPHERES.
3. ALARM PANEL MUST BE MOUNTED INDOORS. FOR OUTDOOR APPLICATIONS, CONSULT FACTORY.

Description of Operation

The WaterPro™ 2-Zone alarm panel is powered by 120VAC coming from standard wall outlets and is transformed to 9-11.1
VDC. Installing a 9 Volt battery provides battery backup during power outages.
When a switch (signaling device) contact closes, the buzzer will annunciate and alarm LEDs will illuminate with the built in
auxiliary contacts activating. Pressing the silence pushbutton will deactivate the buzzer while the alarm LEDs remain on.
When the alarm is remedied, the system will automatically reset itself for the next alarm cycle.

Tools, Supplies and Requirements for Installation - Not Included

1. Phillips screw driver
2. (Qty 2) #6 self-tapping screws
3. Access to 120 VAC power receptacle (see Step 2)
4. Optional - (Qty 2) #8 plastic anchor (if mounting to sheet rock)
5. Optional - 9V battery (used for battery backup during power outages)
6. Optional - Wire stripper (used if you need to strip wire to connect to a BAS or SCADA system)
7. Optional - Needle nose pliers (if using the auxiliary contacts)
