Functions compatible with the 2020 Audi A4 (Smart Key)
*Telematics features: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart Pro.
* Odometer
Arm Factory Security
Brake Status (foot brake)
Control of aftermarket alarm with OEM remote
Disarm Factory Security
Door Lock Control
Door Locks Status
Door Unlock
Driver Priority Unlock
E-Brake Status
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Fuel level/EV battery level
Heated Seats Activation
Ignition Status
RAP Shut Down (Retained ACC Power)
Rear Window Defogger Activation
Remote Start Ready
Remote Start Takeover
SmartStart
Tach / RPM Output
Trunk / Hatch Release
403.VW08
v2.00
2020 Audi A4 (Smart Key)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEI LLC DB3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Voxx Electronics DEI LLC DB3

  • Page 1 403.VW08 v2.00 2020 Audi A4 (Smart Key) Functions compatible with the 2020 Audi A4 (Smart Key) *Telematics features: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart Pro. * Odometer Entry Monitoring Trunk/Hatch Pin Arm Factory Security Fuel level/EV battery level Brake Status (foot brake) Heated Seats Activation...
  • Page 2: Table Of Contents

    Contents Introduction Pre-installation and application warnings Wiring diagram Locating components in the vehicle Vehicle connections Module programming Module programming for convenience only (skip transponder) Connecting the module LED diagnostics and troubleshooting Soft reset Hard reset Feature programming Feature and option list Limited one year consumer warranty Quick Reference Guide (customer copy)
  • Page 3: Introduction

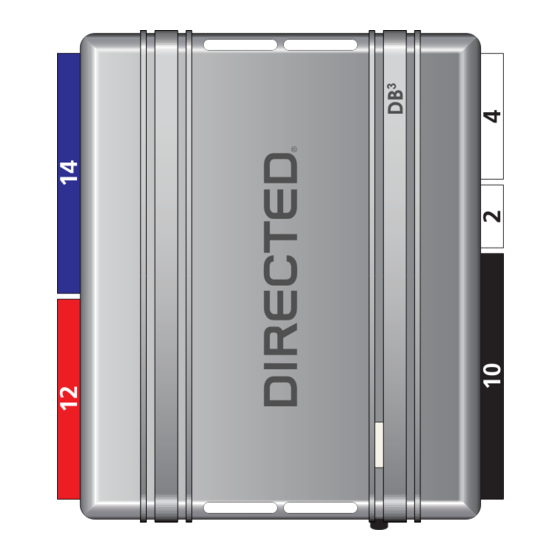

    Introduction DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.VW08 2.00 2020 Audi A4 (Smart Key) ©2023 Directed.
  • Page 4: Pre-Installation And Application Warnings

    Pre-installation and application warnings This section highlights important information for this specific firmware and will assist in pricing accordingly, as START HERE well as bringing awareness to any operational or vehicle limitations. Compatibilities and Requirements T-Harness Keys required for Keys required programming for operation compatible...
  • Page 5: Wiring Diagram

    Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( Comfort System Module Comfort System Module (blue/white conn. (brown conn. in left Comfort System Module in left rear quarter panel, rear quarter panel, below fuse box) XKD2D65...
  • Page 6: Locating Components In The Vehicle

    Locating components in the vehicle Locating components in the vehicle Vehicle’s rear trunk Comfort System Module (left rear quarter panel) 403.VW08 2.00 2020 Audi A4 (Smart Key) ©2023 Directed. All rights reserved.
  • Page 7: Vehicle Connections

    Vehicle connections The connection information listed below is specific to the 2020 Audi A4 (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1...
  • Page 8 Input 10-pin black connector (H3) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green (-) W2W Only - Lock Input Remote Starter H3/2 Blue (-) W2W Only - Unlock Input Remote Starter H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter H3/4 White/Violet...
  • Page 9: Module Programming

    Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. Ensure vehicle is in a safe location, and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift lever is in the neutral position. The harnesses must be connected in this exact order:  ...
  • Page 10 Module programming for security-only installations Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes. Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift is in the neutral position. Connect the 12-pin main power harness to the module.
  • Page 11: Connecting The Module

    Connecting the module Important! Make all the required connections to the vehicle, as described in this guide, and double-check to ensure everything is in order before moving onto the programming. Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. To flash a module using your computer: Connect the interface module to your computer using the XKLoader2.
  • Page 12: Led Diagnostics And Troubleshooting

    LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power.
  • Page 13   Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...
  • Page 14: Soft Reset

    Soft reset A module reset will only erase the steps perfomed in “Module Programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness. (12-pin) (D2D) (Button)
  • Page 15: Feature Programming

    Feature programming To enter feature programming routine: Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the programming button. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.
  • Page 16: Feature And Option List

    Feature and option list Depending on your vehicle, some of the features and options listed below may need to be configured using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.
  • Page 17: Limited One Year Consumer Warranty

    Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor.
  • Page 18: Quick Reference Guide (Customer Copy)

    Quick Reference Guide (customer copy) Sending commands to your vehicle Pit stop/idle mode Whether you want to remote start the engine, lock/unlock the doors or pop the trunk, there Stop the vehicle in a safe parking spot and put the gear gear in Park are 3 possible ways you can send commands to your vehicle, using the: in Park (P).
  • Page 19 Notes 403.VW08 2.00 2020 Audi A4 (Smart Key) ©2023 Directed. All rights reserved.
