Model: 7051

Installation:

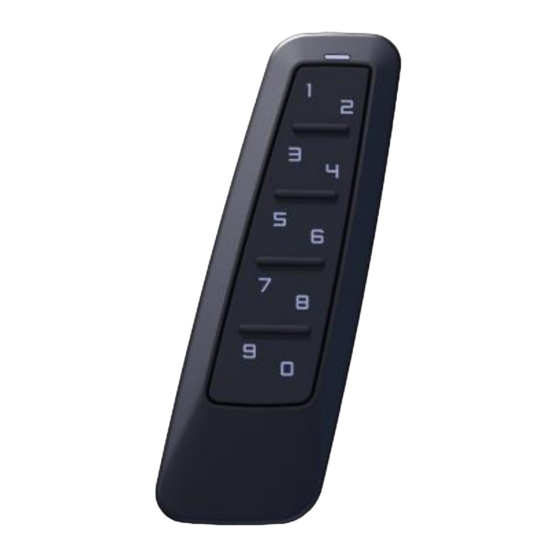

The 5-button model 7051 is designed to be placed on the driver's side pillar, rear of the cabin.
To mount the 7051 unit:
1. Clean and prep the installation area with an isopropyl alcohol-based solution.
2. Allow the surface to dry completely before placing the keypad on the pillar.
3. Remove the red plastic backing from the adhesive pad on the rear of the keypad.
Firmly press for 60 seconds to ensure proper adhesion to the vehicle.
To program the 7051 unit:
1. Set the DS4 to pairing mode
2. On the keypad, enter configuration mode by simultaneously pressing buttons 1/2 [Button1] +
3/4 [Button2] + 9/0 [Button5] for at least 2 seconds.
Backlight LED will flash three times.
3. Enter the master code.
Keypad LED will flash two times.
4. Press and hold button 5/6 [Button3] until the DS4 unlocks the vehicle, to confirm pairing has
been successful.
5. Turn the ignition OFF.
2022-03-31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7051 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Voxx Electronics 7051

  • Page 1 Model: 7051 Installation: The 5-button model 7051 is designed to be placed on the driver’s side pillar, rear of the cabin. To mount the 7051 unit: 1. Clean and prep the installation area with an isopropyl alcohol-based solution. 2. Allow the surface to dry completely before placing the keypad on the pillar.
  • Page 2 To program a personal pin code: The user can assign a 5-digit secondary password. Note: Keypad must be paired to a DS4 before entering the secondary code. 1. Enter configuration mode by pressing and holding buttons 1/2, 3/4 and 9/0, indicated by three blinks of backlight.
  • Page 3 The Lock function (press 7/8 and 9/0 simultaneously) will continue to operate even if the keypad is in Anti-Scan/Lockup mode. • After one minute, the Anti-Scan Mode will deactivate, and the keypad functions will reset to normal operation. • If the three attempts fail to enter the correct 5-digit code (master code or personal code) for a second or third time, the keypad will activate “Anti-Scan/Lockout Mode”...
  • Page 4 FCC compliance This device complies with Part15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including any interference that may cause undesired operation.
  • Page 5 Radiation Exposure Statement: This equipment complies with IC radiation exposure limits established for an uncontrolled environment. This equipment must be installed and operated with a minimum distance of 20 cm between the radiation source and your body. Déclaration d'exposition aux radiations : Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé.
