170126.0319/k
Handkreissäge
Sägesystem
Portable circular saw /
cross-cutting system
Scie circulaire portative /
Système de mise à longueur
Sega circolare portatile /
Troncatrice a sega
Handcirkelzaag
Kapzaagsysteem
Sierra circular manual /
Sistema de tronzar
Käsisirkkeli
Katkaisusahajärjestelmä
Handcirkelsåg
Kapsågsystem
Håndrundsav
savesystem
WARNUNG
Lesen Sie alle Sicherheitshinweise und Anweisungen. Versäumnisse bei der Einhaltung der Sicherheitshinweise und Anweisungen
können elektrischen Schlag, Brand und/oder schwere Verletzungen verursachen. Bewahren Sie alle Sicherheitshinweise und
Anweisungen für die Zukunft auf.
WARNING
Please read all safety instructions and directions. Failure to comply with the safety instructions and directions can cause electric shock, fire
and/or serious injuries. Please retain all safety instructions and directions for future reference.
AVERTISSEMENT
Veuillez lire toutes les consignes de sécurité et instructions. Tout non-respect des consignes de sécurité et instructions risque d'être à
l'origine de décharges électriques, d'incendies et/ou de blessures graves. Conservez toutes les consignes et instructions pour pouvoir les
relire à tout moment.
AVVERTENZA
Leggere tutte le avvertenze di sicurezza e le istruzioni. La mancanza del rispetto delle avvertenze di sicurezza e delle istruzioni possono
causare scossa elettrica, incendio e/o gravi lesioni. Conservare tutte le avvertenze di sicurezza e le istruzioni per il futuro.
WAARSCHUWING
Lees alle veiligheidsaanwijzingen en instructies. Nalatigheid bij het naleven van de veiligheidsinstructies en aanwijzingen kan elektrische
schok, brand en/of ernstige letsels veroorzaken. Bewaar alle veiligheidsaanwijzingen en instructies voor later gebruik.
ADVERTENCIA
Lea todas las indicaciones de seguridad e instrucciones. Si no se cumplen las indicacionesde seguridad e instrucciones, se pueden
producir descargas eléctricas, incendios y/o lesiones graves. Guarde todas las indicaciones de seguridad e instrucciones para el futuro.
VAROITUS
Lue kaikki turvaohjeet ja käyttöohjeet. Laiminlyönti turvaohjeiden ja käyttöohjeiden noudattamisessa voi aiheuttaa sähköiskun, tulipalon
ja/tai vakavia vammoja. Säilytä kaikki turvaohjeet ja käyttöohjeet tulevaisuuden varalle.
VARNING
Läs alla säkerhetsanvisningar och anvisningar. Underlåtenhet att följa säkerhetsanvisningar och anvisningar kan orsaka elstötar, brand
och/eller allvarliga personskador. Behåll alla säkerhetsanvisningar och anvisning för framtida användning.
ADVARSEL
Læs alle sikkerhedshenvisninger og instruktioner. En manglende overholdelse af sikkerhedshenvisningerne og instruktionerne kan føre til
elektrisk stød, brand og/eller alvorlige kvæstelser. Opbevar alle sikkerhedshenvisninger og instruktioner til fremtidig brug.
/
Kapp-
Originalbetriebsanleitung
Translation of the original operating instructions
Traduction de la notice d'emploi originale
Traduzione delle istruzioni per l'uso originali
/
Vertaling van de originele gebruiksaanwijzing
Traducción del manual de instrucciones original
/
Käännös alkuperäiskäyttöohjeesta
/
Översättning av originalbruksanvisningen
/
kap-
Oversættelse
betjeningsvejledning
af
den
originale
6
17
28
39
50
61
72
83
93
Advertisement
Table of Contents
Related Manuals for Mafell KSP 40 Flexistem
Summary of Contents for Mafell KSP 40 Flexistem

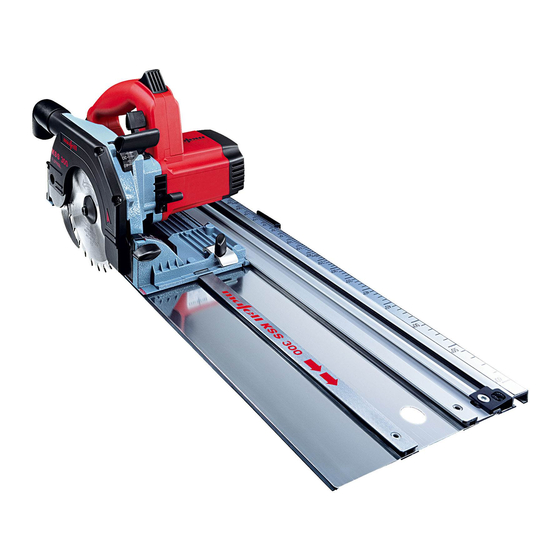

- Page 1 170126.0319/k Handkreissäge Kapp- Originalbetriebsanleitung Sägesystem Portable circular saw / Translation of the original operating instructions cross-cutting system Scie circulaire portative / Traduction de la notice d'emploi originale Système de mise à longueur Sega circolare portatile / Traduzione delle istruzioni per l’uso originali Troncatrice a sega Handcirkelzaag Vertaling van de originele gebruiksaanwijzing...
-
Page 5: Table Of Contents
English Table of Contents Signs and symbols ......................18 Product information ......................18 Manufacturer´s data ....................... 18 Machine identification ..................... 18 Technical data ........................ 19 Noise emission specifications ..................20 Vibration specifications ....................20 Scope of supply ......................20 Safety devices ........................ 21 Use according to intended purpose ................ -
Page 6: Signs And Symbols
KSS 300: Art.-No. 916701, 916702, 916720, 916721, 916722, 916725, 916730, 916731, 916732, 916733, 916735 2.1 Manufacturer´s data MAFELL AG, Beffendorfer Straße 4, D-78727 Oberndorf / Neckar, Phone +49 (0)7423/812-0, Fax +49 (0)7423/812-218 2.2 Machine identification All details required for machine identification are available on the attached rating plate. -
Page 7: Technical Data
2.3 Technical data KSP 40 Flexistem Universal motor, radio and TV 230 V~, 50 Hz 110 V~, 50 Hz interference suppressed Power input (nominal load) 900 W 1000 W Current at nominal load 4,1 A 9,1 A Saw blade speed during idling... -
Page 8: Noise Emission Specifications
2.5 Vibration specifications The typical hand-arm vibration is less than 2.5 m/s 2.6 Scope of supply Portable circular saw KSP 40 Flexistem complete with: 1 carbide tipped circular saw blade Ø 120 mm, 24 teeth 1 riving knife/splitter (thickness 1.2 mm/3/64 in.) -
Page 9: Safety Devices
- Hose connector - Snapping open of the FLEXI rail if used improperly. 2.8 Use according to intended purpose The KSP 40 Flexistem / KSS 300 is exclusively suited Safety instructions for longitudinal and cross cutting of solid wood. Danger... - Page 10 Do not use: the saw from the workpiece or to pull it backwards while the saw blade is still moving or while a - Cracked and misshapen saw blades. backlash could occur. - Saw blades made of high speed steel (HSS saw - If you would like to restart a saw that is stuck in the blades).
-
Page 11: Setting / Adjustment
Pull the power plug during all important safety factor. service work. - Only original MAFELL spare parts and accessories Press the locking bolt 8 (Fig. 2). may be used. Otherwise the manufacturer will not accept any warranty claims and cannot be held ... -
Page 12: Switching On And Off
5.2 Switching on and off Release the clamping lever 5 (Fig. 1). Switching on: First press the switch-on lock 1 Reset the plunge lever 6 (Fig. 2). (Fig. 1) and then press the switch trigger 2. Open the retractable saw guard with the lever 2 ... -
Page 13: Sawing Shadow Gaps
Switch on the machine and push the machine MAFELL machines are designed to be low in evenly in cutting direction, in addition using the maintenance. extraction device. The ball bearings used are greased for life. When the 5.8 Sawing with the parallel stop... -
Page 14: Troubleshooting
Determining the causes for existing defects and eliminating these always requires increased attention and caution. Pull the mains plug beforehand! Some of the most frequent defects and their causes are listed in the following chart. In case of other defects, contact your dealer or the MAFELL customer service. Defect Cause... -
Page 15: Optional Accessories
Order No. 919715 - Extraction device S 35 M Order No. 919701 - guiding device S Order No. 208169 Exploded drawing and spare parts list The corresponding information in respect of spare parts can be found on our homepage: www.mafell.com -27-...
