Summary of Contents for Eglo NEVIS 202748

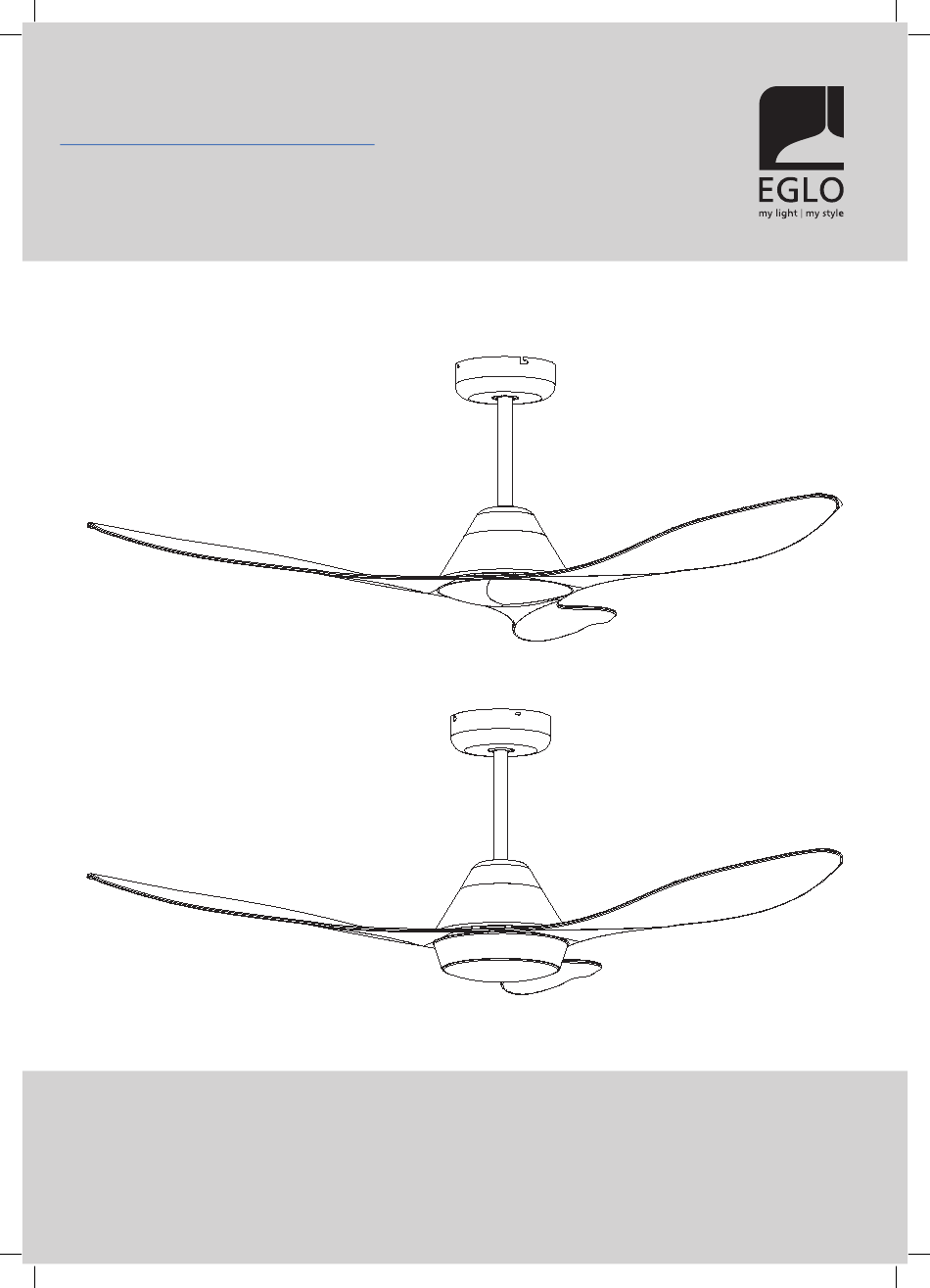

- Page 1 Distributed by: Reduction Revolution Pty Ltd www.reductionrevolution.com.au/ceiling-fans 202748 202749 202751 202752 NEVIS Ceiling Fan 202748 Installation Manual 202749 Use & Care Guide 202751 Warranty Information 202752 NEVIS Ceiling Fan...
- Page 2 EGLO Lighting has a policy of continual product improvement and development, dimensions, hardware and designs may change to reflect this policy. EGLO reserves the right to discontinue or change product specifications & designs at any time without notice and without incurring obligations.
-
Page 3: Table Of Contents
Reduction Revolution Pty Ltd www.reductionrevolution.com.au/ceiling-fans Thank you for purchasing your new EGLO ceiling fan. To ensure a safe and successful installation, please make sure to read this manual, ensure it is on hand for your installer to refer to, and keep in a safe place for future reference. -
Page 4: For Your Safety
17. This fan is designed for use indoors only. 18. EGLO lighting will not be liable for any advice given to the consumer from any of our suppliers or third parties, related or otherwise. 19. Proper performance relies on the right fan being correctly installed in the optimum location. Fans that do not perform as expected and which are not faulty cannot be replaced or exchanged under warranty. -
Page 5: Before Installation
Refer to Figure 2. 4. Many EGLO fans are designed for indoor use, though they can also be installed in appropriately covered outdoor locations. If you are installing your fan in a covered outdoor area, you must ensure that it cannot be exposed to direct rain, water, and sunlight. Ensure that it is located at least 1.5m from the edge of the roof/eaves. -
Page 6: Installing The Hanging Bracket
INSTALLING THE HANGING BRACKET: Install the hanging bracket to the ceiling joist or timber support with the long installation screws provided. Pass the screws through the slotted holes in the hanging bracket and secure to the ceiling. Refer to Fig. 3 Ensure that at least 30mm of the screw is threaded into the ceiling joist or timber support. -
Page 7: Wiring Connections
Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 9 Fig. 8 Fig.10 Hanger bracket Registration slot WIRING CONNECTIONS: WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST ONLY BE UNDERTAKEN BY A QUALIFIED AND LICENSED ELECTRICIAN. Note: For safe use of this fan, and all-pole disconnection MUST be incorporated into the fixed wiring in accordance with the wiring rules. As outlined in clause 7.12.2 of AS/NZS 60335-1 for meeting the minimum electrical safety of this standard. -
Page 8: Operating Your Remote Control
Your fans natural movement can cause screws to loosen. Every 6 months, check that ALL screws are securely tightened with a screwdriver. All EGLO ventilation products should be cleaned regularly to insure against corrosion from salt, dust and moisture, both externally and internal (where allowed and possible). -
Page 9: Ripple Control
RIPPLE CONTROL: Your NEVIS ceiling fan is supplied with a Signal Filter included – Why? Electricity distributors through Australia, particularly areas of NSW and QLD use a ripple control signal on their distribution networks to remotely control demand devices like off-peak hot water heaters, and to implement differential tariffs. Ripple control adds a high frequency signal on top of the standard Australian 240V AC 50Hz power supply, and some electrical appliances can be sensitive to this high frequency signal. -
Page 10: Trouble Shooting Checklist
If the measurements are different; Check that the blade screws are not overly tightened, or loose, causing the tip of the blade to be unlevelled. Out of shaped blades can unbalance the fan and cause wobble. Check by removing all blades and stacking on a flat level surface, and ensure all blades are a uniform shape. -
Page 11: Warranty Claims On Installed Products
Subject to “Your Consumer Rights“ outlined above, but otherwise to the maximum extent permitted by law, EGLO will not be liable for any consequential or indirect loss or damage suffered or incurred by you in relation to an EGLO product, including but not limited to loss of use, loss or damage for business interruption, or profits. -
Page 12: Warranty Transfer
The product is deemed to be a non- EGLO product. There is nothing wrong with the EGLO product or to the extent that the failure is not a failure of the product to perform in accordance with its published features and specifications as reasonably determined by EGLO. -
Page 13: Commercial Use
15. The cost of renting, obtaining and using special access equipment (i.e. scaffoldings, scissor lifts, etc.) for accessing products installed at a height of greater than 3.0 meters. 16. Travelling costs incurred by EGLO personnel or service agents traveling greater than 25 Km from an EGLO service agent base. The purchaser must meet these traveling costs. -
Page 14: Warranty Conditions
EGLO retailer where the product was purchased. To the maximum extent permitted by law, the customer must bear the costs and expenses of claiming under this warranty, including but not limited to the cost incurred in freight, postage, handling, travel, dismantling or reinstalling the product. -
Page 15: Remote Control
EGLO USE ONLY Date: Electrican: Quote No.: Cost to Rectify: Approved By: Signed: Please email this form, together with a copy of your purchase receipt, and installers invoice to EGLO LIGHTING: warranty@eglolighting.com.au, or call 1800 254 448 for assistance. NEVIS Ceiling Fan... - Page 16 Distributed by: Reduction Revolution Pty Ltd www.reductionrevolution.com.au/ceiling-fans EGLO LIGHTING AUSTRALIA 5/339 Archerfield Road Richlands Queensland 4077 www.eglo.com/australia NEVIS Ceiling Fan...
