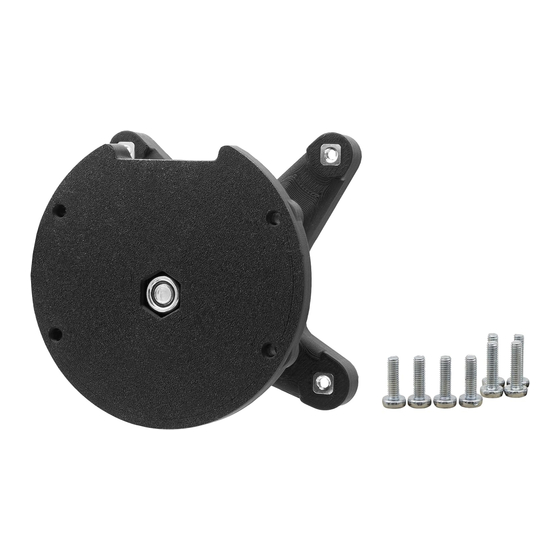

smsng-g7 VESA adapter
Assembly
instructions
The VESA adapter is compatible with Samsung (samsung.com) Odyssey G7 series
monitors and other models:
C27G73TQSR, C32TQSR, C49HG90DMN, C49HG90DMR, C49HG90DMU,
LC27G74TQSR, LC27HG70, LC32G75T, LC49RG90, LC49RG94SSRXZG,
LF49HG90DMU, LS28AG702NU, LS49A950UIU
The VESA adapter allows you to conveniently mount your SAMSUNG brand monitor
to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws
and nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws
and dowels. (not included in the scope of delivery).
www.3idee.eu

Advertisement

Table of Contents
loading

Related Manuals for 3idee smsng-g7

Summary of Contents for 3idee smsng-g7

  • Page 1 VESA adapter Assembly instructions The VESA adapter is compatible with Samsung (samsung.com) Odyssey G7 series monitors and other models: C27G73TQSR, C32TQSR, C49HG90DMN, C49HG90DMR, C49HG90DMU, LC27G74TQSR, LC27HG70, LC32G75T, LC49RG90, LC49RG94SSRXZG, LF49HG90DMU, LS28AG702NU, LS49A950UIU The VESA adapter allows you to conveniently mount your SAMSUNG brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm).

  • Page 2: Important Safeguards

    Assembly instructions Important Safeguards Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should also always be given. Failure to follow these instructions may result in injury or damage to people and the product, for which we cannot accept any liability.

  • Page 3: Waste Disposal

    For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area. 4. Manufacturer Information 3idee Technologies S.à r.l. 5 Um Lenster Bierg L-6125 Junglinster Luxembourg 5.

  • Page 4: Scope Of Delivery Accessories

    Assembly instructions Scope of Delivery Accessories 4x M4x14 cross recessed screw 4x M4x20 cross recessed screw 4x K washer for M4 (SP20) (SP2) (SP14)

  • Page 5: Horizontal Mounting

    Assembly instructions Horizontal / Vertical Alignment Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly. We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.
  • Page 6 Assembly instructions Assembly Instruction as Video...

  • Page 7: Assembly Instruction

    Please use the supplied washers to connect the VESA adapter to the monitor. Step 3 Now screw the 3idee VESA adapter to your Samsung monitor as shown using the 4 included M4x20 screws(screw bag: SP14) and the washers(screw bag: SP20)
  • Page 8 Assembly instructions Step 5 For this step we recommend a 2nd person. Now lift the monitor and hold it to your monitor mount. Fasten the VESA adapter with the 4 included M4x14 screws (screw bag: SP2). It is best to fasten 2 screws diagonally first, so that the monitor cannot fall down and you can fasten the remaining screws without any effort.
