CareCo 8D03030003 Usage And Maintenance Instructions

CareCo 8D03030003 Usage And Maintenance Instructions

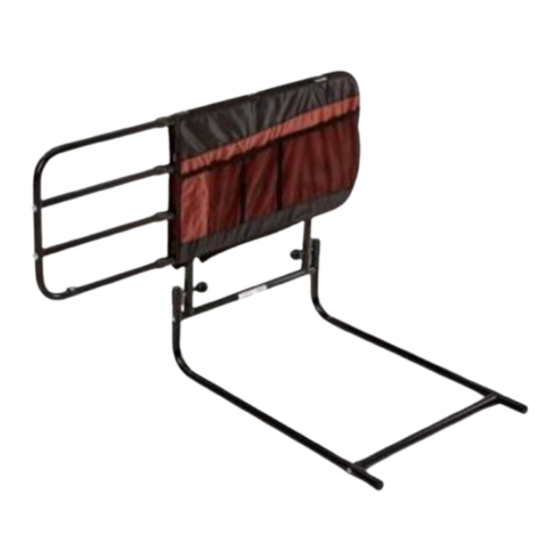

Flexus adjustable bed rail

Advertisement

Quick Links

/
CareCo
No.
Part Name
Inner Tube
1
Plastic Curved Gasket
2
Iron Arc Gasket
3
Pan Head Hexagonal Screw
4
Supporting Foot - Left
5
6
Cross Tube
STEP1.
Insert part 7 into part 5. Feed part 4
through parts 3, 5 and 2. Hold part 1
by hand. Use the hex wrench to lock
part 4. Assemble part 1 and part 6 as
above.
www.careco.co.uk
Usage and Maintenance Instructions
Flexus Adjustable Bed Rail
Quantity
1
4
4
4
1
1
1 Turing Court, Great Notley, Braintree, CM77 7AT, England
No.
Part Name
7
Safety Belt (Short)
Main Frame
8
9
Supporting Foot - Right
Telescopic Inner Tube Set
10
Telescopic Outer Tube Set
11
Safety Belt (Long)
12
4
5
STEP2.
Insert part 1 into part 8 and insert part
7 (seat belt) into part 9. Assemble
part 8 according to the method of
STEP 1. Lock all screws tightly.
8D03030003
-
Quantity
1
1
1
1
1
1
