Table of Contents
No.
Part Name
1
Inner Tube
2
Plastic Curved Gasket
3
Iron Arc Gasket
4
Pan Head Hexagonal Screw
5
Supporting Foot - Left
6
Cross Tube
STEP 1.
Insert part 7 into part 5. Feed part 4
through parts 3, 5 and 2. Hold part 1
by hand. Use the hex wrench to lock
part 4. Assemble part 1 and part 6 as
above.
www.careco.co.uk
Usage and Maintenance Instructions

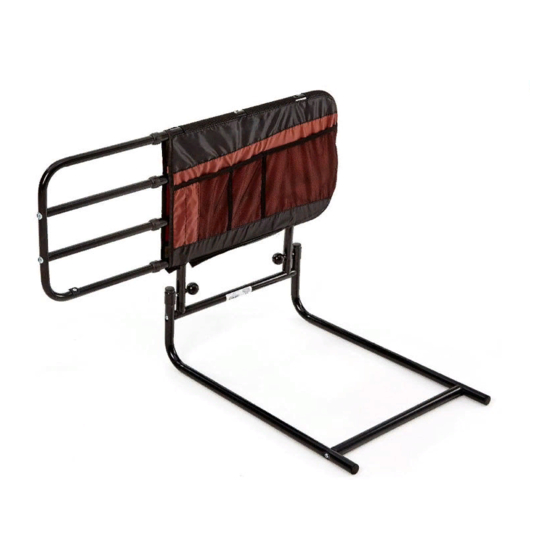

Flexus Adjustable Bed Rail - BD06022
Quantity
1
4
4
4
1
1
CareCo, Hubert Road, Brentwood, Essex, CM14 4JE
No.
Part Name
7
Safety Belt (Short)
8
Main Frame
9
Supporting Foot - Right
10
Telescopic Inner Tube Set
11
Telescopic Outer Tube Set
12
Safety Belt (Long)
STEP 2.
Insert part 1 into part 8 and insert part
7 (seat belt) into part 9. Assemble
part 8 according to the method of
STEP 1. Lock all screws tightly.
Quantity
1
1
1
1
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CareCo BD06022
Summary of Contents for CareCo BD06022
- Page 1 Usage and Maintenance Instructions Flexus Adjustable Bed Rail - BD06022 Part Name Quantity Part Name Quantity Inner Tube Safety Belt (Short) Plastic Curved Gasket Main Frame Iron Arc Gasket Supporting Foot - Right Pan Head Hexagonal Screw Telescopic Inner Tube Set...
- Page 2 Usage and Maintenance Instructions Flexus Adjustable Bed Rail - BD06022 STEP 3. Press part 10 into the marble and insert into part 11. Adjust the marble to the appropriate hole position. Insert part 12 into part 7. Bind the mattress with part 12 to complete assembly.
